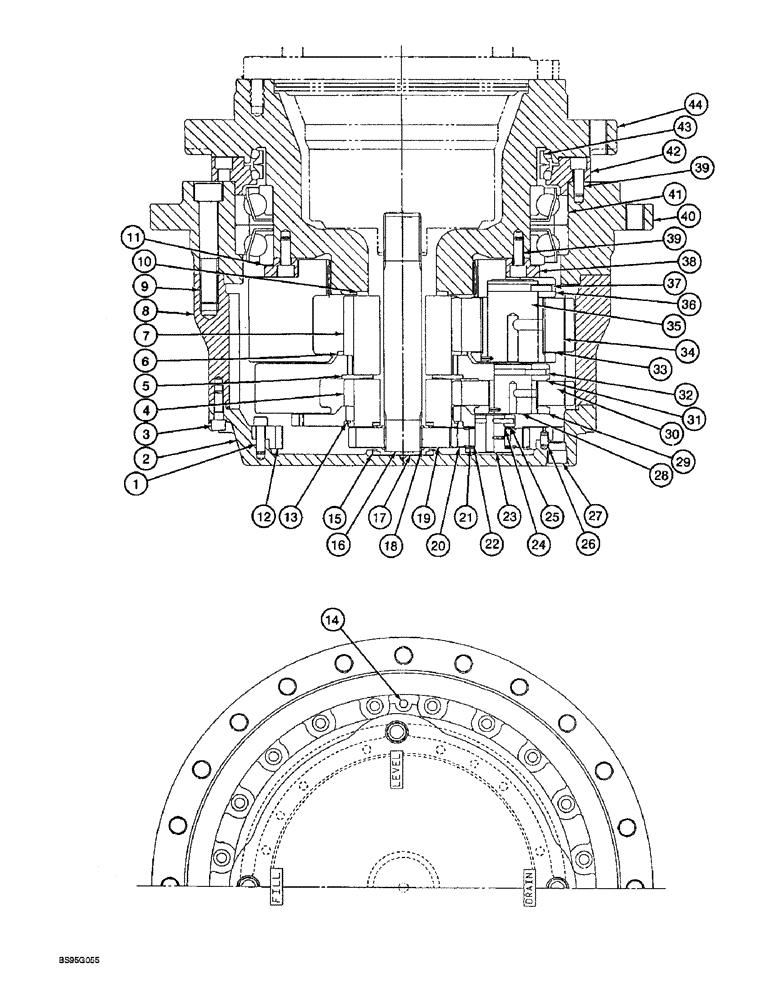

Запчасти Case 9060B (6-04) - FINAL DRIVE TRANSMISSION (06) - POWER TRAIN

163897A1

MOTO-REDUCTION GEAR

TRANSMISSION ASSEMBLY - final drive, includes: Refs. 1 - 44

1шт.

1

862-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

SCREW- hex socket, 12 - 1.75 x 30 mm, class 12.9, Ring gear

12шт.

2

163931A1

COVER

- side

1шт.

3

862-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 40 mm, class 12.9, Side cover

20шт.

4

163908A1

GEAR

- sun, number 2

1шт.

5

163918A1

PLATE

- thrust, number 2

1шт.

6

163919A1

PLATE

- thrust, number 3

1шт.

7

163909A1

GEAR

- sun, number 3

1шт.

8

163900A1

GEAR

- ring, number 2, number 3

1шт.

9

163932A1

BOLT,Hex Skt

BOLT - hex socket, housing

24шт.

10

163920A1

PLATE

- thrust, number 4

1шт.

11

163928A1

SHIM

- plate, 1.1 mm (.043 inch) thick

1шт.

12

163930A1

GEAR

- ring, number 1

1шт.

13

163924A1

RING

- snap

1шт.

14

878-11225

SET SCREW,Hex Skt, M12 x 25mm, Cup Pt

hex socket, 12 - 1.75 x 25 mm, Cup Pt

2шт.

15

163917A1

PLATE

- thrust, number 1

2шт.

16

163906A1

SHAFT

- drive, gear

1шт.

17

163929A1

SHIM

- plate, 0.5 mm (.019 inch) thick

1шт.

18

800-1150

SNAP RING,M50, Ext

RING - external retaining, No. 50, gear

2шт.

19

163907A1

GEAR

- sun, number 1

1шт.

20

163910A1

GEAR

- planetary, number 1

3шт.

21

163921A1

PLATE

- thrust, number 1, planetary gears, number 1

6шт.

22

163927A1

NEEDLE BEARING,39 mm ID x 55 mm OD x 25 mm

BEARING - needle, planetary gears, number 1

3шт.

23

163913A1

PIN

SHAFT - gear, planetary, number 1

3шт.

24

738-1620

LOCK PIN,6mm OD x 20mm L, Slotted

PIN - roll, 6 x 20 mm

3шт.

25

163903A1

HOUSING

CARRIER - planetary gear, number 1

1шт.

26

151627A1

PIN

- dowel, ring gear number 1

4шт.

27

150829A1

PLUG

- port, side cover

3шт.

28

163914A1

PIN

SHAFT - gear, planetary, number 2

3шт.

29

163904A1

HOUSING

CARRIER - planetary gear, number 2

1шт.

30

163911A1

GEAR

- planetary, number 2

3шт.

31

163922A1

PLATE

- thrust, number 2, planetary gears, number 2

6шт.

32

738-1828

LOCK PIN,M8 x 28, Slotted

PIN - roll, 8 x 28 mm

3шт.

33

163923A1

PLATE

- thrust, number 3

8шт.

34

163912A1

GEAR

- planetary, number 3

4шт.

35

163915A1

PIN

SHAFT - gear, planetary, number 3

4шт.

36

163905A1

CARRIER

- planetary gear, number 3

1шт.

37

838-51028

LOCK PIN,M10 x 28, Slotted

PIN - roll, 10 x 28 mm

4шт.

38

163916A1

RETAINER

- oil seal

1шт.

39

862-14035

HEX SOC SCREW,M14 x 35mm, Cl 12.9

SCREW - hex socket, 14 - 2.0 x 35 mm, class 12.9, Retainer

48шт.

40

163901A1

HOUSING

- bearing

1шт.

41

163925A1

BALL BEARING,340 mm ID x 440 mm OD x 52 mm

BEARING - ball

2шт.

42

163902A1

RETAINER

- oil seal

1шт.

43

163926A1

SEAL

- floating, includes face seal and O-ring

1шт.

44

163899A1

HOUSING

- final drive transmission

1шт.
