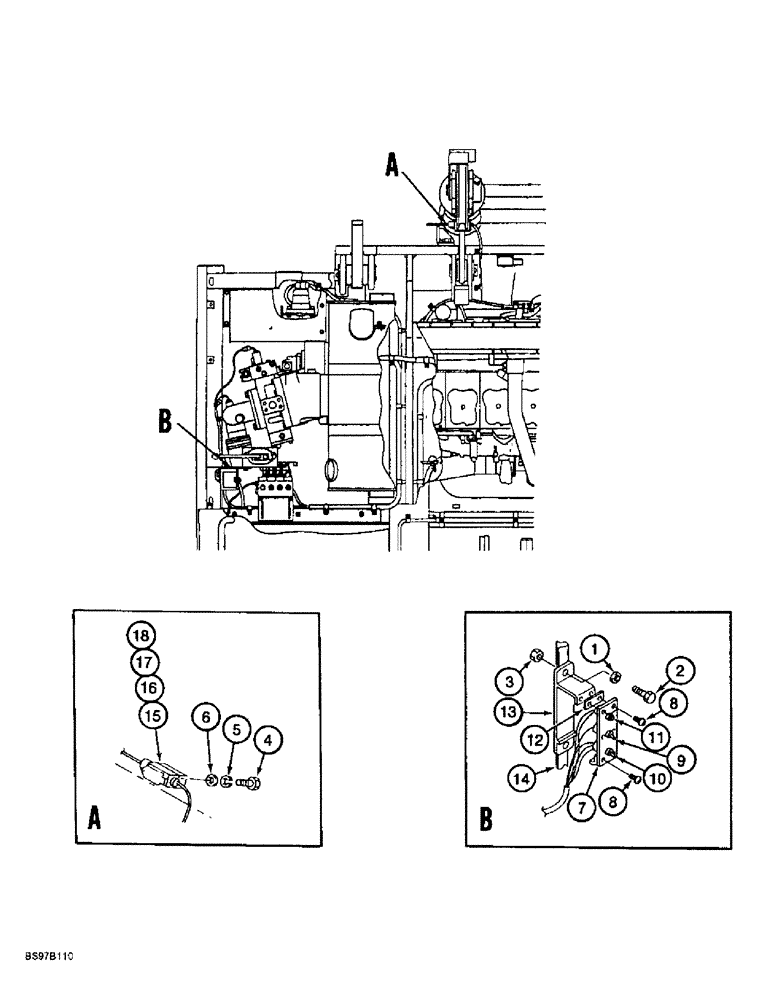

Запчасти Case 9060B (4-38) - ELECTRICAL PARTS FOR COUNTERWEIGHT REMOVAL (04) - ELECTRICAL SYSTEMS

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

6шт.

4

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

4шт.

5

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

7

150639A1

PANEL ASSY.

PANEL - toggle switch mounting

1шт.

8

150875A1

SCREW,Phil Truss Hd, M4 x 12mm

- special

6шт.

9

150655A1

SWITCH

- toggle

1шт.

10

150651A1

SWITCH

- toggle

1шт.

11

150620A1

LAMP

- pilot

1шт.

12

150642A1

PACKING

DAMPER - vibration, rubber

1шт.

13

150636A1

BOX

- switch

1шт.

14

170805A1

PLATE

- mounting, switch, if used

1шт.

151125A1

SWITCH

ASSEMBLY - limit, includes: Refs. 15 - 18

1шт.

15

152216A1

SWITCH

- limit

1шт.

16

150660A1

KIT

- switch wiring

1шт.

17

153369A1

PACKING

- rubber

1шт.

18

153370A1

WASHER

WASHER - special

1шт.

3

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

1

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

6шт.
