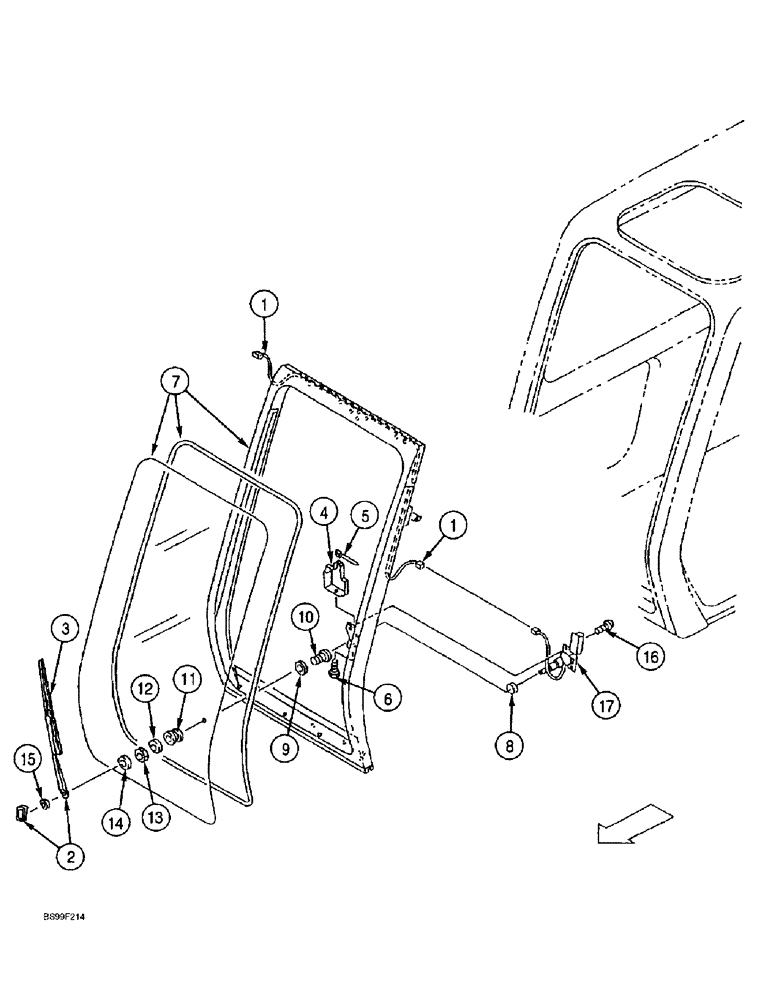

Запчасти Case 9060B (4-36) - WINDSHIELD WIPER (04) - ELECTRICAL SYSTEMS

1

161442A1

HARNESS

- electrical wiring, wiper motor

1шт.

2

164578A1

WIPER ARM

ARM - wiper, windshield

1шт.

3

164579A1

WIPER BLADE

BLADE - wiper, windshield

1шт.

4

161439A1

COVER

- wiper motor

1шт.

5

161440A1

MOUNTING CLIP

STRAP - tie, special

1шт.

6

161441A1

FLANGE BOLT

BOLT - flange, special

1шт.

7

REF

INSTRUCTION

WINDOW ASSEMBLY - cab, front, see Figure 9-62

1шт.

8

164580A1

SPACER

- wiper motor

1шт.

9

164581A1

SPACER

- wiper motor

1шт.

164577A1

WIPER MOTOR

MOTOR - wiper, windshield

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW - retaining, wiper motor

2шт.

9

NSS

NOT SOLD SEPARAT

MOTOR - wiper, includes: Refs. 8 - 17

1шт.

10

168403A1

SUPPORT

ADAPTER - threaded, wiper, Serial Range: motor-glass

1шт.

11

168404A1

WIPER SEAL

PACKING - glass mounting

1шт.

12

168405A1

WASHER

- flat

1шт.

13

168406A1

NUT

- special, adapter retaining

1шт.

14

168407A1

CAP

- packing

1шт.

15

168408A1

NUT

- special, arm retaining

1шт.

16

NSS

NOT SOLD SEPARAT

SCREW - retaining, wiper motor

2шт.

17

NSS

NOT SOLD SEPARAT

MOTOR - wiper

1шт.
