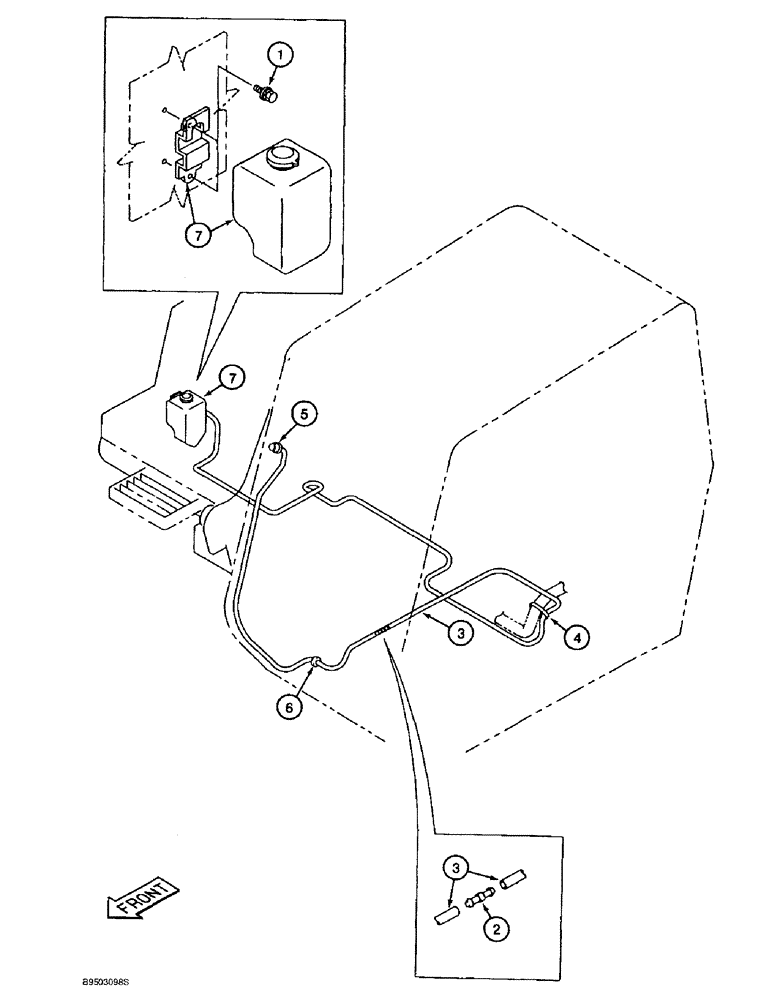

Запчасти Case 9060B (4-34) - WINDSHIELD WASHER (04) - ELECTRICAL SYSTEMS

1

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

2шт.

2

152824A1

ADAPTER

CONNECTOR - special

1шт.

3

171032A1

PLASTIC-RUBBER TUBE

TUBE - vinyl, 5300 mm (208-11/16 inch) long

1шт.

4

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

5

161344A1

DIFFUSER

NOZZLE - special (squirter)

1шт.

See Figure 9-58 for installation of 161344A1 nozzle at front left-hand of cab.

1шт.

6

161363A1

GROMMET

WINDOW ASSEMBLY - cab, front, see Figure 9-62

1шт.

7

161374A1

RESERVOIR ASSY.

RESERVOIR - washer fluid, windshield, includes mounting bracket

1шт.
