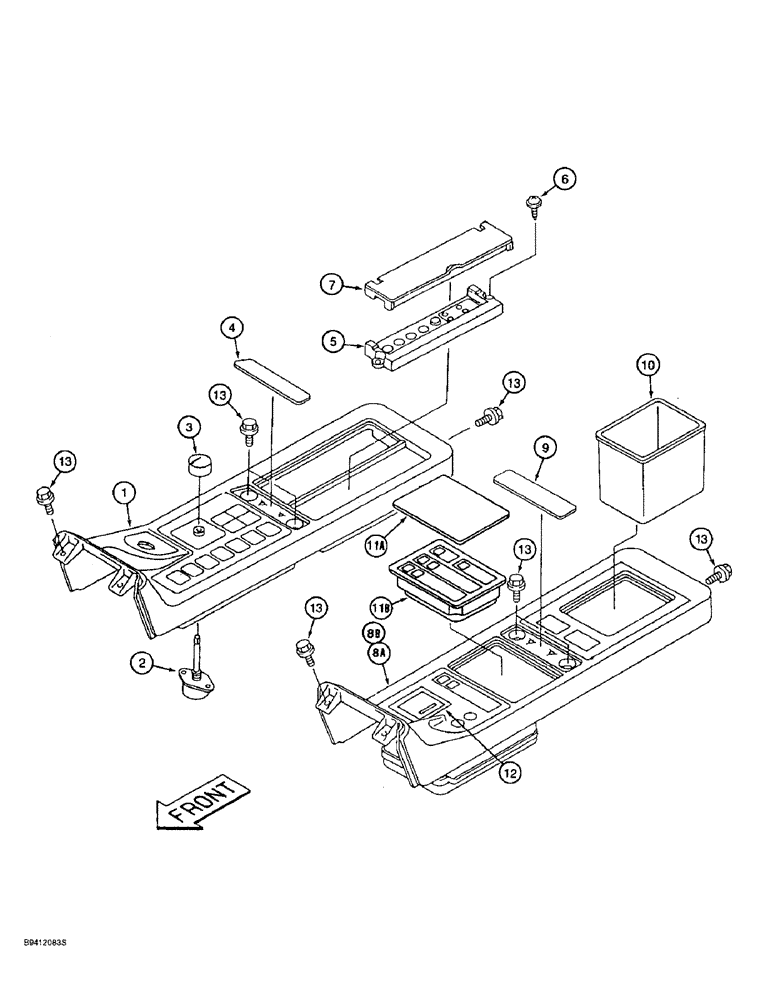

Запчасти Case 9060B (4-32) - RIGHT-HAND AND LEFT-HAND CONSOLE BOX CONTROL PANEL, ASSEMBLIES (04) - ELECTRICAL SYSTEMS

161312A1

CONSOLE

PANEL ASSEMBLY - control, console box, right-hand, includes: Refs. 1 - 7

1шт.

1

162269A1

PANEL ASSY.

PANEL - control, right-hand

1шт.

2

159614A1

THROTTLE SWITCH

SWITCH - engine speed rheostat

1шт.

3

159611A1

BUTTON

KNOB - switch

1шт.

4

159612A1

CAP

PANEL - cover

1шт.

5

159627A1

COVER

PANEL - control, right-hand rear

1шт.

6

159628A1

COVER

- control panel, right-hand rear

1шт.

7

162161A1

SCREW

- special

2шт.

163511A1

PANEL

ASSEMBLY - control, console box, left-hand, machines with heater but no air conditioning, includes: Refs. 8A - 13

1шт.

7a

KHR3214

HARNESS

ignition switch, not shown

1шт.

163512A1

PANEL

ASSEMBLY - control, console box, left-hand, machines with heater and with air conditioning, includes: Refs. 8A - 13

1шт.

8a

162270A1

PANEL ASSY.

PANEL - control, left-hand, machines with heater but no air conditioning

1шт.

8b

162272A1

PANEL ASSY.

PANEL - control, left-hand, machines with heater and air conditioning

1шт.

9

159613A1

CAP

PANEL - cover

1шт.

10

164145A1

BOX

- plastic

1шт.

11a

159936A1

COVER

PANEL - cover, machines with neither heater nor air conditioning

1шт.

11b

162273A1

PANEL

- switch, with LED indicators, machines with both heater and air conditioning

1шт.

12

162271A1

HOURMETER

- engine operation time

1шт.

13

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

1шт.
