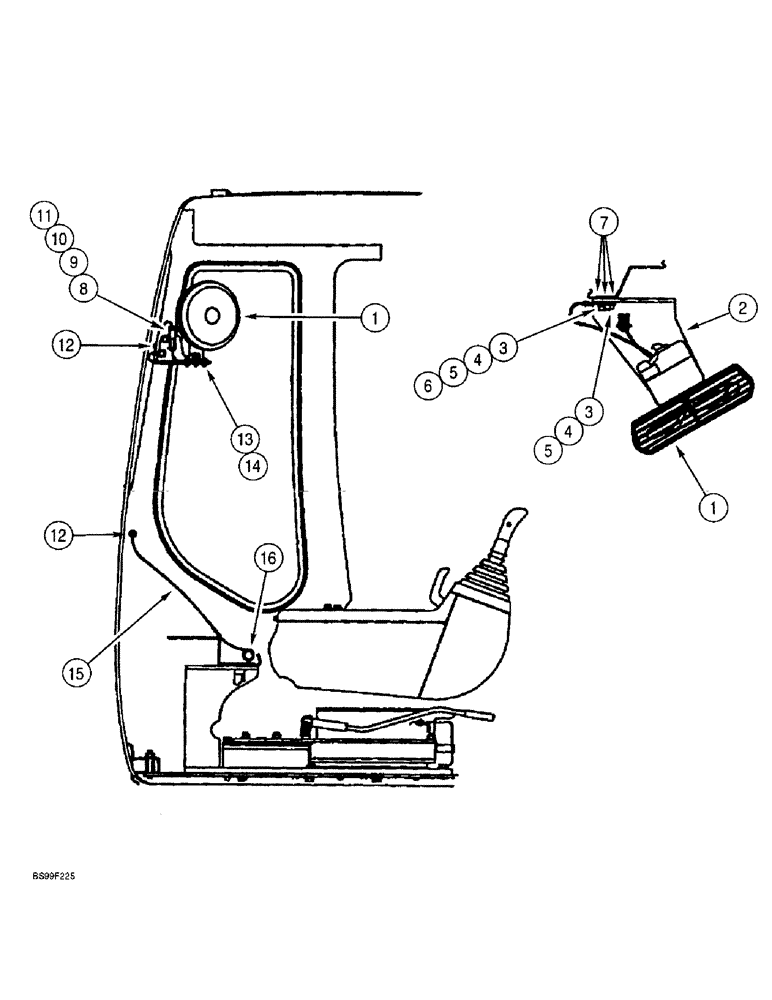

Запчасти Case 9060B (4-25A) - CAB FAN AND MOUNTING, P.I.N. EAC0601040 AND AFTER (04) - ELECTRICAL SYSTEMS

1

171610A1

FAN

ASSEMBLY - cab

1шт.

2

171611A1

PLATE

BRACKET - mounting, fan

1шт.

3

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

5

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

6

223-60

CONNECTOR, ELEC

TERMINAL - straight eyelet, SAE No. B106, 5/16 inch

1шт.

7

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, Ext Tooth, M8

3шт.

8

182064A1

CONNECTOR, ELEC

CONNECTOR - electrical

1шт.

9

225124C1

SEAL,2 - 2.9 mm2

CONNECTOR - electrical

1шт.

10

182157A1

ELEC CONNECTOR

PIN - terminial

1шт.

11

182067A1

CONNECTOR, ELEC

LOCK - connector

1шт.

12

159951A1

GROMMET

- rubber

2шт.

13

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips, No. 10 NC x 3/4 inch, fan mounting

3шт.

14

231-14409

NUT,#10-24, GB

NUT - hex, self-locking, No. 10 NC

3шт.

15

171613A1

HARNESS

- electrical wiring, cab fan

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.
