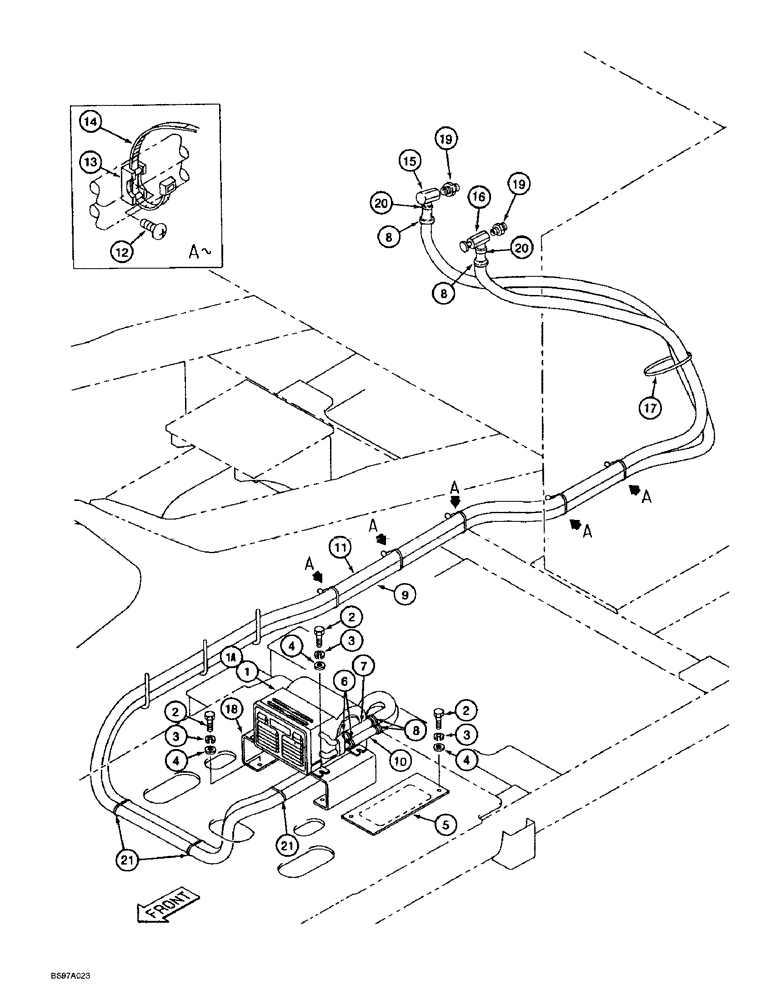

Запчасти Case 9060B (4-22) - CAB HEATER AND HOSES, *P.I.N. EACO601026 TO EAC0601032 (04) - ELECTRICAL SYSTEMS

1

152815A1

HEATER,Assembly, Cab

HEATER - cab, individual parts are not serviced separately, includes: Refs. 1A, 1B, 1C and 1D

1шт.

1a

163619A1

MOTOR, ELECTRIC

MOTOR - electric, cab heater blower

1шт.

1b

166058A1

BLOWER

FAN - blower, right-hand, not shown

1шт.

1c

166059A1

BLOWER

FAN - blower, left-hand, not shown

1шт.

1d

163618A1

RESISTOR

- electrical, not shown

1шт.

2

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

10шт.

3

892-11010

LOCK WASHER,M10

10шт.

5

159950A1

COVER

- cab floor

1шт.

6

150384A1

COLLAR

CLAMP - adjustable

4шт.

7

150666A1

HOSE,13.00 mm ID x 6000.00 mm

1шт.

8

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

9

151566A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 5800 mm (228-11/32 inch) long

1шт.

10

150666A1

HOSE,13.00 mm ID x 6000.00 mm

1шт.

11

151566A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 5800 mm (228-11/32 inch) long

1шт.

12

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

5шт.

13

150860A1

COLLAR

BRACKET - support, for tie strap

5шт.

14

170308A1

BAND

STRAP - tie

1шт.

15

171031A1

STEM

- hose

1шт.

16

171030A1

VALVE

- shutoff

1шт.

17

170308A1

BAND

STRAP - tie

1шт.

18

161721A1

SUPPORT

BRACKET - mounting, heater

1шт.

19

171029A1

BUSHING

- reducer

2шт.

20

170328A1

CLAMP

- special, water hose

1шт.

21

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

10шт.
