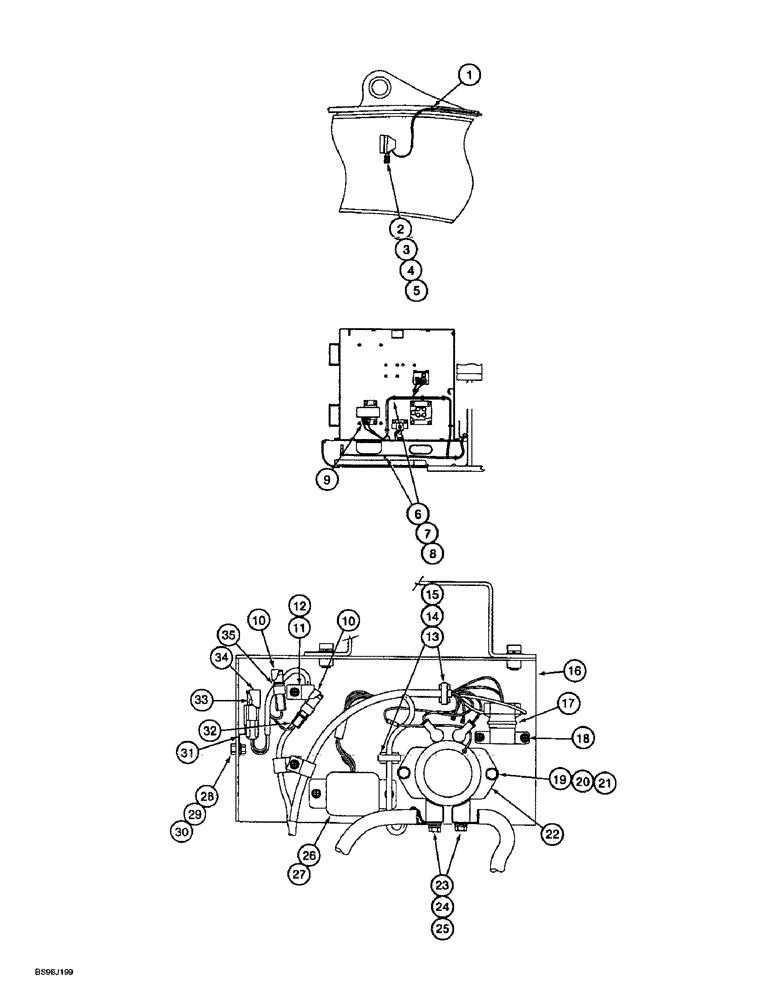

Запчасти Case 9060B (4-15A) - ELECTRICAL PARTS - ABOVE BATTERIES, P.I.N. EAC0601027 AND AFTER (04) - ELECTRICAL SYSTEMS

1

170308A1

BAND

STRAP - tie

1шт.

2

150834A1

BRACKET

- boom, lamp mounting

1шт.

3

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

1шт.

4

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

1шт.

5

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

1шт.

6

170308A1

BAND

STRAP - tie

7шт.

7

150860A1

COLLAR

BRACKET - support

7шт.

8

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

7шт.

9

159599A1

PRESSURE SWITCH

SWITCH - pressure

2шт.

10

170308A1

BAND

STRAP - tie

2шт.

11

515-21159

CLAMP,15.9mm ID, 7.1mm Bolt Hole, P Type

- P-type, 5/8 inch ID

1шт.

12

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

1шт.

13

170308A1

BAND

STRAP - tie

2шт.

14

150860A1

COLLAR

BRACKET - support

2шт.

15

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

2шт.

16

171379A1

CASE

BOX - relay, electrical

1шт.

17

159898A1

RELAY

- starter

1шт.

18

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

2шт.

19

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

- hex, 8 - 1.25 x 35 mm, class 10.9

2шт.

20

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

22

159897A1

RELAY

- battery

1шт.

24

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

26

156501A1

RELAY

- safety

1шт.

27

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

2шт.

28

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm, class 10.9

1шт.

29

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

31

158963A1

CLIP

- wire

1шт.

32

159903A1

FUSE

- 25 amps

1шт.

33

170664A1

FUSE

- 75 amp

1шт.

34

159904A1

COVER

- wire

1шт.

35

159903A1

FUSE

- 25 amps

1шт.

23

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9

2шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

30

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.
