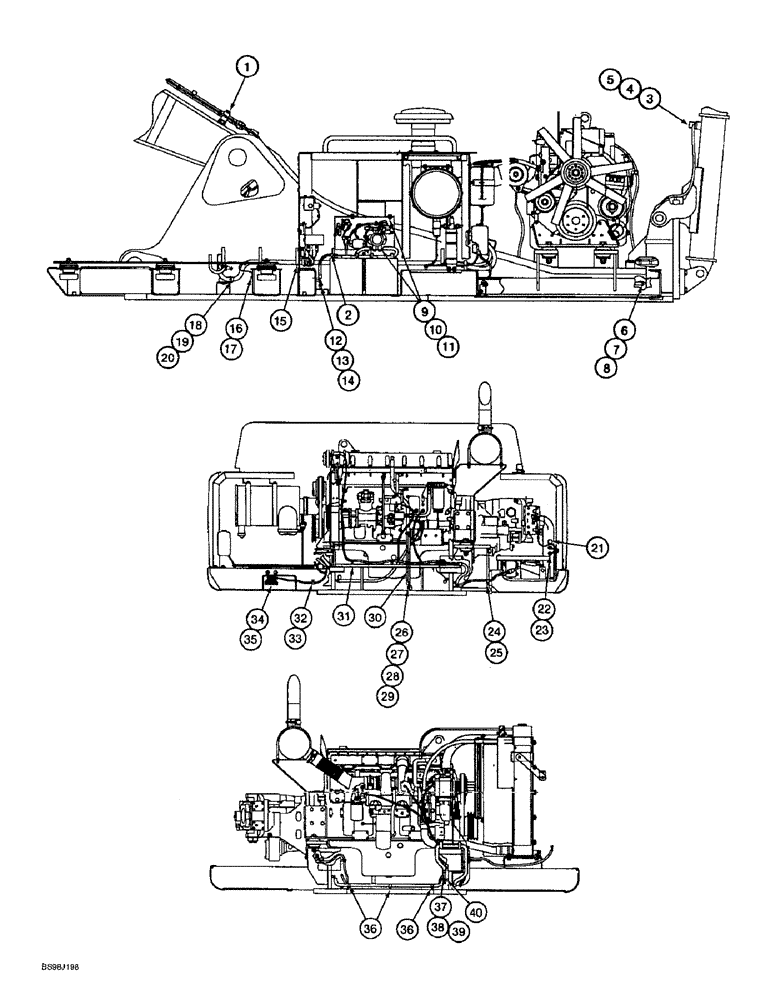

Запчасти Case 9060B (4-13A) - ELECTRICAL PARTS - AT ENGINE & TURNTABLE,CLAMPS,TRAVEL ALARM,SENSORS & HARDWARE,PIN EAC0601027 & AFT (04) - ELECTRICAL SYSTEMS

1

170308A1

BAND

STRAP - tie

1шт.

2

170591A1

CABLE ASSY.

CABLE - battery, special

1шт.

3

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

4шт.

4

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

6

170308A1

BAND

STRAP - tie

1шт.

7

150860A1

COLLAR

BRACKET - support

1шт.

8

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

1шт.

9

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

4шт.

10

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

11

150811A1

WASHER

- flat, special, 12 mm

4шт.

12

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

1шт.

13

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

14

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, Ext Tooth, M8

1шт.

15

159599A1

PRESSURE SWITCH

SWITCH - pressure

1шт.

16

170592A1

HARNESS

WIRE - ground

1шт.

17

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

2шт.

18

173245A1

CLAMP

- tube

1шт.

19

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

1шт.

21

159147A1

SENSOR

- temperature

1шт.

22

163658A1

THERMOSTATIC SWITCH

SWITCH - temperature

1шт.

23

159901A1

SEALING WASHER

WASHER - sealing

1шт.

24

515-21159

CLAMP,15.9mm ID, 7.1mm Bolt Hole, P Type

- P-type, 5/8 inch ID

1шт.

25

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

1шт.

26

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

1шт.

27

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

28

893-11012

LOCK WASHER,Ext Tooth, M12

WASHER, LOCK, Ext Tooth, M12

1шт.

29

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

1шт.

30

173108A1

CABLE

- battery, special

1шт.

31

173107A1

CABLE ASSY.

CABLE - battery

1шт.

32

515-21159

CLAMP,15.9mm ID, 7.1mm Bolt Hole, P Type

- P-type, 5/8 inch ID

1шт.

33

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

1шт.

34

162218A1

ALARM

- travel

1шт.

35

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

2шт.

36

171547A1

CLAMP

- tube

3шт.

37

515-21222

CLAMP,7/8", Insul, 1/4" Bolt

P-type 7/8", Insul, 1/4" Bolt

1шт.

38

171547A1

CLAMP

- tube

1шт.

39

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

1шт.

40

515-21222

CLAMP,7/8", Insul, 1/4" Bolt

P-type 7/8", Insul, 1/4" Bolt

1шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.
