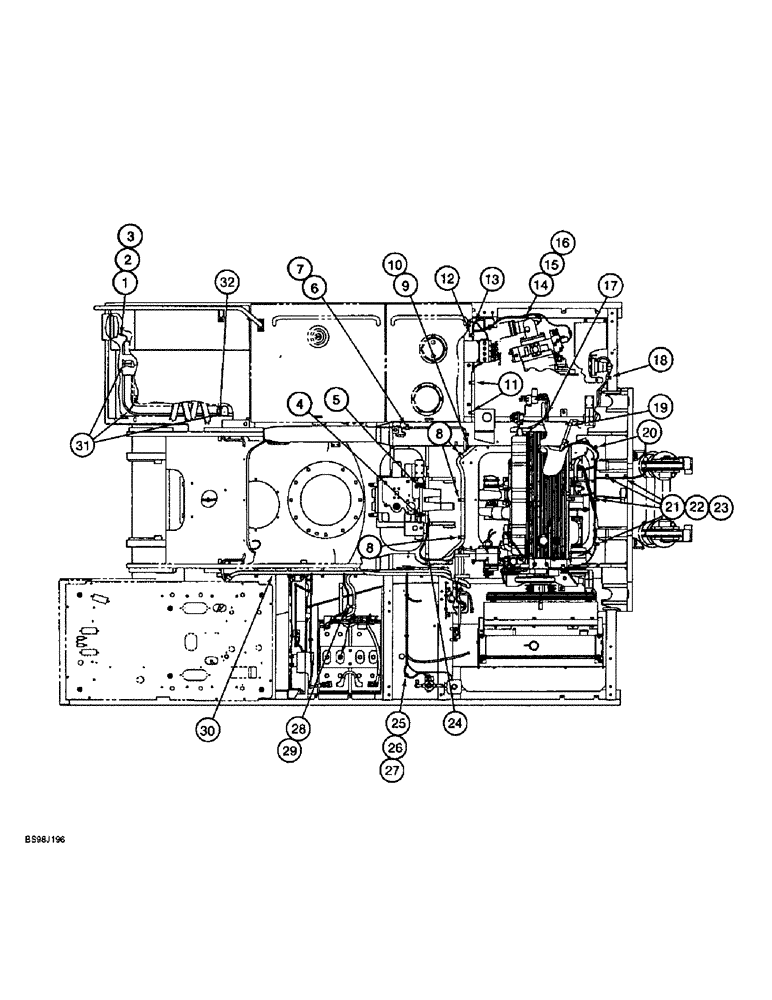

Запчасти Case 9060B (4-10) - ELECTRICAL PARTS OUTSIDE CAB, PRESSURE SWITCHES, RETAINING CLAMPS AND HARDWARE, PIN EAC0601027 & AFT (04) - ELECTRICAL SYSTEMS

1

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

1шт.

4

159900A1

PRESSURE SWITCH

SWITCH - pressure

1шт.

5

159899A1

PRESSURE SWITCH

SWITCH - pressure

1шт.

6

515-21159

CLAMP,15.9mm ID, 7.1mm Bolt Hole, P Type

- P-type, 5/8 inch ID

2шт.

7

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

2шт.

8

171547A1

CLAMP

- tube

3шт.

9

150860A1

COLLAR

BRACKET - support

1шт.

10

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

1шт.

11

515-21222

CLAMP,7/8", Insul, 1/4" Bolt

P-type 7/8", Insul, 1/4" Bolt

2шт.

12

515-21159

CLAMP,15.9mm ID, 7.1mm Bolt Hole, P Type

- P-type, 5/8 inch ID

1шт.

13

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

1шт.

14

170308A1

BAND

STRAP - tie

1шт.

15

150860A1

COLLAR

BRACKET - support

1шт.

16

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

1шт.

17

170308A1

BAND

STRAP - tie

1шт.

18

515-21159

CLAMP,15.9mm ID, 7.1mm Bolt Hole, P Type

- P-type, 5/8 inch ID

2шт.

19

515-21222

CLAMP,7/8", Insul, 1/4" Bolt

P-type 7/8", Insul, 1/4" Bolt

1шт.

20

515-21159

CLAMP,15.9mm ID, 7.1mm Bolt Hole, P Type

- P-type, 5/8 inch ID

1шт.

21

170308A1

BAND

STRAP - tie

4шт.

22

150860A1

COLLAR

BRACKET - support

4шт.

23

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

4шт.

24

515-21159

CLAMP,15.9mm ID, 7.1mm Bolt Hole, P Type

- P-type, 5/8 inch ID

1шт.

25

170308A1

BAND

STRAP - tie

3шт.

26

150860A1

COLLAR

BRACKET - support

3шт.

27

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

3шт.

28

515-21222

CLAMP,7/8", Insul, 1/4" Bolt

P-type 7/8", Insul, 1/4" Bolt

2шт.

29

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

1шт.

30

171341A1

HARNESS

- wire

1шт.

31

170308A1

BAND

STRAP - tie

3шт.

32

153590A1

GROMMET

- rubber

1шт.

3

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

1шт.
