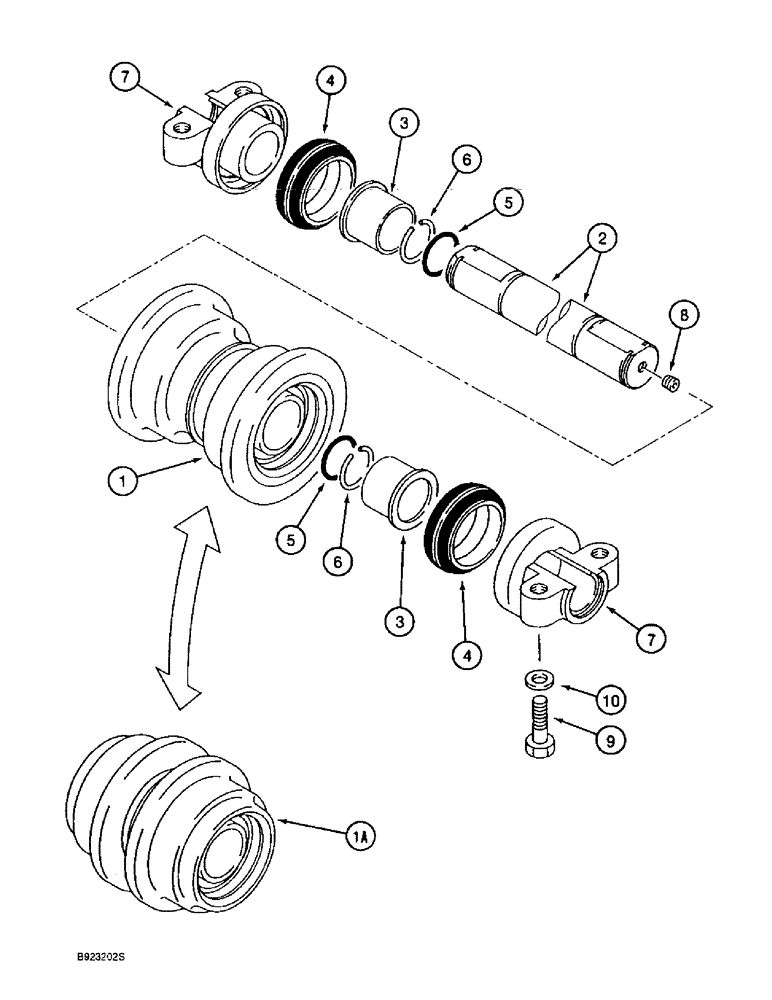

Запчасти Case 9060B (5-12) - TRACK ROLLERS, MANUFACTURED BY INTERTRAC (11) - TRACKS/STEERING

170581A1

ROLLER ASSY.

ROLLER ASSEMBLY - track, with outer flanges, manufactured by Intertrac, includes: Refs. 1 - 8

12шт.

170572A1

ROLLER ASSY.

ROLLER ASSEMBLY - track, with inner flanges, manufactured by Intertrac, includes: Refs. 1 - 8

6шт.

1

NSS

NOT SOLD SEPARAT

HUB - track roller, with outer flanges, for 170581A1 roller assembly

1шт.

1a

NSS

NOT SOLD SEPARAT

HUB - track roller, with inner flanges, for 170572A1 roller assembly

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - roller

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - roller

2шт.

4

170576A1

SEAL

ASSEMBLY - face, includes two rings and two seals, track roller

2шт.

5

170577A1

O-RING

- shaft

2шт.

6

170580A1

CLIP

RING - snap, shaft retaining

2шт.

7

NSS

NOT SOLD SEPARAT

BRACKET - mounting, track roller

2шт.

8

170579A1

PLUG

- port, shaft end

1шт.

9

827-24080

BOLT,Hex, M24 x 3 x 80mm, Cl 10.9

- hex, 24 - 3.0 x 80 mm, class 10.9

72шт.

10

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

- flat, special

72шт.
