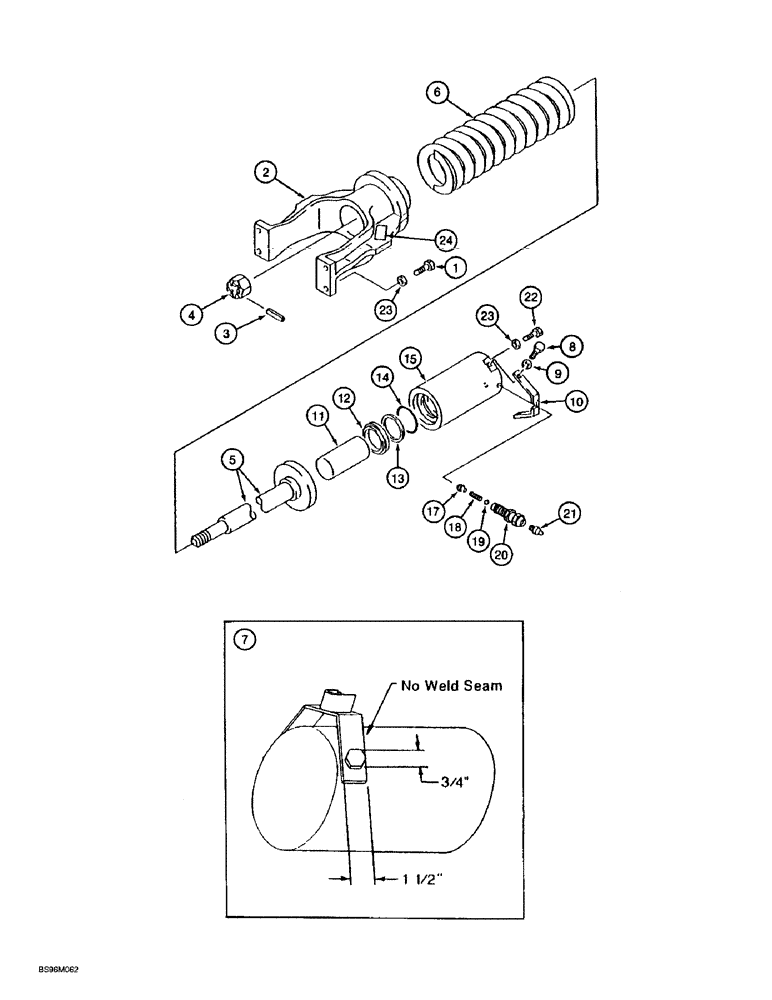

Запчасти Case 9060B (5-08) - TRACK ADJUSTER (11) - TRACKS/STEERING

161572A1

ADJUSTER

ASSEMBLY - track chain tension, includes: Refs. 1 - 24

1шт.

1

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

2

151909A1

FORK

YOKE - track adjuster

2шт.

3

538-816

LOCK PIN,M10 x 100, Slotted

PIN - roll, 10 x 100 mm

2шт.

4

151215A1

NUT

- hex

2шт.

5

151980A1

ROD,THREADED

GUIDE - tension spring

2шт.

6

151986A1

SPRING

- track tension

2шт.

7

151990A1

CYLINDER

ASSEMBLY - track adjuster, non-welded style, includes: Refs. 8 - 21

2шт.

8

628-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

2шт.

9

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

4шт.

10

152138A1

BRACKET

- check valve

2шт.

11

151994A1

JACK PISTON

ROD - piston

2шт.

12

152004A1

SEAL

WIPER - rod

2шт.

13

154160A1

BACK-UP RING

RING - backup, was 151083A1

2шт.

14

154740A1

O-RING

- piston rod

2шт.

15

151999A1

CYLINDER

TUBE - cylinder

2шт.

16

150107A1

LUBE NIPPLE

VALVE - check, includes: Refs. 17 - 21

2шт.

17

150120A1

CAP

POPPET - check valve

2шт.

18

150112A1

VALVE SEAT

BODY - check valve

2шт.

19

150115A1

SPRING

- check valve

2шт.

20

150897A1

BALL

- check

2шт.

21

153630A1

LUBE NIPPLE

FITTING - grease, straight

2шт.

22

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

23

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

12шт.

24

REF

INSTRUCTION

TAG - manufacturer identification

1шт.
