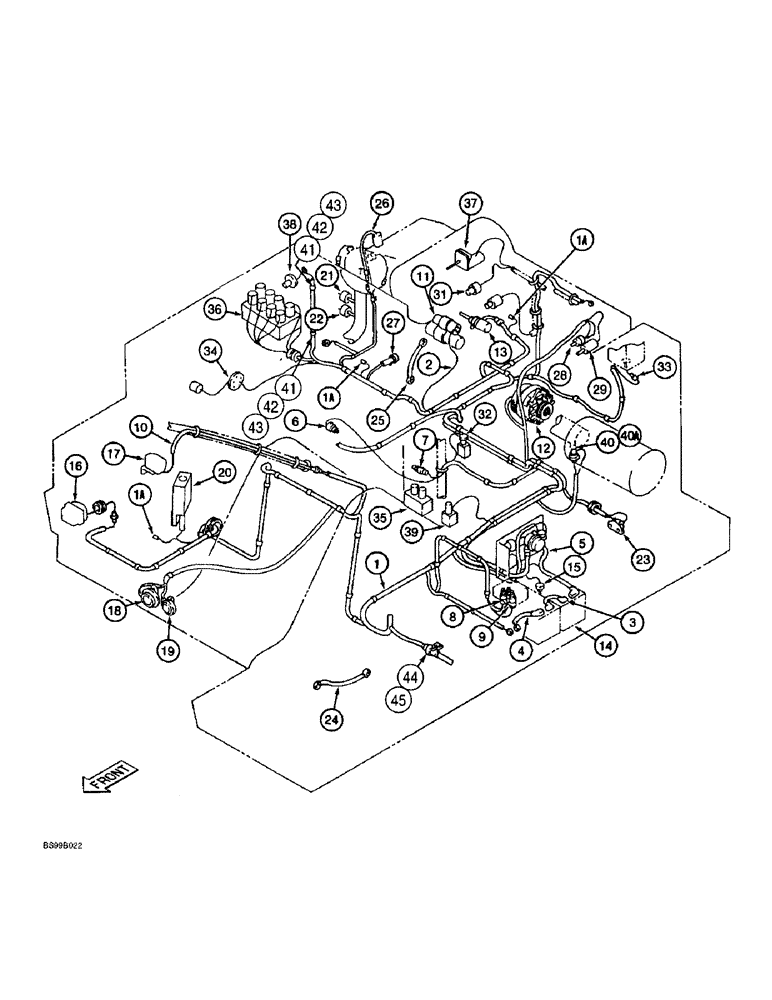

Запчасти Case 9060B (4-06) - ELECTRICAL PARTS OUTSIDE CAB (04) - ELECTRICAL SYSTEMS

1

171341A1

HARNESS

- wire, main electrical, includes: Ref. 1A, Serial Range: EAC0601026-EAC0601039

1шт.

1

171770A1

HARNESS

- wire, main electrical, includes: Ref. 1A, Start Serial: EAC0601040

1шт.

1a

231959A1

DIODE

- electrical

3шт.

2

173107A1

CABLE ASSY.

CABLE - battery, Serial Range: relay-starter

1шт.

3

170590A1

CABLE ASSY.

CABLE -, Serial Range: battery-battery

1шт.

4

170591A1

CABLE ASSY.

CABLE - battery, special, Serial Range: battery-ground

1шт.

5

170589A1

CABLE ASSY.

CABLE - battery, Serial Range: battery-relay

1шт.

6

159900A1

PRESSURE SWITCH

SWITCH - pressure, travel pilot pressure

1шт.

7

159899A1

PRESSURE SWITCH

SWITCH - pressure, upper pilot

1шт.

8

159900A1

PRESSURE SWITCH

SWITCH - pressure, boom up

1шт.

9

159599A1

PRESSURE SWITCH

SWITCH - pressure, boom down and swing

2шт.

10

162579A1

HARNESS

- electrical, boom light

1шт.

11

REF

INSTRUCTION

STARTER ASSEMBLY - see your authorized Cummins engine dealer

1шт.

12

170666A1

ALTERNATOR

- 24 volt, 70 amp

1шт.

13

REF

INSTRUCTION

SOLENOID - see your authorized Cummins engine dealer

1шт.

14

170052A1

DRY BATTERY

- 12 volt, 780 amps

2шт.

15

170051A1

SENSOR

- low electrolyte

1шт.

159600A1

LAMP, WORK

LAMP ASSEMBLY - work

1шт.

16

152809A1

BULB

LAMP - sealed beam

1шт.

159598A1

PORTABLE LAMP

LAMP ASSEMBLY - work

1шт.

17

152812A1

BULB

LAMP - sealed beam

1шт.

18

159948A1

HORN

- electric, see Figure 4-28

1шт.

19

159949A1

HORN

- electric, see Figure 4-28

1шт.

20

161374A1

RESERVOIR ASSY.

RESERVOIR - washer fluid, windshield

1шт.

21

159147A1

SENSOR

- temperature, hydraulic

1шт.

22

163658A1

THERMOSTATIC SWITCH

SWITCH - temperature, hydraulic

1шт.

23

162218A1

ALARM

- travel

1шт.

24

170592A1

HARNESS

WIRE - ground, cab

1шт.

25

173108A1

CABLE

- battery, special, engine ground

1шт.

25a

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9, ground at engine

1шт.

25b

892-11012

LOCK WASHER,M12

WASHER, LOCK, , Not Shown M12

1шт.

25c

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm, Not shown

1шт.

25d

893-11012

LOCK WASHER,Ext Tooth, M12

WASHER, LOCK, , Not shown Ext Tooth, M12

1шт.

26

164539A1

VALVE

ASSEMBLY - proportional

1шт.

27

170673A1

SENSOR

- tachometer

1шт.

28

171279A1

SWITCH

- pressure, engine coolant

1шт.

29

159147A1

SENSOR

- temperature, engine coolant

1шт.

31

170663A1

SWITCH

- oil pressure, engine oil filter bypass

1шт.

32

159205A1

VALVE

ASSEMBLY - solenoid, free swing

1шт.

33

161740A1

SWITCH

- sender, coolant level

1шт.

34

163257A1

SENSOR

SENDER - fuel level

1шт.

35

163731A1

VALVE

ASSEMBLY - swing brake release

1шт.

36

161310A1

VALVE

ASSEMBLY - solenoid, parts list Figure 8-200

1шт.

37

160614A1

MOTOR, ELECTRIC

MOTOR - throttle control

1шт.

37

160614A1R

REMAN-ELECTRIC MOTOR

9060B CASE CRAWLER EXCAVATOR (S/N EAC0601026 & AFTER), ASN EAC0601026 (11/96-)

1шт.

37

160614A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

38

152723A1

PRESSURE SWITCH

SWITCH - pressure, hydraulic reservoir air pressure

1шт.

39

162538A1

VALVE

ASSEMBLY - solenoid, auxiliary pump, parts list Figure 8-204

1шт.

40

150042A1

SENSOR

SWITCH - air restriction indicator, used on machines EAC0601026

1шт.

40a

171355A1

SENSOR

- vacuum, Start Serial: EAC0601027

1шт.

41

150860A1

COLLAR

BRACKET - support

2шт.

42

170308A1

BAND

STRAP - tie

2шт.

43

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

2шт.

44

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

1шт.

45

158962A1

CLIP

- harness

1шт.
