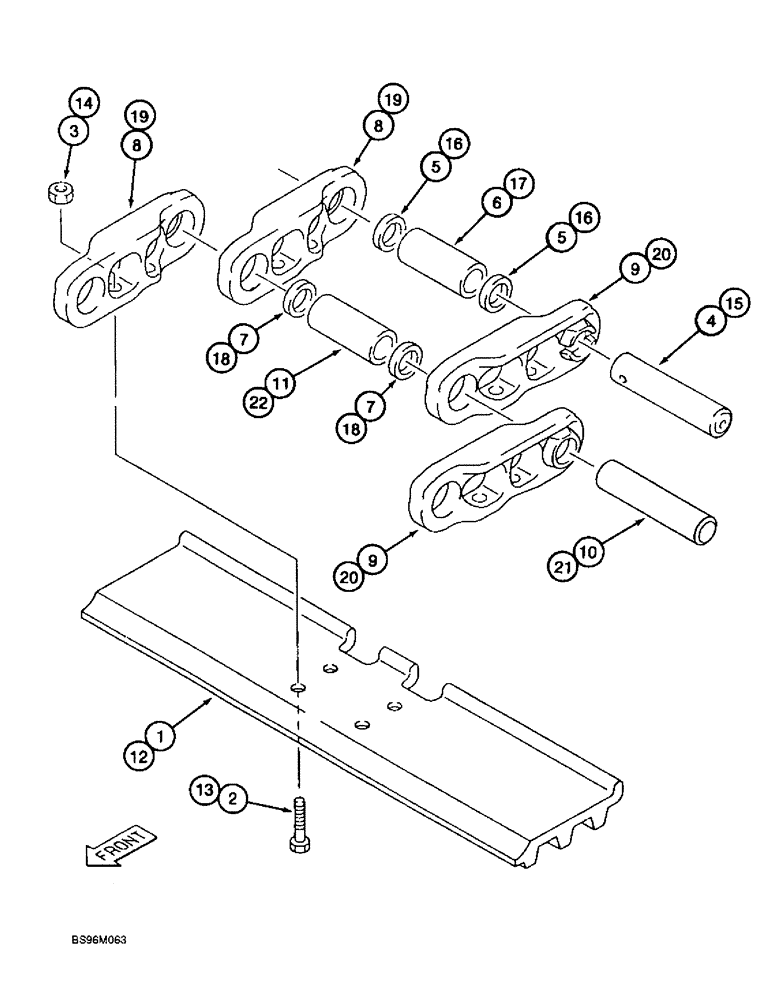

Запчасти Case 9060B (5-04) - TRACK CHAIN AND SHOES, 25 LINK TRACK CHAIN ASSEMBLY (11) - TRACKS/STEERING

170609A1

TRACK CHAIN

CHAIN ASSEMBLY - track, includes track shoes, includes: Refs. 2 - 11

2шт.

1

171337A1

TRACK SHOE

SHOE - track, 900 mm (35-1/2 inch) wide

25шт.

2

171335A1

BOLT

- special, track shoe mounting

100шт.

3

171336A1

NUT

- special, shoe retaining

100шт.

171338A1

TRACK CHAIN

CHAIN ASSEMBLY - track, without track shoes, includes: Refs. 4 - 11

1шт.

4

171332A1

PIN

- track

24шт.

5

171334A1

SEAL

- pin, track

48шт.

6

171330A1

BUSHING

- pin

24шт.

7

173393A1

SPACER

- bushing

2шт.

8

171328A1

LINK

- master, standard

25шт.

9

171329A1

LINK

- master, standard

25шт.

10

171333A1

HEADED PIN

PIN - master

1шт.

11

171331A1

BUSHING

- master

1шт.

170610A1

TRACK CHAIN

CHAIN ASSEMBLY - track, includes track shoes, 26 link, includes: Refs. 12 - 22

2шт.

12

171337A1

TRACK SHOE

SHOE - track, 900 mm (35-1/2 inch) wide, 26 link chain assembly

26шт.

13

171335A1

BOLT

- special, track shoe mounting, 26 link track chain assembly

104шт.

14

171336A1

NUT

- special, shoe retaining, 26 link track chain assembly

104шт.

171339A1

TRACK CHAIN

CHAIN ASSEMBLY - track, without track shoes, 26 link, includes: Refs. 15 - 22

1шт.

15

171332A1

PIN

- track, 26 link chain assembly

25шт.

16

171334A1

SEAL

- pin, track, 26 link chain assembly

50шт.

17

171330A1

BUSHING

- pin, 26 link track chain assembly

25шт.

18

173393A1

SPACER

- bushing, 26 link track chain assembly

2шт.

19

171328A1

LINK

- master, standard, 26 link track chain assembly

26шт.

20

171329A1

LINK

- master, standard, 26 link track chain assembly

26шт.

21

171333A1

HEADED PIN

PIN - master, 26 link track chain assembly

1шт.

22

171331A1

BUSHING

- master, 26 link track chain assembly

1шт.
