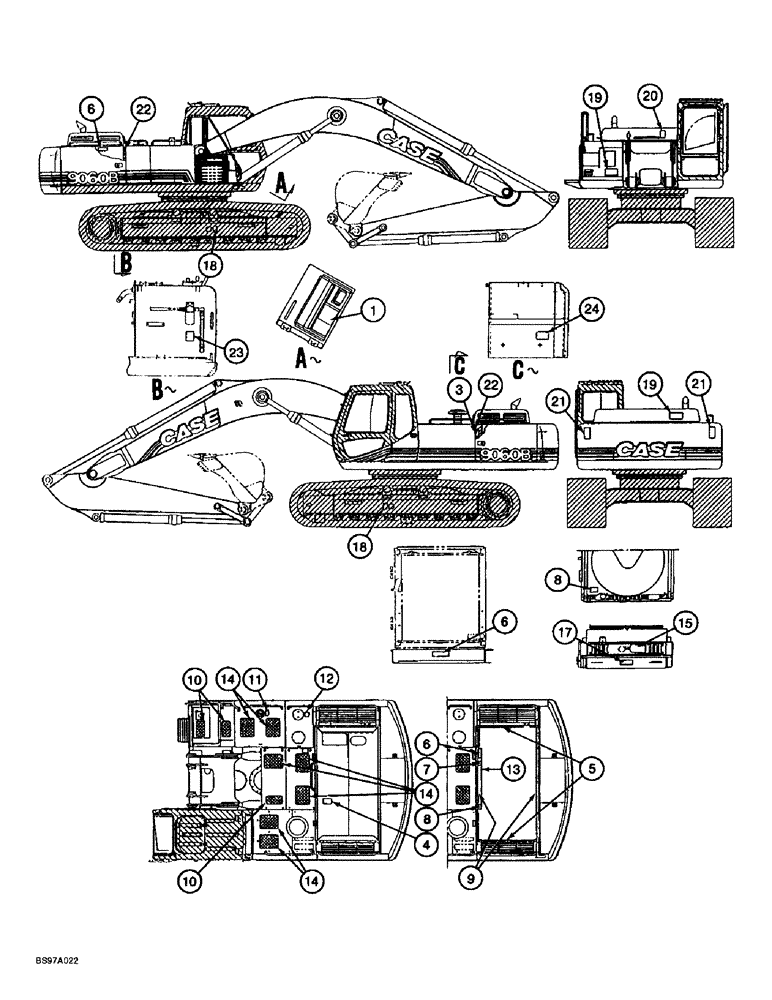

Запчасти Case 9060B (9-114) - DECALS - WARNING AND DANGER, FRENCH LANGUAGE (09) - CHASSIS

1

171081A1

DECAL

- lubrication chart

1шт.

2

170683A1

DECAL

- counterweight removal, not shown

1шт.

3

163727A1

DECAL

TAPE - special, 790 mm (31-1/8 inch) long

1шт.

4

190483A1

DECAL

- Warning, slippery and unstable surface (French)

1шт.

5

162947A1

ADHESIVE

TAPE - special, 420 mm (16-11/32 inch) long

2шт.

6

190503A1

DECAL

- Warning, hot surfaces (French)

3шт.

7

321-6720

DECAL

- Warning, wrong jumper cable connections to starter terminals (French)

1шт.

8

321-4324

DECAL

- Warning, rotating fan and belts (French)

2шт.

9

162937A1

DECAL

TAPE - special, 5400 mm (212-5/8 inch) long

2шт.

10

150108A1

ANTI-SKID STRIP

STRIP - adhesive, anti-skid

4шт.

11

190489A1

DECAL

- diesel fuel (French)

1шт.

12

240390A1

DECAL

- Warning, hot hydraulic fluid (French)

1шт.

13

158287A1

DECAL

- Danger, starting in gear can cause death (French)

1шт.

14

162935A1

ANTI-SKID STRIP

TAPE - non-skid

8шт.

15

158280A1

DECAL

TAG - antifreeze notice (French)

1шт.

16

170684A1

DECAL

- counterweight removal procedure, not shown

1шт.

17

321-6701

DECAL

- Warning, check and service cooling system (French)

1шт.

18

190482A1

DECAL

- Warning, grease under pressure (French)

2шт.

19

158284A1

DECAL

- Warning, stay away from machine if close to power line (French)

2шт.

20

190484A1

DECAL

- Warning, falling engine hood (French)

1шт.

21

158285A1

DECAL

- Danger, keep clear of swinging upper (French)

2шт.

22

162939A1

DECAL

TAPE - special, 790 mm (31-1/8 inch) long

2шт.

23

190479A1

DECAL

- to check oil level (French)

1шт.

24

321-6719

DECAL

- Warning, batteries contain acid and explosive gas (French)

1шт.
