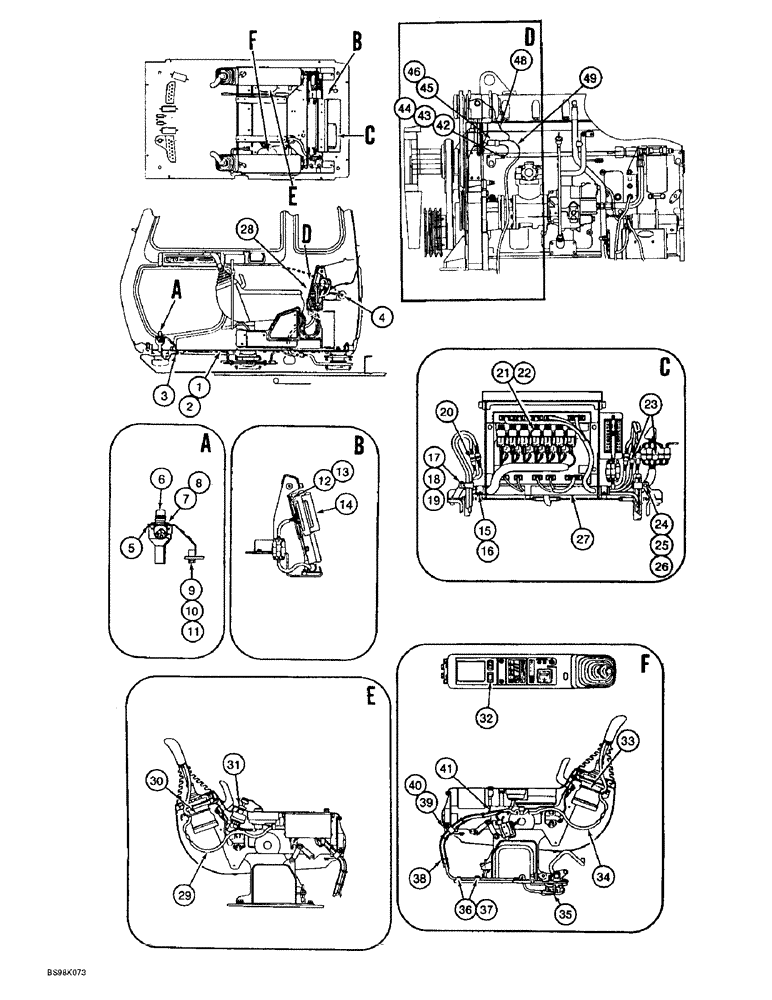

Запчасти Case 9060B (4-04) - ELECTRICAL PARTS FOR CAB (04) - ELECTRICAL SYSTEMS

1

159150A1

COLLAR

CLAMP - P-type

3шт.

2

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

3шт.

3

158962A1

CLIP

- harness

1шт.

4

159926A1

HARNESS

- cab, to instrument cluster

1шт.

5

160663A1

PACKING

GASKET - switch

1шт.

6

159921A1

SWITCH, CRUISE INC/D

SWITCH - special, travel speed selector

1шт.

7

159922A1

SCREW,Pan Hd, M5 x 20mm

- special

2шт.

8

825-1405

NUT,M5, Cl 8

2шт.

9

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm, class 10.9

1шт.

10

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

12

862-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

BOLT - hex socket, 6 - 1.0 x 20 mm, class 12.9

2шт.

13

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

14

159910A1

BOX, FUSE

BOX - fuse

1шт.

15

157808A1

COLLAR

CLAMP - P-type

3шт.

16

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

3шт.

17

158970A1

COLLAR

CLAMP - P-type

1шт.

18

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

1шт.

19

157699A1

FLANGE NUT

- hex flange, special

1шт.

20

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

1шт.

21

159919A1

RELAY

- electrical system controller

12шт.

22

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

12шт.

23

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

2шт.

24

158970A1

COLLAR

CLAMP - P-type

1шт.

25

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

1шт.

26

157699A1

FLANGE NUT

- hex flange, special

1шт.

27

164708A1

HARNESS

- wiring

1шт.

28

159920A1

LIGHTER, CIGARETTE

LIGHTER - cigar

1шт.

29

159927A1

HARNESS

- wiring

1шт.

30

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

1шт.

31

162217A1

IGNITION SWITCH

SWITCH ASSEMBLY - starter, engine, includes: Ref. 31A

1шт.

31a

150979A1

IGNITION KEY

KEY - ignition switch, not shown

2шт.

32

162751A1

SWITCH

- special, boom priority

1шт.

33

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

1шт.

34

159928A1

HARNESS

- wiring

1шт.

35

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

1шт.

36

159150A1

COLLAR

CLAMP - P-type

3шт.

37

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

3шт.

38

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

3шт.

39

157807A1

COLLAR

CLAMP - P-type, 20 mm ID

2шт.

40

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

2шт.

41

159620A1

HARNESS

- jumper wire

1шт.

42

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

1шт.

43

893-11010

LOCK WASHER,Ext Tooth, M10

WASHER, LOCK, Ext Tooth, M10

1шт.

45

171395A1

HARNESS

ASSEMBLY - air conditioning, engine, Serial Range: -EAC0601032

1шт.

46

171554A1

HARNESS

- air conditioning, engine, Serial Range: EAC0601032-EAC0601039

1шт.

47

171540A1

HARNESS

- air conditioning, inside cab, not shown, Serial Range: EAC0601032-EAC0601039

1шт.

48

171375A1

CONNECTOR, ELEC

BULLET - terminal, if used

1шт.

49

171376A1

CONNECTOR, ELEC

BULLET - connector, if used

1шт.

50

171541A1

FUSE

- 20 amp, air conditioning, not shown

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

44

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

1шт.
