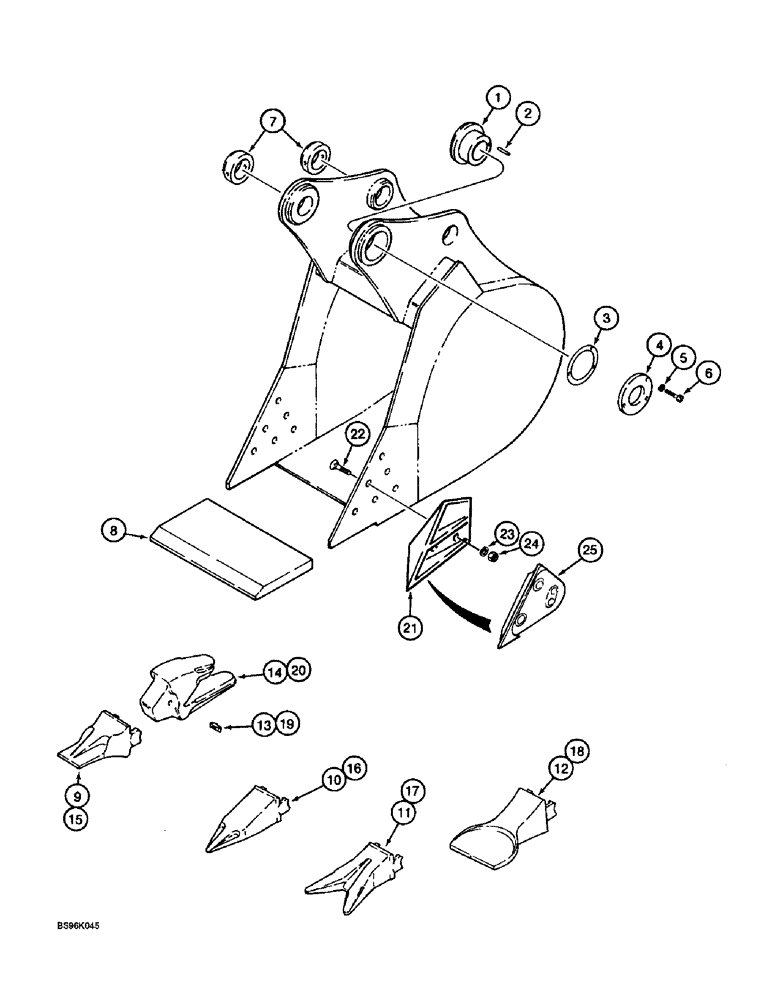

Запчасти Case 9060B (9-104) - MCF BUCKETS, STANDARD AND HEAVY DUTY (09) - CHASSIS

REF

INSTRUCTION

BUCKET - 914mm (36 inch), with 4 teeth, 1.70 cu. yd., includes: Refs. 1 - 8

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET -1067 mm (42 inch), with 5 teeth, 1.96 cu. yd., includes: Refs. 1 - 8

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1219 mm (48 inch), with 6 teeth, 2.22 cu. yd., includes: Refs. 1 - 8

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1372 mm (54 inch), with 6 teeth, 2.49 cu. yd., includes: Refs. 1 - 8

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1524 mm (60 inch), with 7 teeth, 2.75 cu. yd., includes: Refs. 1 - 8

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

254086A1

BUSHING

- adjustable

1шт.

2

254085A1

PIN

- dowel, special

1шт.

3

254087A1

SHIM

- adjustable bushing

6шт.

4

254089A1

PLATE

- cover, adjustable bushing

1шт.

5

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

4шт.

6

864-16050

HEX SOC SCREW,M16 x 50mm, Cl 8.8

BOLT - hex socket, 16 - 2.0 x 50 mm

4шт.

7

254090A1

COLLAR

BUSHING - non adjustable, with locking collar

4шт.

8

257038A1

EDGE, CUTTING

EDGE - cutting ,center, 914 mm (36 inch) bucket

1шт.

8

257039A1

EDGE, CUTTING

EDGE - cutting, center, 1067 mm (42 inch) bucket

1шт.

8

257040A1

EDGE, CUTTING

EDGE - cutting, center, 1219 mm (48 inch) bucket

1шт.

8

257041A1

EDGE, CUTTING

EDGE - cutting, center, 1372 mm (54 inch) bucket

1шт.

8

257042A1

EDGE, CUTTING

EDGE - cutting, center, 1524 mm (60 inch) bucket

1шт.

9

254093A1

TOOTH

- standard point, standard teeth and adapter for standard buckets

1шт.

10

254094A1

BUCKET TOOTH

TOOTH - tiger point, standard teeth and adapter for standard buckets

1шт.

11

254096A1

BUCKET TOOTH

TOOTH - twin tiger point, standard teeth and adapter for standard buckets

1шт.

12

254097A1

TOOTH

- spade point, 203 mm (8 inch) wide, standard teeth and adapter for standard buckets

1шт.

13

254098A1

BUCKET TOOTH KEY

PIN - tooth to shank, 25.7 (1) x 17.8 (11/16) x 94.7 mm (3-3/4 inch), standard teeth and adapter for standard buckets

1шт.

14

254091A1

ADAPTER

SHANK - tooth, standard teeth and adapter for standard buckets

1шт.

15

254100A1

BUCKET TOOTH

TOOTH - standard point, heavy duty teeth and adapter for heavy duty buckets

1шт.

16

254101A1

BUCKET TOOTH

TOOTH - tiger point, heavy duty teeth and adapter for heavy duty buckets

1шт.

17

254102A1

TOOTH

- twin tiger point, heavy duty teeth and adapter for heavy duty buckets

1шт.

18

254103A1

TOOTH

- spade point, 229 mm (9 inch) wide, heavy duty teeth and adapter for heavy duty buckets

1шт.

19

254104A1

BUCKET TOOTH KEY

PIN - tooth to shank, 29.8 (1-3/16) x 19.8 (3/4) x 104.9 mm (4-1/8 inch), heavy duty teeth and adapter for heavy duty buckets

1шт.

20

254099A1

ADAPTER

SHANK - tooth, heavy duty teeth and adapter for heavy duty buckets

1шт.

21

241820A1

EDGE, CUTTING

EDGE - cutting, bucket, right hand side, 38.1 mm (1-1/2 inch) thick, side cutting edges and wear shroud

1шт.

21

242797A1

EDGE, CUTTING

EDGE - cutting, bucket, left hand side, 38.1 mm (1-1/2 inch) thick, side cutting edges and wear shroud

1шт.

21

244960A1

EDGE, CUTTING

EDGE - cutting, bucket, right hand side, 50.8 mm (2 inch) thick, side cutting edges and wear shroud

1шт.

21

244958A1

EDGE, CUTTING

EDGE - cutting, bucket, left hand side, 50.8 mm (2 inch) thick, side cutting edges and wear shroud

1шт.

22

320-21456

CARRIAGE BOLT,#3, 7/8" - 9 x 3 1/2", Gr 8

BOLT - plow, #3 head, 7/8 nc x 3-1/2 inch, grade 8, side cutting edges and wear shroud

6шт.

23

392-21088

LOCK WASHER,7/8"

side cutting edges and wear shroud 7/8"

6шт.

24

329-1014

NUT,7/8"-9, G8

Side cutting edges and wear shroud 7/8"-9, G8

6шт.

25

244962A1

BLADE

SHROUD - wear, bucket, side cutting edges and wear shroud

2шт.
