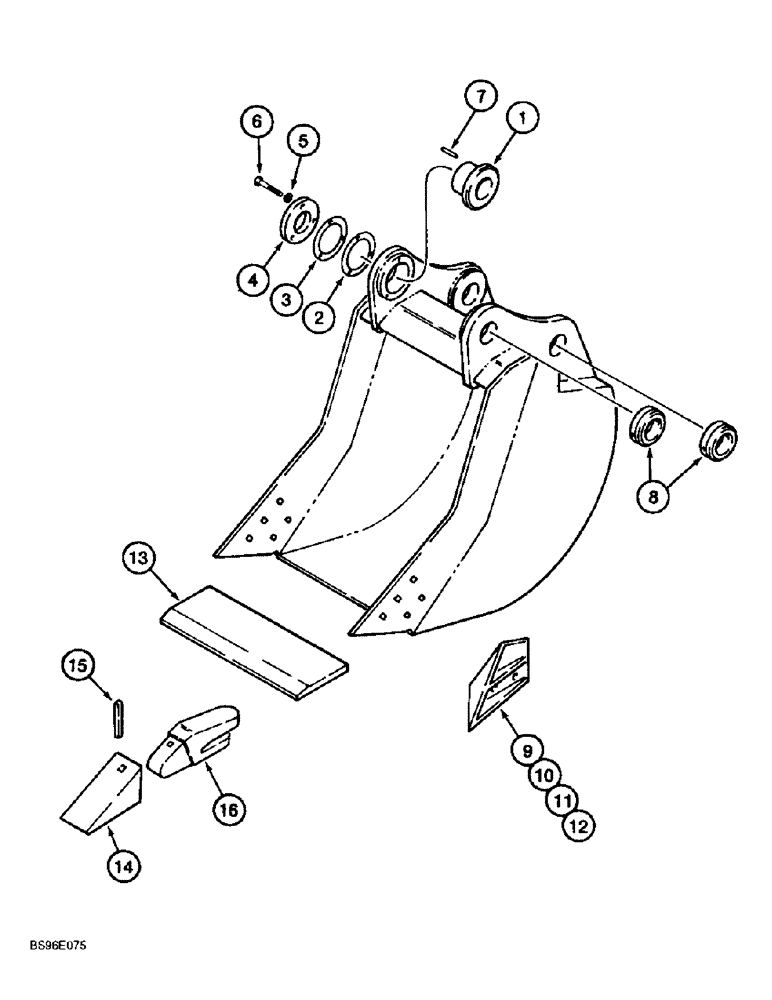

Запчасти Case 9060B (9-098) - H & H BUCKETS, HEAVY DUTY - STANDARD AND HIGH CAPACITY (09) - CHASSIS

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 4 teeth, 1.64 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.80 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1219 mm (48 inch), with 5 teeth, 2.10 cu. yd., includes: Refs. 1 - 8

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1372 mm (54 inch), with 6 teeth, 2.30 cu. yd., includes: Refs. 1 - 8

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1524 mm (60 inch), with 6 teeth, 2.60 cu. yd., includes: Refs. 1 - 8

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1828 mm (72 inch), with 7 teeth, 2.74 cu. yd., includes: Refs. 1 - 8

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 4 teeth, 1.92 cu. yd., assembly - heavy duty - high capacity, includes: Refs. 1 - 8

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 2.34 cu. yd., assembly - heavy duty - high capacity, includes: Refs. 1 - 8

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1219 mm (48 inch), with 5 teeth, 2.57 cu. yd., assembly - heavy duty - high capacity, includes: Refs. 1 - 8

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1372 mm (54 inch), with 5 teeth, 2.84 cu. yd., assembly - heavy duty - high capacity, includes: Refs. 1 - 8

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1524 mm (60 inch), with 6 teeth, 2.84 cu. yd., assembly - heavy duty - high capacity, includes: Refs. 1 - 8

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1828 mm (72 inch), with 7 teeth, 3.46 cu. yd., bucket assembly - heavy duty - high capacity

1шт.

1

125676A1

BUSHING

- adjustable, bucket assembly - heavy duty - high capacity

1шт.

2

125677A1

SHIM

- adjustable bushing, bucket assembly - heavy duty - high capacity

1шт.

3

125678A1

SHIM

- adjustable bushing, bucket assembly - heavy duty - high capacity

6шт.

4

125680A1

RETAINER

PLATE - cover, adjustable bushing, bucket assembly - heavy duty - high capacity

1шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Bucket assembly - Heavy duty - High capacity 5/8"

3шт.

6

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

Bucket assembly - heavy duty - high capacity Hex, 5/8"-11 x 2", G8

3шт.

7

125664A1

DOWEL

PIN - dowel, special, adjustable bushing, bucket assembly - heavy duty - high capacity

2шт.

8

125681A1

BOSS

BUSHING - non adjustable, with locking collar , bucket assembly - heavy duty - high capacity

2шт.

128170A1

HALF BLADE

KIT - edge, side cutting, 5 inch, includes: Refs. 9 - 13

1шт.

9

125934A1

EDGE, CUTTING

EDGE- side cutting, left-hand, 127 mm (5 inch), kit

1шт.

10

125936A1

EDGE, CUTTING

EDGE - side cutting, right-hand, 127 mm (5 inch), kit

1шт.

11

320-21656

CARRIAGE BOLT,#3, 1" - 8 x 3 1/2", Gr 8

BOLT - plow, #3 head, 1 NC x 3-1/2 inch, grade 8, side cutting kit

10шт.

12

232-41316

NUT,1"-8, GC

NUT, LOCK, , Side cutting kit 1"-8, GC

10шт.

13

125731A1

EDGE, CUTTING

EDGE - cutting, center, 914 mm (36 inch) bucket, 2 inch, heavy duty - high capacity

1шт.

13

125732A1

EDGE, CUTTING

EDGE - cutting, center, 1067 mm (42 inch) bucket, 2 inch, heavy duty - high capacity

1шт.

13

125733A1

EDGE, CUTTING

EDGE - cutting, center, 1219 mm (48 inch) bucket, 2 inch, heavy duty - high capacity

1шт.

13

125734A1

EDGE, CUTTING

EDGE - cutting, center, 1372 mm (54 inch) bucket, 2 inch, heavy duty - high capacity

1шт.

13

125735A1

EDGE, CUTTING

EDGE - cutting, center, 1524 mm (60 inch) bucket, 2 inch, heavy duty - high capacity

1шт.

13

125737A1

EDGE, CUTTING

EDGE - cutting, center, 1828 mm (72 inch) bucket, 2 inch, heavy duty - high capacity

1шт.

13

125731A1

EDGE, CUTTING

EDGE - cutting, center, 914 mm (36 inch) bucket, 2 inch, heavy duty - high capacity

1шт.

13

125732A1

EDGE, CUTTING

EDGE - cutting, center, 1067 mm (42 inch) bucket, 2 inch, heavy duty - high capacity

1шт.

13

125733A1

EDGE, CUTTING

EDGE - cutting, center, 1219 mm (48 inch) bucket, 2 inch, heavy duty - high capacity

1шт.

13

125734A1

EDGE, CUTTING

EDGE - cutting, center, 1372 mm (54 inch) bucket, 2 inch, heavy duty - high capacity

1шт.

13

125735A1

EDGE, CUTTING

EDGE - cutting, center, 1524 mm (60 inch) bucket, 2 inch, heavy duty - high capacity

1шт.

13

125737A1

EDGE, CUTTING

EDGE - cutting, center, 1828 mm (72 inch) bucket, 2 inch, heavy duty - high capacity

1шт.

14

127225A1

TOOTH

- standard point, 2 inch cutting edges, heavy duty - high capacity

1шт.

See Figure 9-106 and 9-100 for point, pin and shank options.

1шт.

15

127229A1

PIN

- flex, tooth to shank, 2 inch cutting edges, heavy duty - high capacity

1шт.

See Figure 9-106 and 9-100 for point, pin and shank options.

1шт.

16

127224A1

ADAPTER

SHANK - tooth, 2 inch, cutting edges, heavy duty - high capacity

1шт.

See Figure 9-106 and 9-100 for point, pin and shank options.

1шт.
