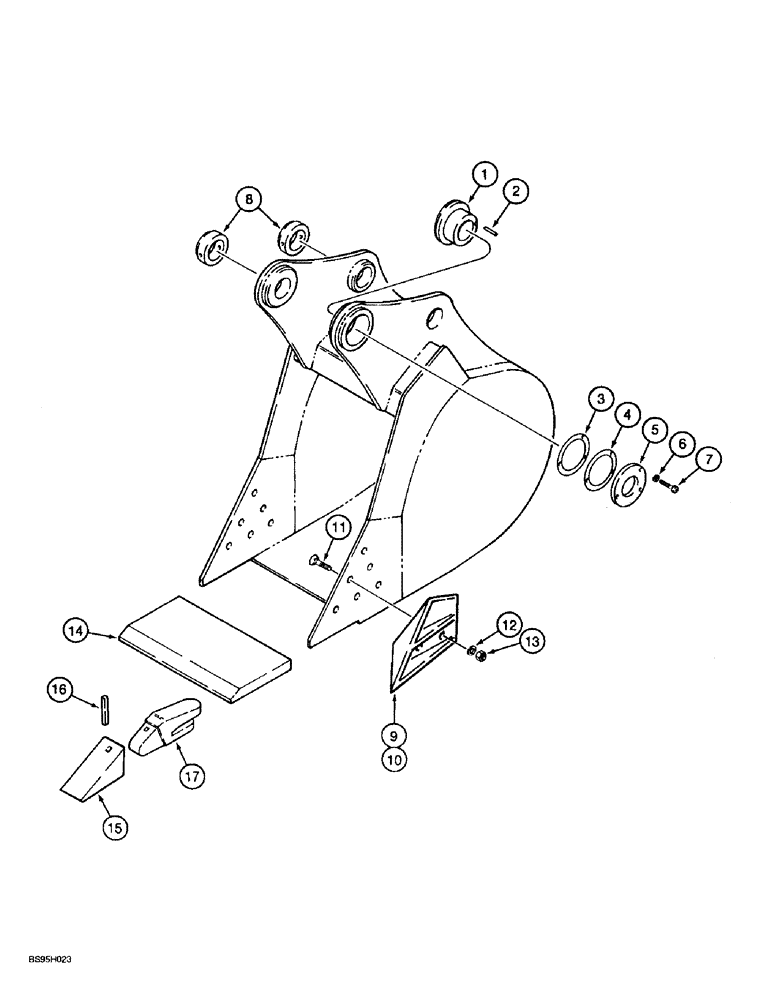

Запчасти Case 9060B (9-092) - CENTRAL FABRICATORS BUCKETS, HEAVY DUTY - STANDARD AND HIGH CAPACITY (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
BUCKET - 914 mm (36 inch), with 4 teeth, 1.66 cu. yd., bucket assembly - heavy duty - standard capacity, includes: Refs. 1 - 13
1шт.
Order bucket assembly from Machinery Price List.
1шт.
REF
INSTRUCTION
BUCKET - 1067 mm (42 inch), with 5 teeth, 1.85 cu. yd., bucket assembly - heavy duty - standard capacity, includes: Refs. 1 - 13
1шт.
Order bucket assembly from Machinery Price List.
1шт.
REF
INSTRUCTION
BUCKET - 1219 mm (48 inch), with 6 teeth, 2.15 cu. yd., bucket assembly - heavy duty - standard capacity, includes: Refs. 1 - 13
1шт.
Order bucket assembly from Machinery Price List.
1шт.
REF
INSTRUCTION
BUCKET - 1372 mm (54 inch), with 6 teeth, 2.45 cu. yd., bucket assembly - heavy duty - standard capacity, includes: Refs. 1 - 13
1шт.
Order bucket assembly from Machinery Price List.
1шт.
REF
INSTRUCTION
BUCKET - 1524 mm (60 inch), with 7 teeth, 2.74 cu. yd., bucket assembly - heavy duty - standard capacity, includes: Refs. 1 - 13
1шт.
Order bucket assembly from Machinery Price List.
1шт.
REF
INSTRUCTION
BUCKET - 1829 mm (72 inch), with 8 teeth, 3.29 cu. yd., bucket assembly - heavy duty - standard capacity, includes: Refs. 1 - 13
1шт.
Order bucket assembly from Machinery Price List.
1шт.
REF
INSTRUCTION
BUCKET - 914 mm (36 inch), with 4 teeth, 1.96 cu. yd., bucket assembly - heavy duty - high capacity, includes: Refs. 1 - 13
1шт.
Order bucket assembly from Machinery Price List.
1шт.
REF
INSTRUCTION
BUCKET - 1067 mm (42 inch), with 4 teeth, 2.32 cu. yd., bucket assembly - heavy duty - high capacity, includes: Refs. 1 - 13
1шт.
Order bucket assembly from Machinery Price List.
1шт.
REF
INSTRUCTION
BUCKET - 1219 mm (48 inch), with 5 teeth, 2.69 cu. yd., bucket assembly - heavy duty - high capacity, includes: Refs. 1 - 13
1шт.
Order bucket assembly from Machinery Price List.
1шт.
REF
INSTRUCTION
BUCKET - 1372 mm (54 inch), with 5 teeth, 3.06 cu. yd., bucket assembly - heavy duty - high capacity, includes: Refs. 1 - 13
1шт.
Order bucket assembly from Machinery Price List.
1шт.
REF
INSTRUCTION
BUCKET - 1524 mm (60 inch), with 6 teeth, 3.43 cu. yd., bucket assembly - heavy duty - high capacity, includes: Refs. 1 - 13
1шт.
Order bucket assembly from Machinery Price List.
1шт.
REF
INSTRUCTION
BUCKET - 1829 mm (72 inch), with 7 teeth, 4.17 cu. yd., bucket assembly - heavy duty - high capacity, includes: Refs. 1 - 13
1шт.
Order bucket assembly from Machinery Price List.
1шт.
1
122691A1
BUSHING
- adjustable, bucket assembly - heavy duty - high capacity, includes: Ref. 2
1шт.
2
NSS
NOT SOLD SEPARAT
bucket assembly - heavy duty - high capacity
1шт.
3
122692A1
SHIM
- adjustable bushing, bucket assembly - heavy duty - high capacity
2шт.
4
122693A1
SHIM
- adjustable bushing, bucket assembly - heavy duty - high capacity
6шт.
5
122694A1
RETAINER
PLATE - cover, adjustable bushing, bucket assembly - heavy duty - high capacity
1шт.
6
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, , Bucket assembly - Heavy duty - High capacity 5/8"
3шт.
7
361-36232
HEX SOC SCREW,5/8" - 11 x 2"
bucket assembly - heavy duty - high capacity
3шт.
8
122695A1
BOSS
bucket assembly - heavy duty - high capacity
2шт.
128169A1
HALF BLADE
KIT - edge, side cutting, 6 inch, includes: Refs. 9 - 13
1шт.
9
122682A1
CUTTER
side cutting kit
1шт.
10
122683A1
CUTTER
side cutting kit
1шт.
11
320-21456
CARRIAGE BOLT,#3, 7/8" - 9 x 3 1/2", Gr 8
side cutting kit
6шт.
12
392-21088
LOCK WASHER,7/8"
side cutting kit 7/8"
6шт.
13
329-1014
NUT,7/8"-9, G8
Side cutting kit 7/8"-9, G8
6шт.
14
125022A1
EDGE, CUTTING
EDGE - cutting, center, 914 mm (36 inch) bucket, 2 inch cutting edges - heavy duty - standard capacity buckets
1шт.
14
125023A1
EDGE, CUTTING
EDGE - cutting, center, 1067 mm (42 inch) bucket, 2 inch cutting edges - heavy duty - standard capacity buckets
1шт.
14
125024A1
EDGE, CUTTING
EDGE - cutting, center, 1219 mm (48 inch) bucket, 2 inch cutting edges - heavy duty - standard capacity buckets
1шт.
14
125025A1
EDGE, CUTTING
EDGE - cutting, center, 1372 mm (54 inch) bucket, 2 inch cutting edges - heavy duty - standard capacity buckets
1шт.
14
125026A1
EDGE, CUTTING
EDGE - cutting, center, 1524 mm (60 inch) bucket, 2 inch cutting edges - heavy duty - standard capacity buckets
1шт.
14
125032A1
EDGE, CUTTING
EDGE - cutting, center, 1828 mm (72 inch) bucket, 2 inch cutting edges - heavy duty - standard capacity buckets
1шт.
14
125010A1
EDGE, CUTTING
EDGE - cutting, center, 914 mm (36 inch) bucket, 2 inch cutting edges - heavy duty - high capacity buckets
1шт.
14
125011A1
EDGE, CUTTING
EDGE - cutting, center, 1067 mm (42 inch) bucket, 2 inch cutting edges - heavy duty - high capacity buckets
1шт.
14
125012A1
EDGE, CUTTING
EDGE - cutting, center, 1219 mm (48 inch) bucket, 2 inch cutting edges - heavy duty - high capacity buckets
1шт.
14
125013A1
EDGE, CUTTING
EDGE - cutting, center, 1372 mm (54 inch) bucket, 2 inch cutting edges - heavy duty - high capacity buckets
1шт.
14
125014A1
EDGE, CUTTING
EDGE - cutting, center, 1524 mm (60 inch) bucket, 2 inch cutting edges - heavy duty - high capacity buckets
1шт.
14
125033A1
EDGE, CUTTING
EDGE - cutting, center, 1828 mm (72 inch) bucket, 2 inch cutting edges - heavy duty - high capacity buckets
1шт.
15
122671A1
TOOTH
- standard point, 2 inch cutting edges - heavy duty - high capacity buckets
1шт.
See Figure 9-106 and 9-108 for point, pin and shank options.
1шт.
16
122672A1
FASTENER
PIN - flex, tooth to shank, 2 inch cutting edges - heavy duty - high capacity buckets
1шт.
See Figure 9-106 and 9-108 for point, pin and shank options.
1шт.
16
176554A1
PIN
- steel, tooth to shank, 2 inch cutting edges - heavy duty - high capacity buckets
1шт.
See Figure 9-106 and 9-108 for point, pin and shank options.
1шт.
17
122673A1
BUCKET TOOTH SHANK
- tooth, 2 inch, 2 inch cutting edges - heavy duty - high capacity buckets
1шт.
See Figure 9-106 and 9-108 for point, pin and shank options.
1шт.
Выбрано товаров: 58
