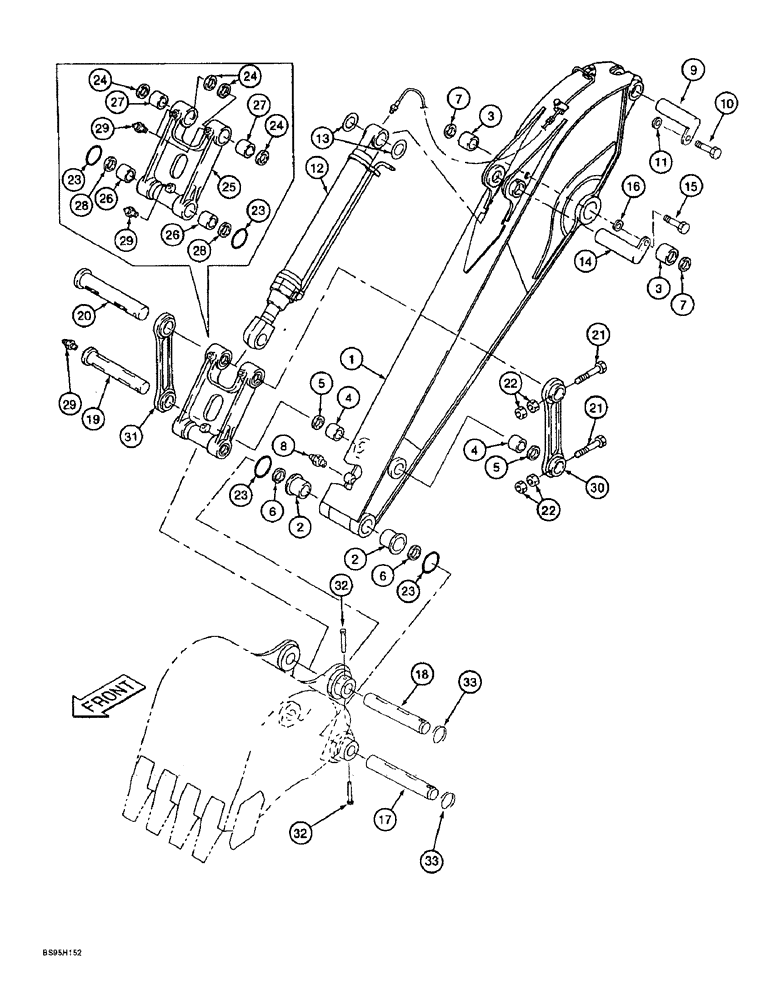

Запчасти Case 9060B (9-090) - ARMS AND LINKAGE (09) - CHASSIS

1

171146A1

DIPPER

ARM ASSEMBLY - excavator, 5.4 M (17 ft 8 in) long, includes: Refs. 2 - 4, Serial Range: -EAC0601060

1шт.

1

171742A1

DIPPER

ARM ASSEMBLY - excavator, 5.4 M (17 ft 8 in) long, includes: Refs. 2 - 4, Start Serial: EAC0601060

1шт.

1

171115A1

ARM

ASSEMBLY - excavator, 4 M (13 ft 1 inch) long, includes: Refs. 2 - 4, Serial Range: -EAC0601060

1шт.

1

171734A1

DIPPER

ARM ASSEMBLY - excavator, 4 M (13 ft 1 inch) long, includes: Refs. 2 - 4, Start Serial: EAC0601060

1шт.

1

171144A1

DIPPER

ARM ASSEMBLY - excavator, 3.36 M (11 ft) long, includes: Refs. 2 - 4, Serial Range: -EAC0601060

1шт.

1

171728A1

DIPPER

ARM ASSEMBLY - excavator, 3.36 M (11 ft) long, includes: Refs. 2 - 4, Start Serial: EAC0601060

1шт.

1

171143A1

DIPPER

ARM ASSEMBLY - excavator, 2.5 M (8 ft 3 inch) long, includes: Refs. 2 - 4, Serial Range: -EAC0601060

1шт.

1

171717A1

DIPPER

ARM ASSEMBLY - excavator, 2.5 M (8 ft 3 inch) long, includes: Refs. 2 - 4, Start Serial: EAC0601060

1шт.

2

170152A1

BUSHING,100mm ID x 194mm OD x 130mm L

- special

2шт.

3

170168A1

BUSHING

- arm, special

2шт.

4

170154A1

BUSHING

- special

2шт.

5

150044A1

SEAL

- dust, prior to P.I.N. EAC0601060

2шт.

5

159648A1

SEAL,90mm ID x 105mm OD x 5mm Thk

SEAL - dust, Start Serial: EAC0601060

2шт.

6

150050A1

SEAL

- dust, prior to P.I.N. EAC0601060

2шт.

6

159649A1

SEAL,100mm ID x 115mm OD x 5mm Thk

- dust, Start Serial: EAC0601060

2шт.

7

150331A1

SEAL

SEAL - dust

2шт.

8

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

9

170166A1

PIN

- special, cylinder mounting, both ends of arm cylinder

2шт.

9a

151443A1

SHIM,111mm ID x 190mm OD x 1.2mm Thk

- .04 inch thick, arm cylinder mounting pin, not shown

1шт.

10

627-20030

BOLT,Hex, M20 x 2.5 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 20 - 2.5 x 30 mm, class 10.9

2шт.

11

170219A1

WASHER

- special

2шт.

12

171088A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 160 (6-5/16) ID x 1306 mm (51-3/8 inch) stroke, bucket, parts list Figure 8-146

1шт.

13

151443A1

SHIM,111mm ID x 190mm OD x 1.2mm Thk

- .04 inch thick

1шт.

14

170166A1

PIN

- special, cylinder mounting, bucket cylinder

1шт.

15

627-20030

BOLT,Hex, M20 x 2.5 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 20 - 2.5 x 30 mm, class 10.9

1шт.

16

170219A1

WASHER

- special

1шт.

17

170151A1

PIN

- attaching, special, lower bucket mount

1шт.

18

170153A1

PIN

- attaching, special, upper bucket mount

1шт.

19

170155A1

PIN

- attaching, special

1шт.

20

151406A1

PIN

- attaching, outer links on arm

1шт.

21

827-24200

BOLT,Hex, M24 x 3 x 200mm, Cl 10.9

- hex, 24 - 3.0 x 200 mm, class 10.9

2шт.

22

829-13424

NUT,M24 x 2, Cl 10

- hex, 24 mm - 2.0, class 10

4шт.

23

162996A1

O-RING

- grease seal

4шт.

24

150055A1

SEAL

- dust

4шт.

25

164444A1

POWER ARM

LINK - bucket, inner, includes: Refs. 26 and 27

1шт.

26

153807A1

RING

BUSHING - bucket link, bucket end

2шт.

27

151345A1

BUSHING,110mm ID x 125mm OD x 130mm L

- bucket link, cylinder end

2шт.

28

150050A1

SEAL

- dust

2шт.

29

153630A1

LUBE NIPPLE

FITTING - grease, straight

4шт.

30

164224A1

LINKAGE YOKE

LINK - bucket, outer, left-hand

1шт.

31

164223A1

LINKAGE YOKE

LINK - bucket, outer, right-hand

1шт.

32

163674A1

PIN,24mm OD x 160mm L

- headed, special

2шт.

33

163675A1

RING

- retaining, spiral type

2шт.
