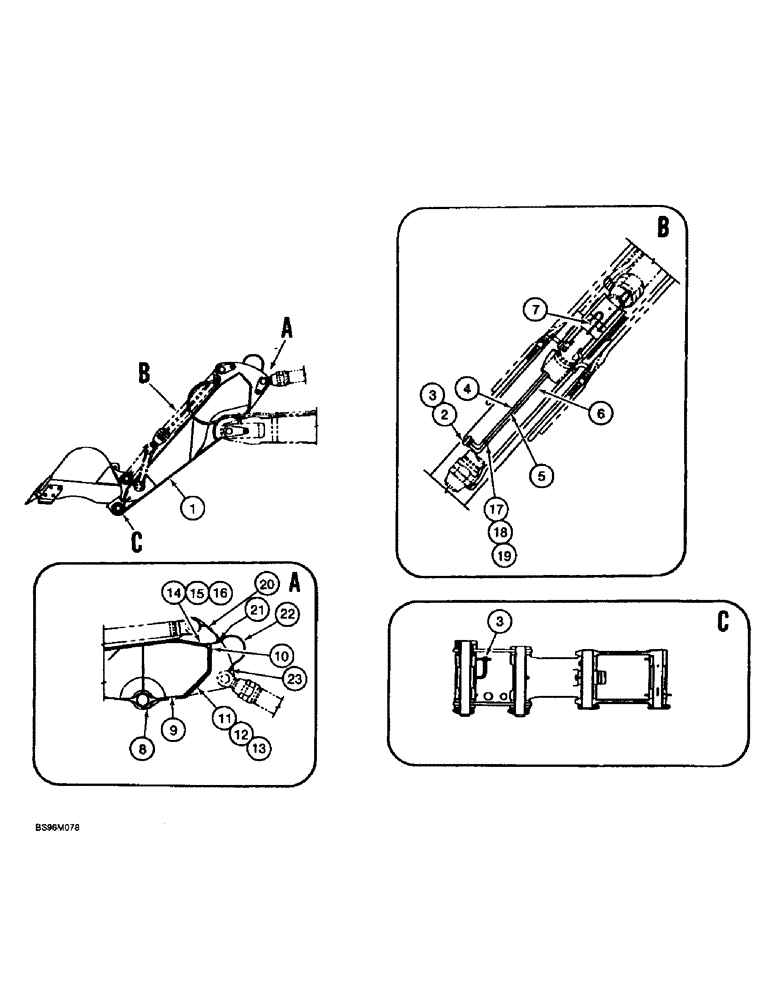

Запчасти Case 9060B (9-088) - LUBRICATION FOR 2.50 M (8 FOOT 3 INCH) ARM (09) - CHASSIS

1

REF

INSTRUCTION

ARM ASSEMBLY - excavator, 2.5 M (8 ft 3 inch) long, parts list Figure 9-90

1шт.

2

152599A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, special

3шт.

3

153630A1

LUBE NIPPLE

FITTING - grease, straight

4шт.

4

153839A1

TUBE ASSY.

TUBE ASSEMBLY - lubrication

1шт.

5

153840A1

TUBE ASSY.

TUBE ASSEMBLY - lubrication

1шт.

6

153842A1

TUBE ASSY.

TUBE ASSEMBLY - lubrication

1шт.

7

152032A1

UNION

CONNECTOR - straight

1шт.

8

152627A1

ELBOW

- 90 degree, special

1шт.

9

153841A1

TUBE ASSY.

TUBE ASSEMBLY - lubrication

1шт.

10

153694A1

UNION

CONNECTOR - straight, special

1шт.

11

168377A1

CLAMP

- lubrication line, single type

2шт.

12

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

2шт.

13

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

14

153774A1

CLAMP

- double lubrication line

1шт.

15

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

1шт.

16

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

17

151497A1

CLAMP

- lubrication line, triple type

1шт.

18

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

1шт.

19

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

20

150983A1

HOSE ASSY.

HOSE - 450 mm (17-3/4 inch) long

1шт.

21

152032A1

UNION

CONNECTOR - straight

1шт.

22

153729A1

HOSE

- 1240 mm (48-13/16 inch) long

1шт.

23

153775A1

FITTING

REDUCER - bushing

1шт.
