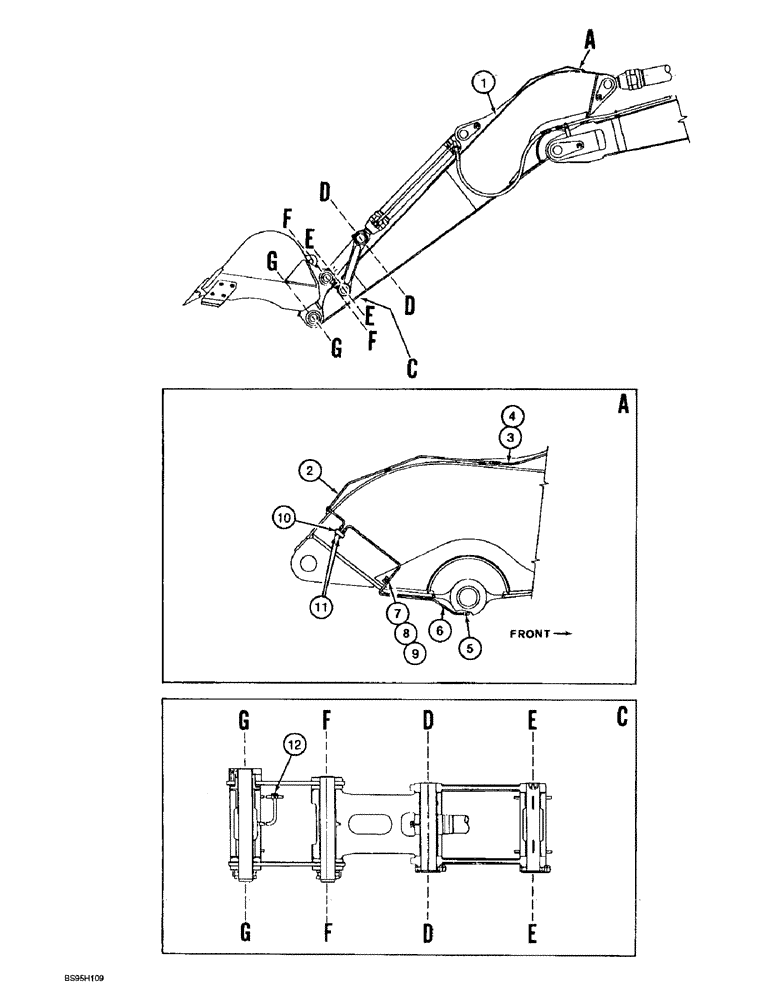

Запчасти Case 9060B (9-084) - LUBRICATION FOR 4.00 M (13 FOOT 1 INCH) ARM (09) - CHASSIS

1

REF

INSTRUCTION

ARM ASSEMBLY - excavator, 4 M (13 ft 1 inch) long, parts list Figure 9-90

1шт.

2

151700A1

TUBE ASSY.

TUBE ASSEMBLY - lubrication

1шт.

3

152776A1

HOSE,560.00 mm

560.00 mm

1шт.

4

152032A1

UNION

CONNECTOR - straight

1шт.

5

152627A1

ELBOW

- 90 degree, special

1шт.

6

151703A1

TUBE ASSY.,995.5, 260.3 mm Length

TUBE ASSEMBLY - lubrication

1шт.

7

168377A1

CLAMP

- lubrication line, single type

4шт.

8

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

4шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

10

152599A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, special

1шт.

11

153631A1

LUBE NIPPLE,1/8"-27 NPT

FITTING - grease, 45 degree

2шт.

12

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.
