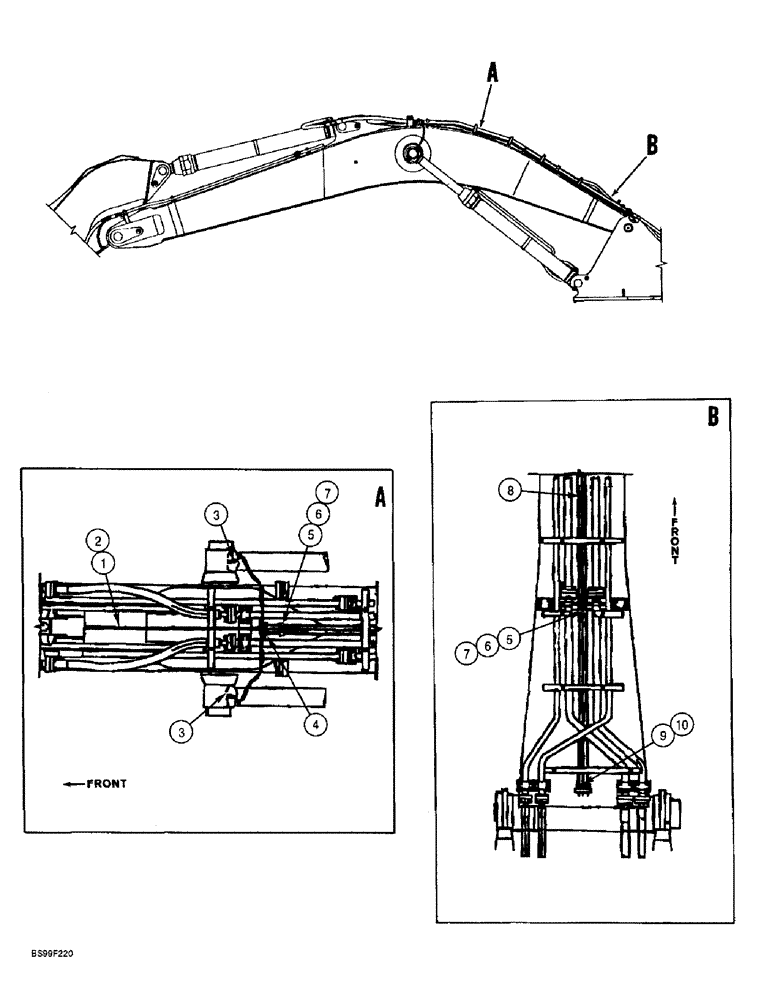

Запчасти Case 9060B (9-079A) - LUBRICATION LINES FOR BOOM AND ARM CYLINDERS, P.I.N. EAC0601060 AND AFTER (09) - CHASSIS

1

171818A1

HOSE ASSY.

HOSE - lube, at arm cylinder

1шт.

2

152032A1

UNION

CONNECTOR - straight

1шт.

3

152432A1

HOSE,6.3mm ID x 770mm L

770.00 mm

2шт.

4

153695A1

ELBOW

- 90 degree

2шт.

5

151497A1

CLAMP

- lubrication line, triple type

2шт.

7

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

8

171819A1

TUBE

- lubrication

3шт.

9

152599A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, special

3шт.

10

153630A1

LUBE NIPPLE

FITTING - grease, straight

3шт.

6

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

Full Thd Hex, M8 x 30, 10.9

4шт.
