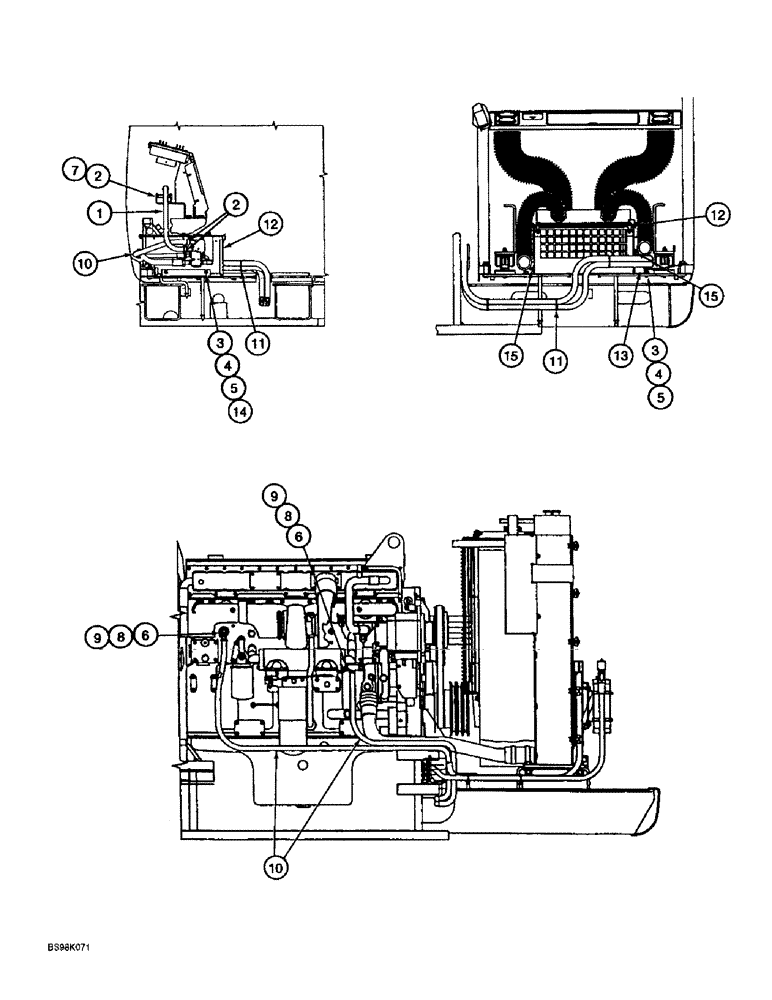

Запчасти Case 9060B (9-071C) - HEATER LINES, MODELS WITH AIR CONDITIONING, P.I.N. EAC0601032 AND AFTER (09) - CHASSIS

1

171573A1

HEATER HOSE,2.00"

HOSE , Hot Water Valve to Heater 2.00"

1шт.

2

171574A1

CLAMP

- hose

4шт.

3

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

4шт.

4

892-11010

LOCK WASHER,M10

4шт.

6

171029A1

BUSHING

- reducer

2шт.

7

171569A1

VALVE

- hot water

1шт.

8

171030A1

VALVE

- shutoff

2шт.

9

170876A1

CLAMP

- hose

2шт.

10

171557A1

HEATER HOSE,25.00"

HOSE , Heater, At Engine 25.00"

2шт.

11

170308A1

BAND

STRAP - tie

1шт.

12

REF

INSTRUCTION

HEATER ASSEMBLY - with air conditioning, parts list Figure 9-77A

1шт.

13

171577A1

BRACKET

- mounting, left-hand

1шт.

14

171578A1

BRACKET

- mounting, right-hand

1шт.

15

171765A1

NUT

- hex

4шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

4шт.
