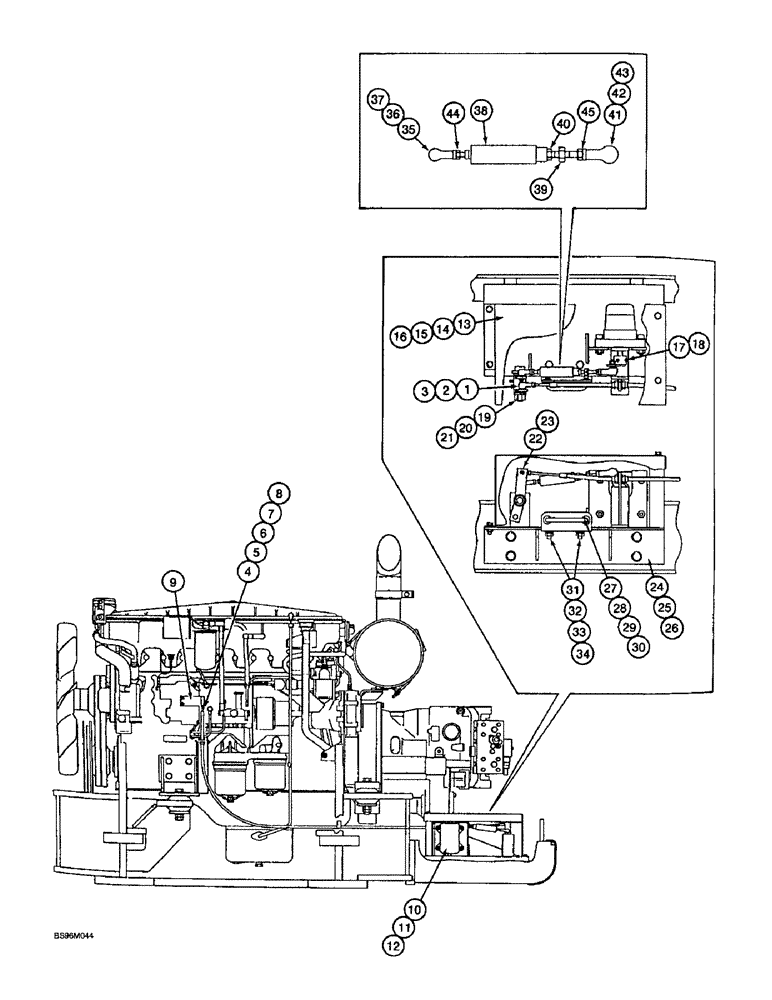

Запчасти Case 9060B (3-6) - THROTTLE AND FUEL SHUTOFF CONTROLS (03) - FUEL SYSTEM

1

150054A1

BALL JOINT

JOINT - ball

1шт.

2

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

3

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

4

170642A1

CABLE

- control

1шт.

5

150054A1

BALL JOINT

JOINT - ball

1шт.

6

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

7

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

9

170641A1

BRACKET

- control cable

1шт.

10

160614A1

MOTOR, ELECTRIC

MOTOR - throttle control, piece parts not serviced separately

1шт.

10

160614A1R

REMAN-ELECTRIC MOTOR

9060B CASE CRAWLER EXCAVATOR (S/N EAC0601026 & AFTER), ASN EAC0601026 (11/96-)

1шт.

10

160614A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

11

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

SCREW, Hex Soc Hd, M10 x 40, 12.9

4шт.

12

112309A1

LOCK WASHER

- lock, special

4шт.

13

170585A1

COVER

- throttle motor

1шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

17

170640A1

LEVER

- throttle

1шт.

18

878-10812

SET SCREW,Hex Skt, M8 x 12mm, Cup Pt

SCREW - set, hex socket, 8 - 1.25 x 12 mm, cup point

2шт.

19

170637A1

WASHER

- special

1шт.

20

170638A1

WASHER

- special

1шт.

21

170074A1

NUT

- hex, special

1шт.

170639A1

CHAIN (CE)

LINK ASSEMBLY - control, includes: Refs. 22 and 23

1шт.

22

173200A1

LINK

- control

1шт.

23

170452A1

BUSHING

- special, control link

2шт.

24

170587A1

BRACKET

- mounting

1шт.

25

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

4шт.

26

150811A1

WASHER

- flat, special, 12 mm

4шт.

27

162296A1

STAY

- special

1шт.

29

153181A1

COTTER PIN

CLIP - hair pin

2шт.

30

170643A1

BRACKET

- special

1шт.

33

892-11010

LOCK WASHER,M10

2шт.

35

150054A1

BALL JOINT

JOINT - ball

1шт.

36

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

37

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

38

150535A1

SPRING

ASSEMBLY - cable return, piece parts not serviced separately

1шт.

39

150547A1

ROD,THREADED

ROD - threaded

1шт.

40

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

1шт.

41

153235A1

BALL JOINT

JOINT - ball

1шт.

42

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

43

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

1шт.

44

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

45

173222A1

NUT

- special

1шт.

14

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9

4шт.

31

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

34

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

28

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

32

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.
