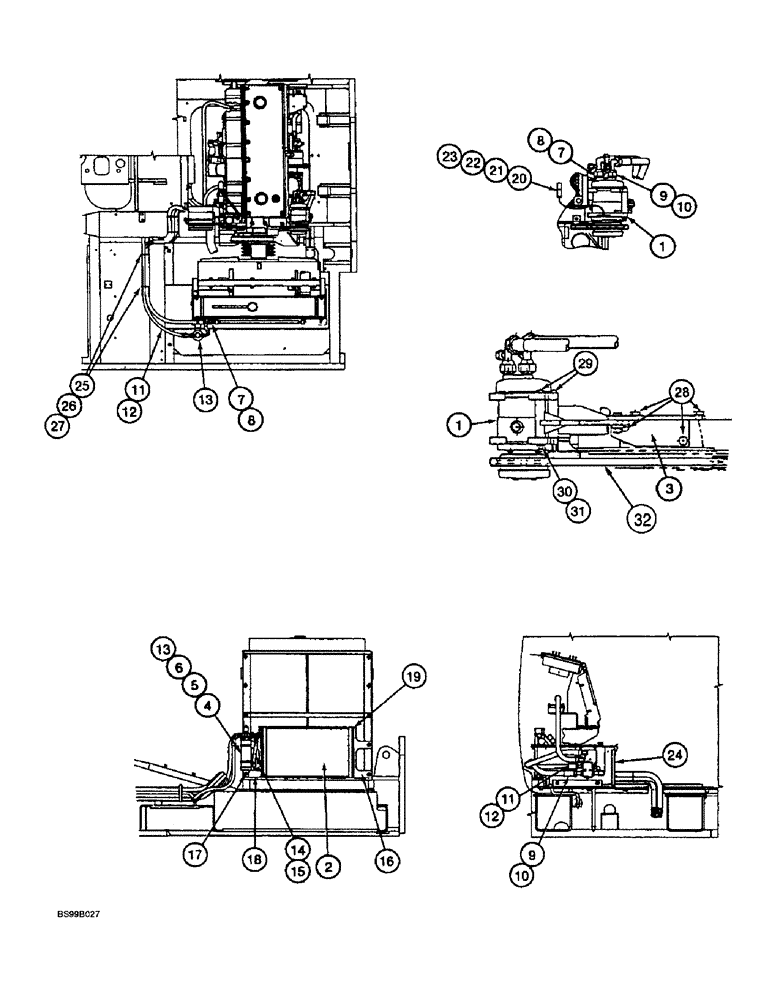

Запчасти Case 9060B (9-071A) - AIR CONDITIONING LINES, P.I.N. EAC0601032 AND AFTER (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
170668A1
COMPRESSOR
- air conditioner
1шт.
2
171558A1
CONDENSER
- air conditioner
1шт.
3
173260A1
BRACKET
- compressor, mounting
1шт.
4
413-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
2шт.
5
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
2шт.
6
170815A1
BRACKET
- receiver-drier
1шт.
7
171581A1
HOSE ASSY.
HOSE -, Serial Range: compressor-condenser
1шт.
8
171587A1
O-RING
- hose
2шт.
9
171566A1
HOSE ASSY.
HOSE - compressor to expansion valve at evaporator core, includes: Ref. 10
1шт.
10
171588A1
O-RING
- hose
2шт.
11
171567A1
HOSE ASSY.
HOSE - expansion valve at evaporator core to receiver drier, includes: Ref. 12
1шт.
12
171586A1
O-RING
- hose
2шт.
13
170814A1
RECEIVER-DRYER
RECEIVER-DRIER - air conditioning
1шт.
14
171582A1
HOSE ASSY.
HOSE - receiver dryer to condenser, includes: Ref. 15
1шт.
15
171586A1
O-RING
- hose
2шт.
16
171597A1
BRACKET
- condenser mounting, right-hand
1шт.
18
171596A1
BRACKET
- condenser mounting, left-hand
1шт.
19
463-1108
SCREW,Hex Hd, #10-24 x 1/2"
- machine, hex head, No. 10 NC x 1/2 inch, at condenser
16шт.
20
182064A1
CONNECTOR, ELEC
CONNECTOR - electrical
1шт.
21
182067A1
CONNECTOR, ELEC
LOCK - connector
1шт.
22
225124C1
SEAL,2 - 2.9 mm2
CONNECTOR - electrical
1шт.
23
182157A1
ELEC CONNECTOR
PIN - terminial
1шт.
24
REF
INSTRUCTION
HEATER ASSEMBLY - with air conditioning, parts list Figure 9-77A
1шт.
25
150860A1
COLLAR
BRACKET - support, hose
2шт.
26
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
- machine, pan Phillips, 6 - 1.0 x 8 mm
2шт.
27
170308A1
BAND
STRAP - tie
1шт.
29
413-680
BOLT,Hex, 3/8" - 16 x 5", Gr 5
2шт.
30
492-11038
LOCK WASHER,3/8"
2шт.
31
425-106
NUT,3/8"-16, Cl 5
2шт.
32
282448A1
BELT
Drive, Compressor
1шт.
28
627-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd
4шт.
17
829-1410
NUT,M10 x 1.5, Cl 10.9
4шт.
Выбрано товаров: 32
