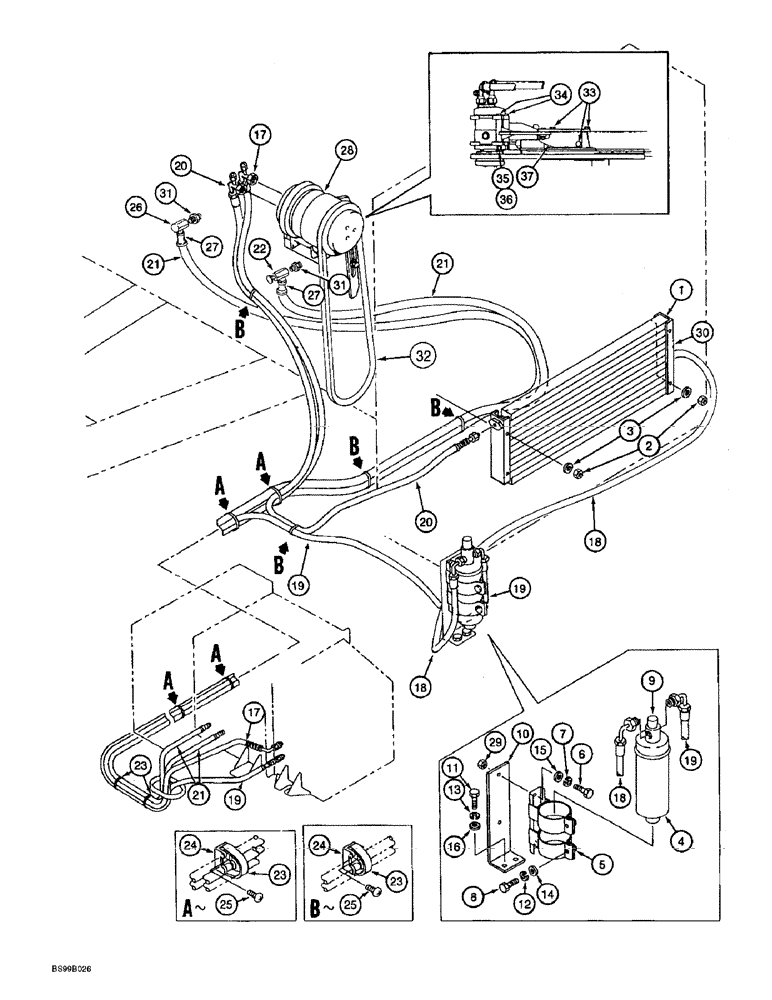

Запчасти Case 9060B (9-070) - AIR CONDITIONING WITH HEATER AND HOSES, PRIOR TO P.I.N. EAC0601032 (09) - CHASSIS

1

170808A1

CONDENSER

- air conditioner

1шт.

4

170814A1

RECEIVER-DRYER

RECEIVER-DRIER - air conditioning

1шт.

5

170815A1

BRACKET

- receiver-drier

1шт.

6

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

7

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

8

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

2шт.

9

170667A1

SWITCH

- binary

1шт.

10

170817A1

BRACKET

- receiver-drier holder

1шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

12

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

13

892-11010

LOCK WASHER,M10

2шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

17

170819A1

HOSE ASSY.

HOSE - 5486 mm (216 inch) long

1шт.

18

170820A1

HOSE ASSY.

HOSE - 1829 mm (72 inch) long

1шт.

19

170821A1

HOSE ASSY.

HOSE - 3962 mm (156 inch) long

1шт.

20

170818A1

HOSE ASSY.

HOSE - 3962 mm (156 inch) long

1шт.

21

150666A1

HOSE,13.00 mm ID x 6000.00 mm

1шт.

22

171031A1

STEM

- hose

1шт.

23

170308A1

BAND

STRAP - tie

6шт.

24

150860A1

COLLAR

BRACKET - support

5шт.

25

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

5шт.

26

171030A1

VALVE

- shutoff

1шт.

27

170328A1

CLAMP

- special

4шт.

28

170668A1

COMPRESSOR

- air conditioner

1шт.

29

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

2шт.

30

170816A1

SHEET

PANEL - condenser

2шт.

31

171029A1

BUSHING

- reducer

2шт.

32

282448A1

BELT

Drive, Compressor

1шт.

34

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

2шт.

35

492-11038

LOCK WASHER,3/8"

2шт.

36

425-106

NUT,3/8"-16, Cl 5

2шт.

37

173260A1

BRACKET

- compressor, mounting

1шт.

33

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

2

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

4шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.
