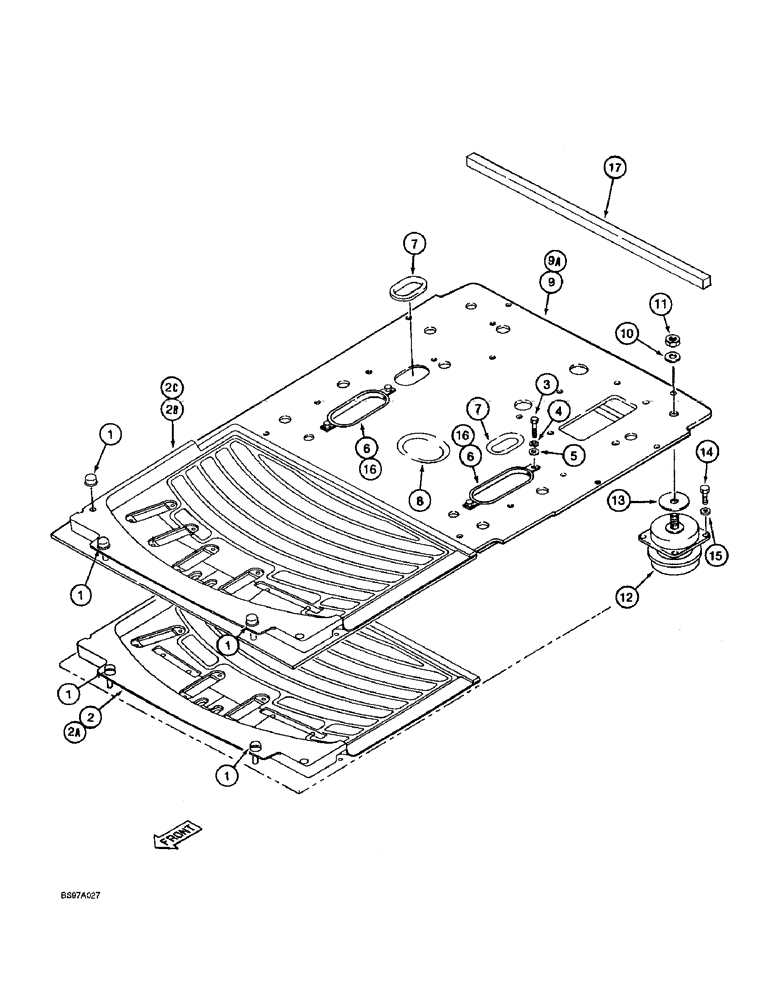

Запчасти Case 9060B (9-054) - CAB FLOOR, MOUNTING AND FLOOR MATS (09) - CHASSIS

1

159489A1

CAP

- special

3шт.

2

159496A1

FLOOR MAT

MAT - floor, machines with single pedal travel but without auxiliary hydraulic equipment, used on model P.I.N. EAC0601026 only

1шт.

2a

165617A1

FLOOR MAT

MAT - floor, machines with single pedal travel but without auxiliary hydraulic equipment, Start Serial: EAC0601027

1шт.

2b

162362A1

FLOOR MAT

MAT - floor, machines with single pedal travel and auxiliary hydraulic equipment control pedal, used on model P.I.N. EAC0601026 only

1шт.

2c

165393A1

FLOOR MAT

MAT - floor, machines with single pedal travel and auxiliary hydraulic equipment control pedal, Start Serial: EAC0601027

1шт.

3

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

4шт.

4

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

6

162622A1

GROMMET

GUIDE - cab floor

2шт.

7

162623A1

GROMMET

- rubber

2шт.

8

162624A1

GROMMET

- rubber

1шт.

9

162621A1

CUSHION

FLOOR - cab, used on model P.I.N. EAC0601026 only

1шт.

9a

165401A1

FLOOR

- cab, Start Serial: EAC0601027

1шт.

10

150714A1

WASHER

- special

6шт.

11

150760A1

NUT

- hex

6шт.

12

165029A1

INSULATOR BLOCK

MOUNT - rubber, cab floor

6шт.

13

151092A1

SPACER

- floor mount

12шт.

14

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

24шт.

15

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

24шт.

16

162625A1

GROMMET

- rubber

2шт.

17

162626A1

SEAL

- cushion, Start Serial: EAC0601027

1шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.
