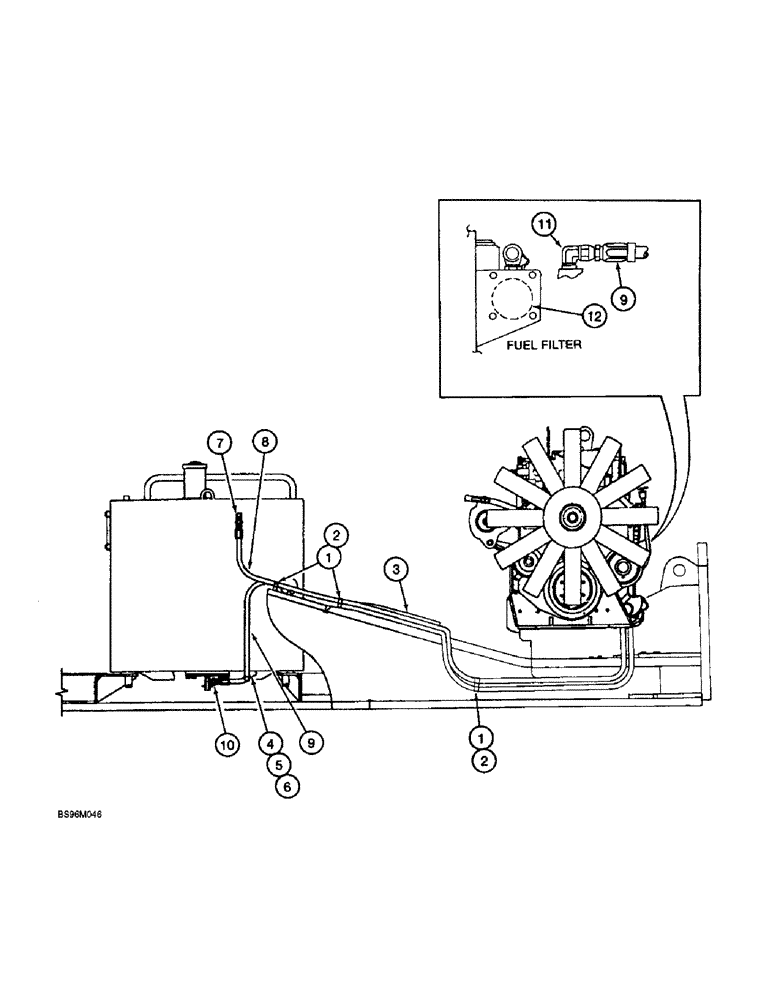

Запчасти Case 9060B (3-4) - FUEL LINES (03) - FUEL SYSTEM

1

157320A1

CLAMP

- hose

3шт.

2

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

3шт.

3

170308A1

BAND

STRAP - tie

2шт.

4

150860A1

COLLAR

BRACKET - support

1шт.

5

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

1шт.

6

170308A1

BAND

STRAP - tie

1шт.

7

170460A1

ELBOW

- 90 degree

1шт.

8

170461A1

HOSE ASSY.

HOSE - 3562 mm (140-1/4 inch) long, fuel return

1шт.

9

170459A1

HOSE ASSY.

HOSE - 3887 mm (153 inch) long, fuel supply

1шт.

10

170458A1

HYDROMETER

ELBOW - special

1шт.

11

170932A1

ELBOW

- special

1шт.

12

90-3941T1

SEPARATOR

FILTER - fuel

1шт.
