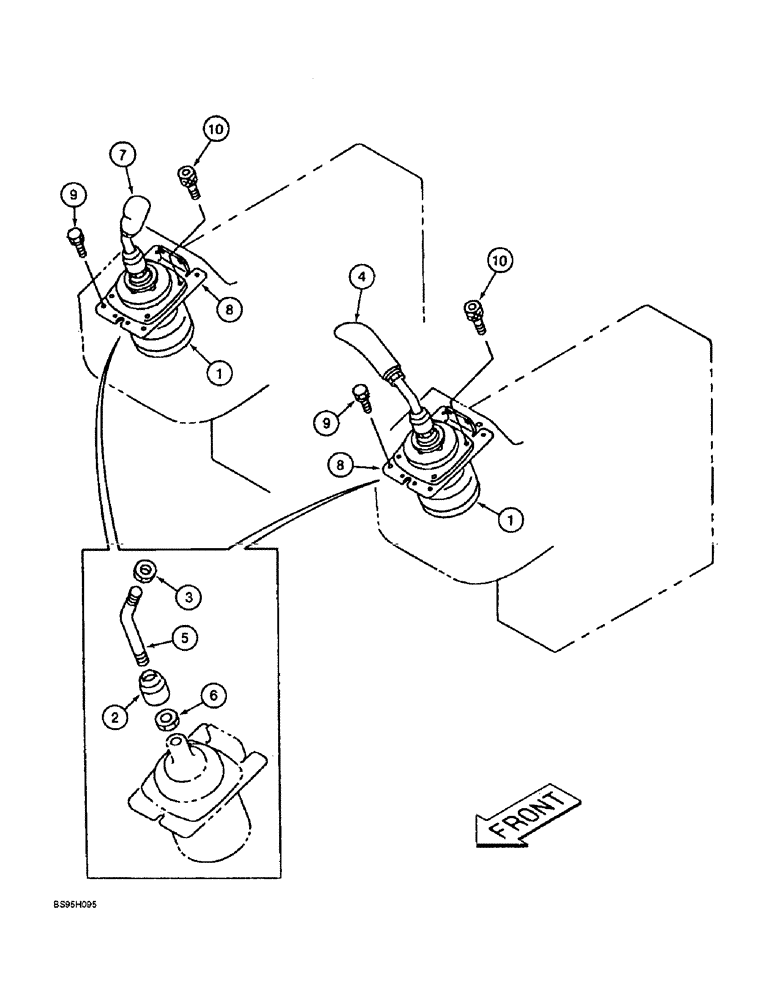

Запчасти Case 9060B (9-052) - REMOTE CONTROL VALVE ASSEMBLY MOUNTING (09) - CHASSIS

1

162097A1

VALVE

ASSEMBLY - remote control, used on model P.I.N. EAC0601026 only, parts list Figure 8-210

2шт.

1

164782A1

CONTROL BLOCK

VALVE ASSEMBLY - remote control, parts list Figure 8-210, Start Serial: EAC0601027

2шт.

2

151302A1

CAP

BOOT - dust protection

2шт.

3

159487A1

NUT

- hex, special, if used

2шт.

4

159270A1

KNOB

- left-hand, with horn button, without lever, replaced by 168769A1, Ref 4A

1шт.

4a

168769A1

KNOB

ASSEMBLY - left-hand, with horn button and lever, not shown

1шт.

5

159269A1

LEVER

- control, without knob, if used, see ref 4A and 7A

2шт.

6

151154A1

JAM NUT

- hex

2шт.

7

159486A1

KNOB

- right-hand, with power up button, without lever, replaced by 168770A1, Ref 7A

1шт.

7a

168770A1

KNOB

ASSEMBLY - right-hand, with power up button and lever, not shown

1шт.

8

159268A1

SUPPORT

BRACKET - mounting

2шт.

9

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

4шт.

10

862-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

SCREW - hex socket, 6 - 1.0 x 25 mm, class 12.9

8шт.
