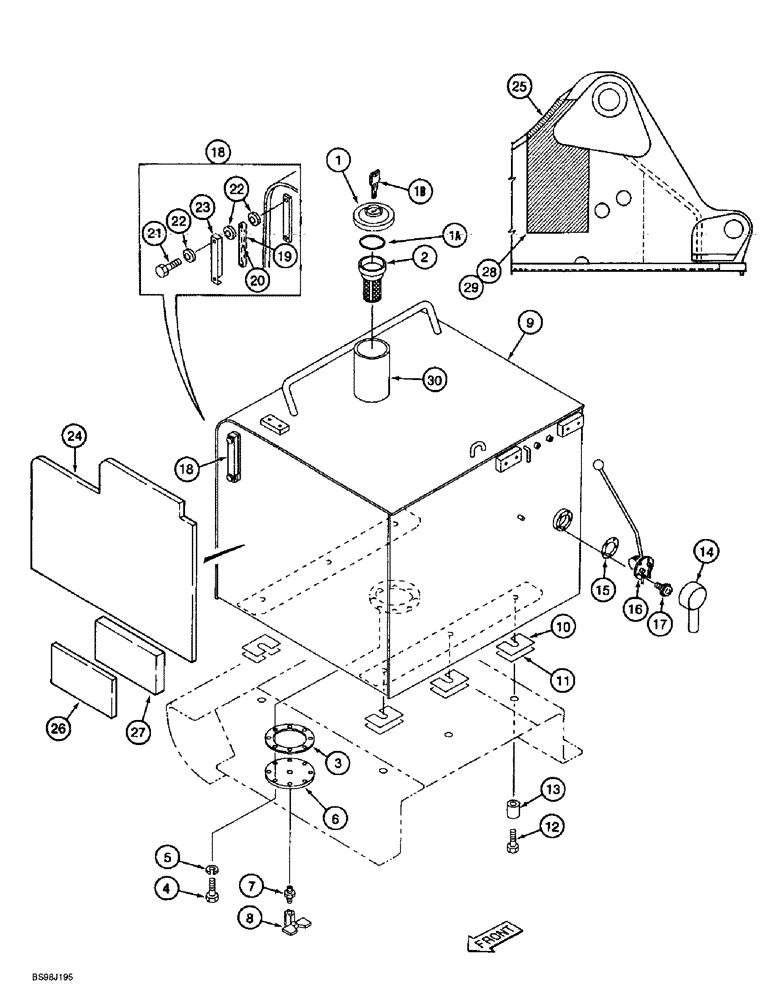

Запчасти Case 9060B (3-2) - FUEL TANK (03) - FUEL SYSTEM

1

150492A1

LOCKABLE FUEL CAP

CAP - fuel tank, includes: Refs. 1A and 1B

1шт.

1a

163804A1

GASKET

- special, cap

1шт.

1b

150979A1

IGNITION KEY

KEY - ignition switch, or fuel tank cap

2шт.

2

150146A1

FILTER

- fuel tank, in tank filler neck

1шт.

3

151322A1

GASKET,3mm Thk

- cover

1шт.

4

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9, Cover

8шт.

5

892-11010

LOCK WASHER,M10

8шт.

6

170067A1

COVER

- fuel tank bottom

1шт.

7

150847A1

HYD CONNECTOR

CONNECTOR - straight

1шт.

8

158923A1

DRAIN VALVE

VALVE - fuel tank drain

1шт.

9

170631A1

FUEL TANK

TANK - fuel

1шт.

10

170002A1

FRICTION WASHER

PLATE - shim

1шт.

11

170003A1

FRICTION WASHER

PLATE - shim

1шт.

12

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

8шт.

13

162301A1

SPACER

- special

8шт.

14

159698A1

COVER

- special, fuel tank

1шт.

15

152591A1

GASKET,2mm Thk

- fuel level sender

1шт.

16

163257A1

SENSOR

SENDER - fuel level

1шт.

17

151688A1

SCREW,Phil Pan Hd, M5 x 12mm, W/ Wshr

- pan head

5шт.

18

159815A1

GAUGE

ASSEMBLY - liquid level (fuel quantity), includes: Refs. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - gauge

1шт.

20

NSS

NOT SOLD SEPARAT

FLOAT - indicator, red

1шт.

21

159492A1

BOLT

BOLT - special

2шт.

22

159493A1

SEALING WASHER

SEAL - washer

6шт.

23

NSS

NOT SOLD SEPARAT

COVER - indicator

1шт.

24

170857A1

NOISE PROTECTION

PAD - foam

1шт.

25

170858A1

NOISE PROTECTION

PAD - foam

1шт.

26

170859A1

NOISE PROTECTION

PAD - foam

1шт.

27

170860A1

NOISE PROTECTION

PAD - foam

1шт.

28

170855A1

NOISE PROTECTION

PAD - foam

1шт.

29

170856A1

NOISE PROTECTION

PAD - foam

1шт.

30

150605A1

FUEL TUBE

TUBE - fuel filler

1шт.
