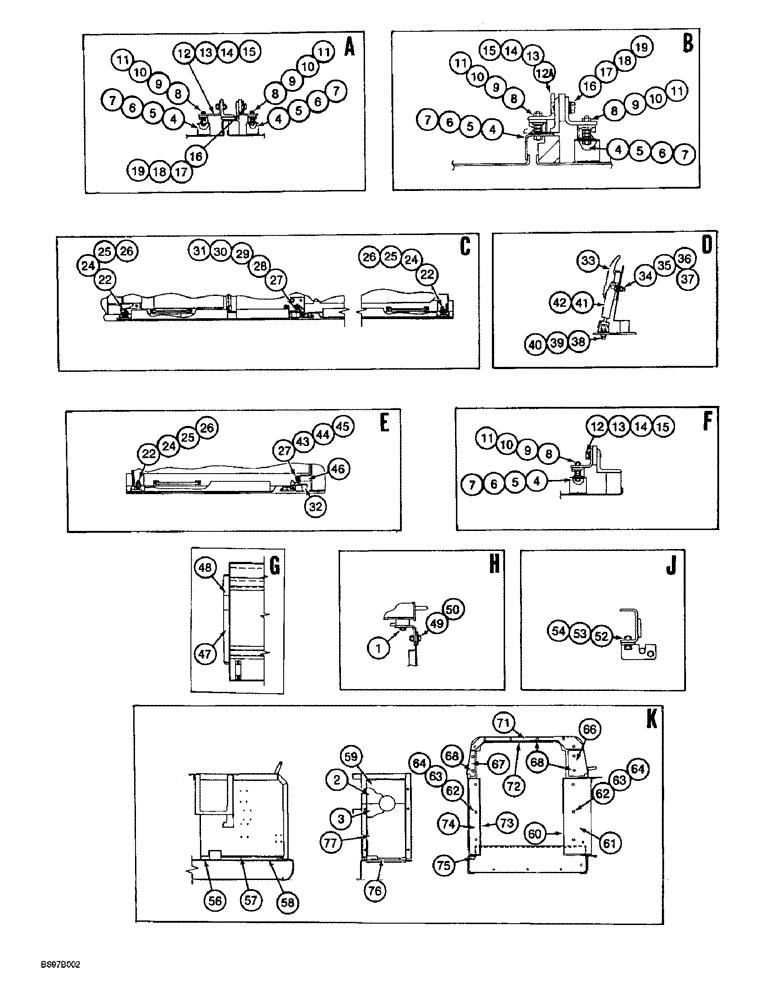

Запчасти Case 9060B (9-030) - UPPER STRUCTURE - CONTINUED, *P.I.N. EAC0601027 AND AFTER (09) - CHASSIS

1

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

70шт.

2

171045A1

COVER

- upper structure

1шт.

3

171046A1

COVER

- upper structure

1шт.

4

159099A1

STOP

PER - door

10шт.

5

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

16шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

16шт.

7

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

16шт.

8

159095A1

BRACKET

- door

10шт.

9

170326A1

BOLT

SCREW - cap, hex head

20шт.

10

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

20шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

20шт.

12

171237A1

BRACKET

- upper structure

4шт.

12a

171552A1

BRACKET

- upper structure, replaces 171314A1

2шт.

13

170361A1

SCREW

- cap, hex head

12шт.

14

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

12шт.

16

171237A1

BRACKET

- upper structure

4шт.

17

170361A1

SCREW

- cap, hex head

8шт.

18

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

22

170391A1

BOLT

- hex, high strength

6шт.

24

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

6шт.

25

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm, A

6шт.

26

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

6шт.

27

171062A1

SUPPORT

BRACKET - upper structure

2шт.

28

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

2шт.

29

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

30

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

2шт.

31

151685A1

BLOCK

SHIM - plate

2шт.

32

170494A1

SEAL

STRIP - weather, rubber

2шт.

33

150785A1

STOP LOCK

LATCH - door assembly

2шт.

34

170361A1

SCREW

- cap, hex head

4шт.

35

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

37

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

38

170361A1

SCREW

- cap, hex head

4шт.

39

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

41

151361A1

HANDLE

LATCH - hood, left-hand

1шт.

42

151356A1

LOCK ASSY

LATCH - hood, right-hand

1шт.

43

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

2шт.

44

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

45

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

2шт.

46

162376A1

SEAL

- cushion

1шт.

47

162450A1

SEAL

CUSHION - rubber

1шт.

48

170651A1

RUBBER BLOCK

CUSHION - rubber

1шт.

49

162278A1

BOLT

BOLT - flange head, special

4шт.

50

162409A1

WASHER

- flat, special

2шт.

52

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

4шт.

53

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

54

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

4шт.

56

171268A1

SEAL

STRIP - weather, rubber

1шт.

57

171236A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

58

171227A1

SEAL

STRIP - weather, rubber

1шт.

59

171267A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

60

171048A1

SEAL

STRIP - weather, rubber

1шт.

61

171047A1

COVER

- upper structure

1шт.

62

171033A1

BOLT

- special

3шт.

63

170885A1

SPACER

- mounting

3шт.

64

150811A1

WASHER

- flat, special, 12 mm

3шт.

66

171051A1

COVER

- upper structure

1шт.

67

171052A1

COVER

- upper structure

1шт.

68

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

10шт.

71

171053A1

COVER

- upper structure

1шт.

72

171054A1

SEAL

- cushion

1шт.

73

171050A1

SEAL

STRIP - weather, rubber

1шт.

74

171049A1

COVER

- upper structure

1шт.

75

171068A1

SEAL

STRIP - weather, rubber

1шт.

76

171262A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

77

171260A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

12шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

8шт.

36

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

40

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.
