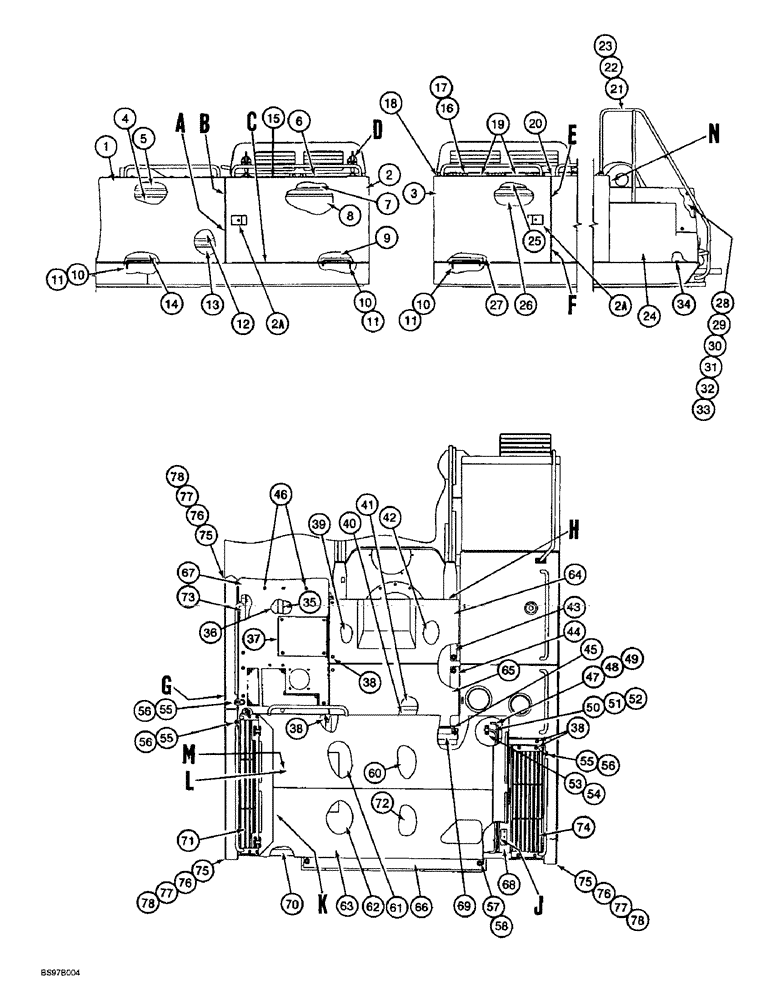

Запчасти Case 9060B (9-018) - UPPER STRUCTURE, *P.I.N. EAC0601027 AND AFTER (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
171257A1
DOOR
- left-hand, front
1шт.
2
171253A1
DOOR
- left-hand, rear
1шт.
2a
162434A1
LOCK
- door
2шт.
3
171266A1
DOOR
- right-hand, rear
1шт.
4
171259A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
5
171258A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
6
171067A1
SEAL
STRIP - weather, rubber
2шт.
7
171250A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
8
171252A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
9
171251A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
10
159101A1
STAY
HOLDER - door
3шт.
11
153181A1
COTTER PIN
CLIP - hair pin
3шт.
12
171255A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
13
171254A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
14
171256A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
15
171071A1
SEAL
STRIP - weather, rubber
1шт.
16
152819A1
HINGE
- hood
3шт.
17
627-12025
BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd
- hex, full threads, 12 - 1.75 x 25 mm, class 10.9
9шт.
18
151737A1
RUBBER BLOCK
PAD - cushion
1шт.
19
170506A1
SEAL
STRIP - weather, rubber
2шт.
20
171072A1
SEAL
STRIP - weather, rubber
1шт.
21
171069A1
BRACE
RAIL - hand, grab
1шт.
22
627-12030
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
- hex, full threads, 12 - 1.75 x 30 mm, class 10.9
5шт.
23
150811A1
WASHER
- flat, special, 12 mm
5шт.
24
171070A1
COVER
- oil cooler
1шт.
25
171263A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
26
171265A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
27
171264A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
28
171075A1
SEAL
- cushion
1шт.
29
171074A1
BRACE
STIFFENER - support
1шт.
30
171034A1
SPACER
- tubular
1шт.
31
170345A1
SCREW
- cap, hex head
4шт.
32
892-11012
LOCK WASHER,M12
WASHER, LOCK, M12
4шт.
34
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
- special
8шт.
35
171269A1
COVER
- top
1шт.
36
171238A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
37
171261A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
38
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
- special
70шт.
39
171370A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
40
171372A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
41
171371A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
42
171380A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
43
170355A1
BRACKET
- upper structure
1шт.
44
170354A1
BRACKET
- upper structure
1шт.
45
171233A1
BRACE
STAY - upper structure
1шт.
46
162278A1
BOLT
BOLT - flange head, special
5шт.
47
171411A1
BRACKET
- upper structure
2шт.
48
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
- special
4шт.
49
171492A1
BAR
- torsion
1шт.
50
173858A1
BAR
- torsion
1шт.
51
171411A1
BRACKET
- upper structure
1шт.
52
162278A1
BOLT
BOLT - flange head, special
2шт.
53
170344A1
BRACKET
- upper structure, replaces 171408A1
1шт.
54
162278A1
BOLT
BOLT - flange head, special
2шт.
55
159091A1
STOP
PER - rubber
3шт.
57
162278A1
BOLT
BOLT - flange head, special
1шт.
58
162409A1
WASHER
- flat, special
1шт.
60
171412A1
RUBBER INSULATOR
INSULATION - foam rubber
2шт.
61
171415A1
NOISE PROTECTION
INSULATION - foam rubber
1шт.
62
171414A1
RUBBER INSULATOR
INSULATION - foam rubber
1шт.
63
171416A1
HOOD
- engine access
1шт.
64
170368A1
COVER
- top
1шт.
65
170369A1
COVER
- top
1шт.
66
170351A1
COVER
- upper structure
1шт.
67
171240A1
NOISE PROTECTION
COVER - upper structure
1шт.
68
171234A1
FRAME
- upper structure
1шт.
69
171232A1
FRAME
- upper structure
1шт.
70
171231A1
FRAME
- upper structure
1шт.
71
171040A1
FRAME
- upper structure
1шт.
72
171413A1
RUBBER INSULATOR
INSULATION - acoustic
1шт.
73
171228A1
FRAME
- upper structure
1шт.
74
171041A1
FRAME
- upper structure
1шт.
75
170391A1
BOLT
- hex, high strength
6шт.
77
892-11012
LOCK WASHER,M12
WASHER, LOCK, M12
6шт.
78
829-1412
NUT,M12, Cl 10.9
- hex, 12 mm - 1.75, class 10
6шт.
56
829-1410
NUT,M10 x 1.5, Cl 10.9
3шт.
Выбрано товаров: 78
