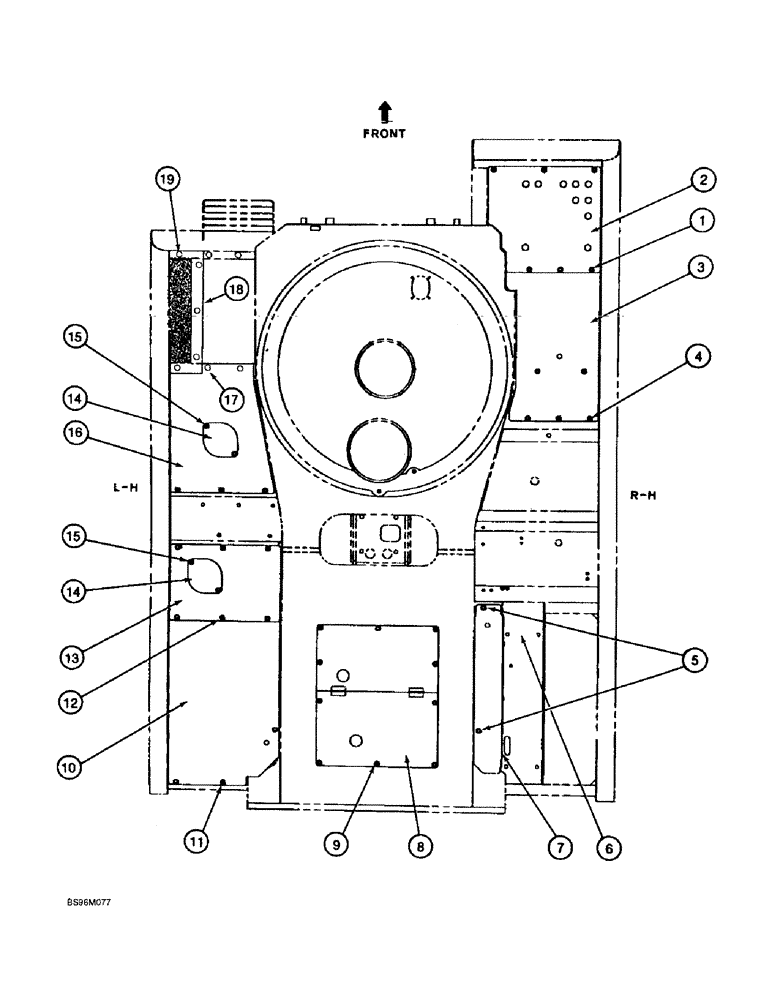

Запчасти Case 9060B (9-008) - TURNTABLE ACCESS COVERS (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
162278A1
BOLT
BOLT - flange head, special
6шт.
2
170112A1
SHEET
COVER - access, right-hand front (6 bolts)
1шт.
3
170113A1
SHEET
COVER - access, right-hand center (5 bolts)
1шт.
4
162278A1
BOLT
BOLT - flange head, special
5шт.
5
162278A1
BOLT
BOLT - flange head, special
2шт.
6
170850A1
COVER
- access, right-hand rear (5 bolts)
1шт.
7
162278A1
BOLT
BOLT - flange head, special
3шт.
8
170115A1
COVER
- access, center rear (10 bolts)
1шт.
9
162278A1
BOLT
BOLT - flange head, special
10шт.
10
170116A1
SHEET
COVER - access, left-hand rear (3 bolts)
1шт.
11
162278A1
BOLT
BOLT - flange head, special
3шт.
12
162278A1
BOLT
BOLT - flange head, special
6шт.
13
170117A1
COVER
- access, left-hand middle (6 bolts)
1шт.
14
170118A1
SHEET
COVER - access (2 bolts)
2шт.
15
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
- special
4шт.
16
170851A1
COVER
- access, left-hand front (6 bolts)
1шт.
17
162278A1
BOLT
BOLT - flange head, special
6шт.
18
170852A1
COVER
- access, left-hand front (4 bolts)
1шт.
19
162278A1
BOLT
BOLT - flange head, special
4шт.
Выбрано товаров: 19
