(8-222) - 170970A1 HYDRAULIC MOTOR ASSEMBLY

Запчасти Case 9060B (8-222) - 170970A1 HYDRAULIC MOTOR ASSEMBLY (08) - HYDRAULICS

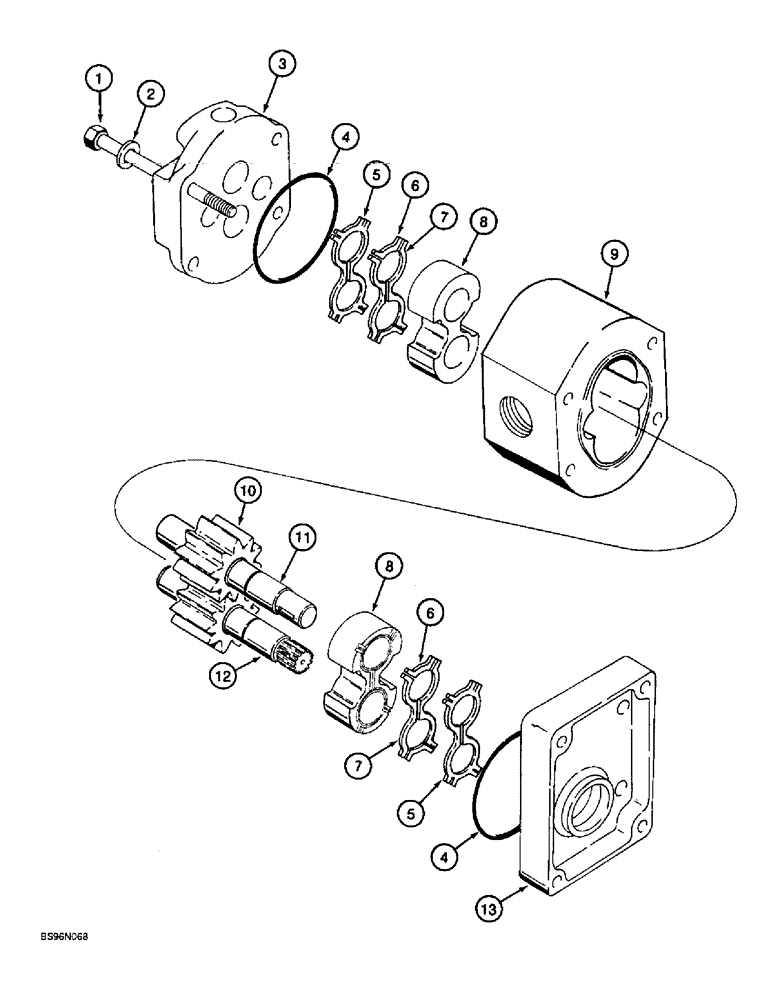

Схема запчастей Case 9060B - (8-222) - 170970A1 HYDRAULIC MOTOR ASSEMBLY (08) - HYDRAULICS
8
2
4
5
6
8
3
13
12
5
1
11
7
7
6
9
7
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

170970A1

MOTO-REDUCTION GEAR

MOTOR ASSEMBLY - hydraulic, includes: Refs. 1 - 13

1шт.

1

426-664

BOLT,Hex, 3/8" - 16 x 4", Gr 8

- hex, 3/8 NC x 4 inch, grade 8

4шт.

2

492-11038

LOCK WASHER,3/8"

4шт.

3

NSS

NOT SOLD SEPARAT

COVER - end

1шт.

171321A1

SEAL KIT

- seal repair, hydraulic motor, includes: Refs. 4 - 7

1шт.

4

171317A1

O-RING

- gear, Serial Range: housing-covers

2шт.

5

171318A1

SEAL

RING - backup, seal

2шт.

6

171319A1

SEAL

- element, side

4шт.

7

171320A1

SEAL

- element, lobe

4шт.

8

NSS

NOT SOLD SEPARAT

BUSHING - gear housing

2шт.

9

NSS

NOT SOLD SEPARAT

HOUSING - gear

1шт.

10

NSS

NOT SOLD SEPARAT

GEAR - motor

2шт.

11

NSS

NOT SOLD SEPARAT

SHAFT - parallel

1шт.

12

NSS

NOT SOLD SEPARAT

SHAFT - splined, drive

1шт.

13

NSS

NOT SOLD SEPARAT

COVER - mounting, flanged

1шт.
