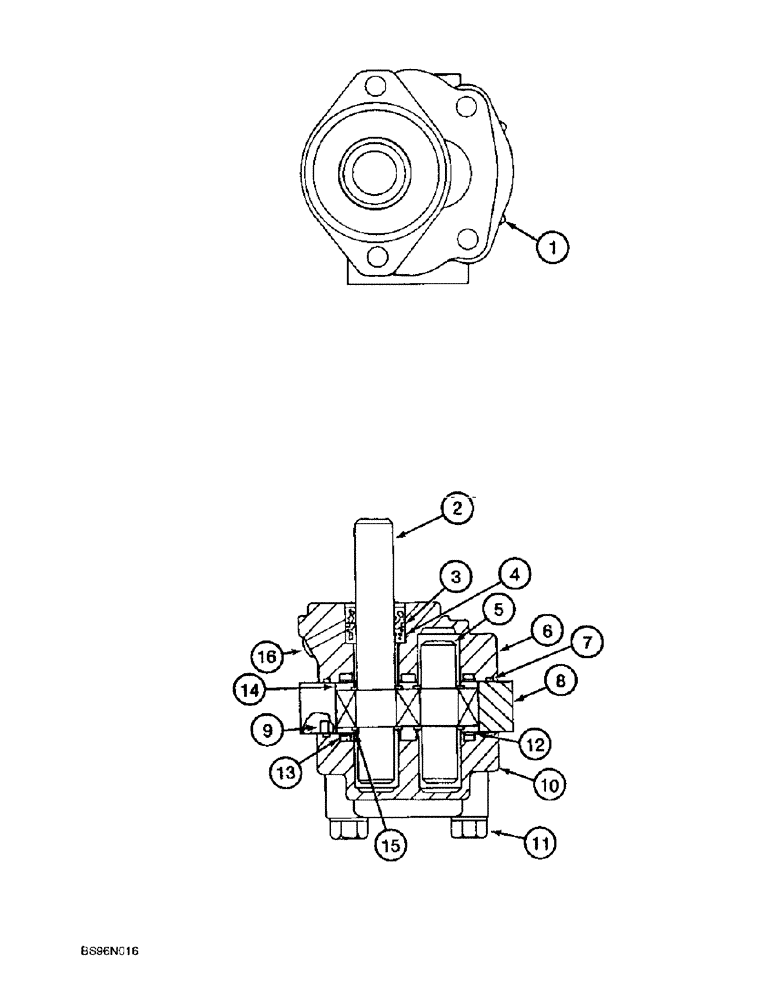

Запчасти Case 9060B (8-220) - OIL COOLER PUMP ASSEMBLY (08) - HYDRAULICS

170755A1

PUMP

ASSEMBLY - oil cooler, includes: Refs. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

SCREW - drive

2шт.

2

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

3

170758A1

RING, SNAP

RING - retaining

1шт.

4

170759A1

SEAL

- shaft

2шт.

5

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

6

NSS

NOT SOLD SEPARAT

COVER - flange end

1шт.

7

170762A1

O-RING

SEAL - cover

2шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - gear

1шт.

9

NSS

NOT SOLD SEPARAT

PIN - dowel

8шт.

10

NSS

NOT SOLD SEPARAT

COVER - port end

1шт.

11

NSS

NOT SOLD SEPARAT

BOLT - hex, cover mounting

4шт.

12

170767A1

BACK-UP RING

RING - backup, seal, cover

2шт.

13

170768A1

SEAL

O-RING - seal, cover to gear housing

2шт.

14

NSS

NOT SOLD SEPARAT

PLATE - pressure

2шт.

15

170770A1

O-RING

- gear shaft

4шт.

16

170771A1

PLUG

- port

1шт.
