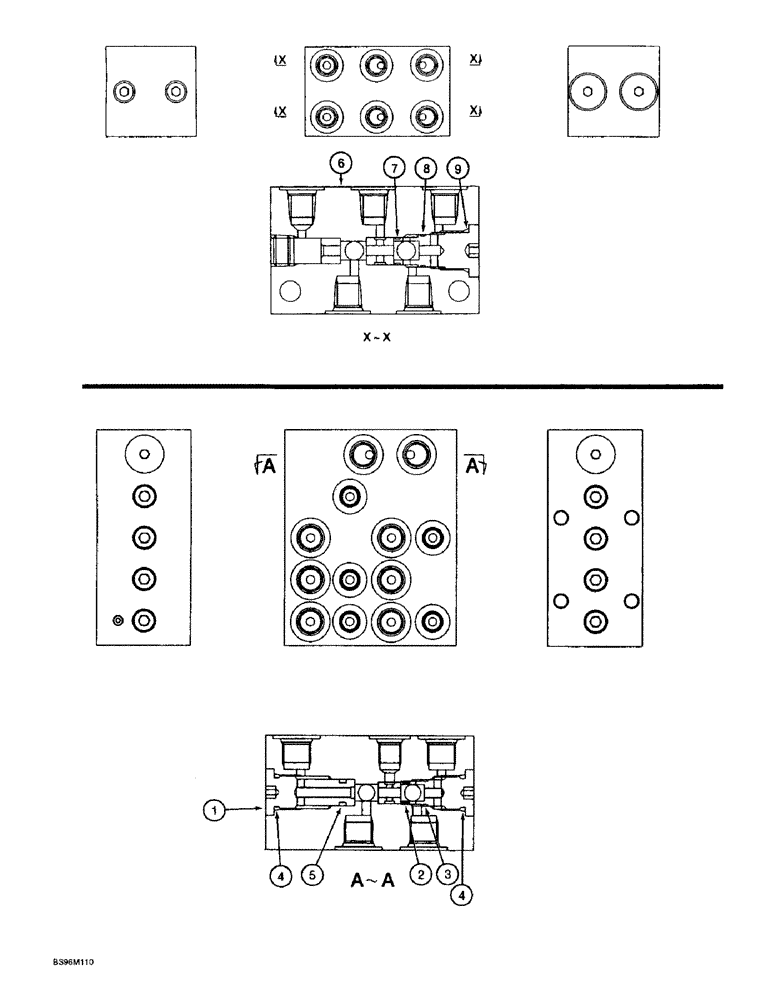

Запчасти Case 9060B (8-216) - SHUTTLE VALVE ASSEMBLIES, PILOT CONTROL SHUTTLE VALVE (08) - HYDRAULICS

162077A1

VALVE

ASSEMBLY - shuttle, pilot control, includes: Refs. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

164449A1

O-RING

- valve, seat, C, inner

1шт.

3

164448A1

O-RING

- valve, seat, C, intermediate

1шт.

4

154486A1

O-RING

- valve, seat, C and D, outer

2шт.

5

154470A1

O-RING

- valve, seat, D, inner

1шт.

KHJ17130

VALVE SECTION

VALVE ASSEMBLY - shuttle, one pedal travel, includes: Refs. 6 - 9;Replaces 160355A1

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - valve, one pedal travel shuttle

1шт.

7

164449A1

O-RING

- valve, seat, C, inner, one pedal travel shuttle

2шт.

8

164448A1

O-RING

- valve, seat, C, intermediate, one pedal travel shuttle

2шт.

9

154486A1

O-RING

- valve, seat, C, outer, one pedal travel shuttle

2шт.
