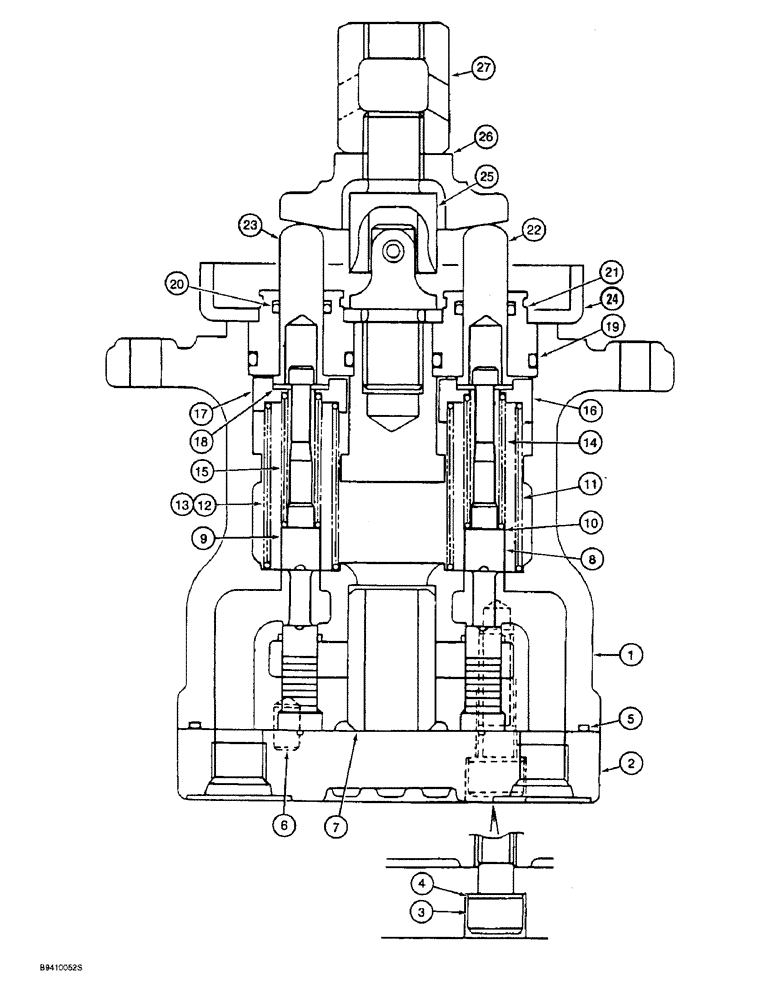

Запчасти Case 9060B (8-210) - MANUALLY OPERATED CONTROL VALVE (08) - HYDRAULICS

162097A1

VALVE

ASSEMBLY - remote control, P.I.N EAC0601026, includes: Refs. 1 - 26

1шт.

164782A1

CONTROL BLOCK

VALVE ASSEMBLY - remote control, includes: Refs. 1 - 26, Start Serial: EAC0601027

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

160310A1

COVER

PLATE - port

1шт.

3

863-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 30 mm, class 12.9

2шт.

4

NSS

NOT SOLD SEPARAT

WASHER - sealing

2шт.

Part of Seal Kit P/N 160218A1

1шт.

5

155167A1

O-RING

- end, Serial Range: plate-housing

1шт.

Part of Seal Kit P/N 160218A1

1шт.

6

738-1510

LOCK PIN,M5 x 10, Slotted

PIN - roll, 5 x 10 mm

1шт.

7

160036A1

BUSHING

- valve

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

9

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

10

160285A1

WASHER

- flat, special

4шт.

11

160252A1

SPRING

- valve, outer, port 3, 162097A1 valve only

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING - valve, outer, port 3, 164782A1 valve only

1шт.

12

160253A1

SPRING

- valve, outer, ports 2 and 4, 162097A1 valve only

2шт.

12

NSS

NOT SOLD SEPARAT

SPRING - valve, outer, ports 2 and 4, 164782A1 valve only

2шт.

13

160251A1

SPRING

- valve, outer, port 1, 162097A1 valve only

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING - valve, outer, port 1, 164782A1 valve only

1шт.

14

160953A1

SPRING

- valve, spool, inner, ports 1 and 3, 162097A1 valve only

2шт.

14

NSS

NOT SOLD SEPARAT

SPRING - valve, spool, inner, ports 1 and 3, 164782A1 valve only

2шт.

15

160954A1

SPRING

- valve, spool, inner, ports 2 and 4, 162097A1 valve only

2шт.

15

NSS

NOT SOLD SEPARAT

SPRING - valve, spool, inner, ports 2 and 4, 164782A1 valve only

2шт.

16

160234A1

SPRING SEAT

SEAT - spring (ports 1 and 3)

2шт.

17

160233A1

SPRING SEAT

SEAT - spring (ports 2 and 4)

2шт.

18

LA00056

WASHER

- flat, special; Replaces 160286A1

8шт.

19

154491A1

O-RING

- push rod guide, outer

4шт.

Part of Seal Kit P/N 160218A1

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - push rod

4шт.

Part of Seal Kit P/N 160218A1

1шт.

21

160070A1

PLUG

GUIDE - push rod

4шт.

22

160026A1

THREADED ROD

ROD - push (ports 1 and 3)

2шт.

23

160027A1

THREADED ROD

ROD - push (ports 2 and 4)

2шт.

24

160309A1

RETAINER

PLATE - push rod retaining

1шт.

25

155255A1

FLEXIBLE JOINT

PIVOT - remote control valve

1шт.

26

155577A1

PIVOTING ARM

ROCKER - remote control valve

1шт.

27

156165A1

NUT

- hex

1шт.

160218A1

SEAL KIT

KIT - seal, includes Refs 4, 5, 19 and 20

1шт.
