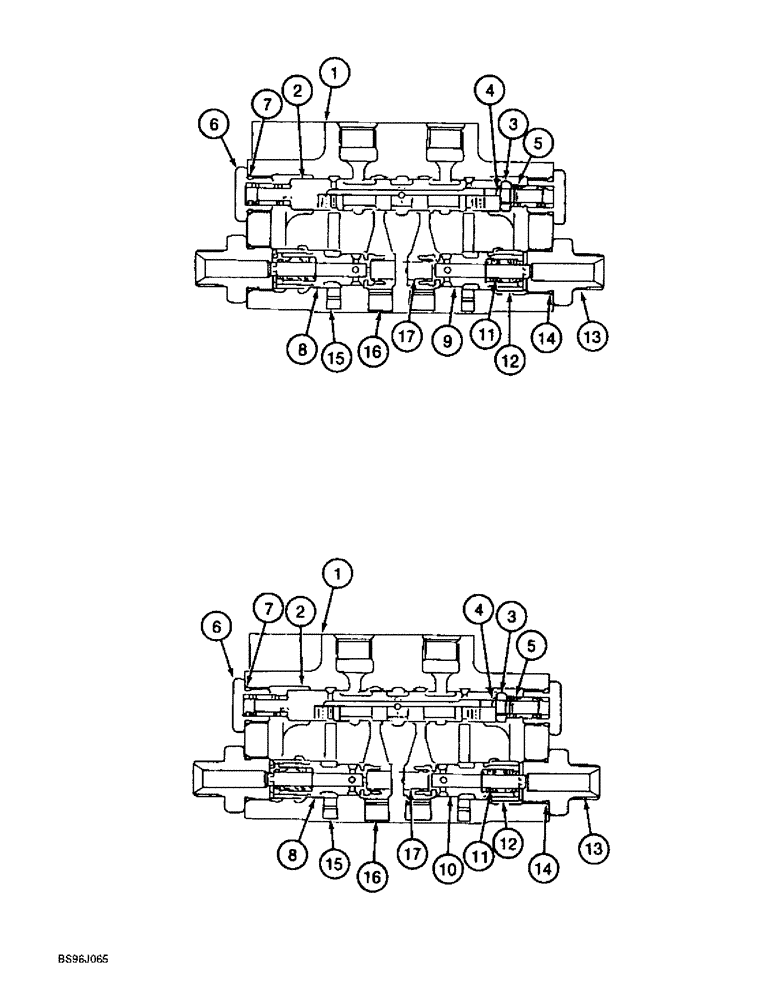

Запчасти Case 9060B (8-208) - 164931A1 CUSHION VALVE, FOR STANDARD MODELS WITHOUT LOAD HOLDING OPTION (08) - HYDRAULICS

164931A1

VALVE

ASSEMBLY - cushion, includes: Refs. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

3

160072A1

SCREW

GUIDE - spring

2шт.

4

154446A1

O-RING

- spring guide

2шт.

5

160256A1

SPRING

- compression

4шт.

6

160073A1

PLUG

- valve cavity

4шт.

7

154474A1

O-RING

- plug

4шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

9

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

11

160258A1

SPRING

- compression

4шт.

12

160092A1

COLLAR

- spool

4шт.

13

160074A1

PLUG

ADAPTER - straight

4шт.

14

154486A1

O-RING

- adapter

4шт.

15

165001A1

PLUG

- port

11шт.

16

165002A1

PLUG

- port

8шт.

17

160257A1

SPRING

- compression

4шт.
