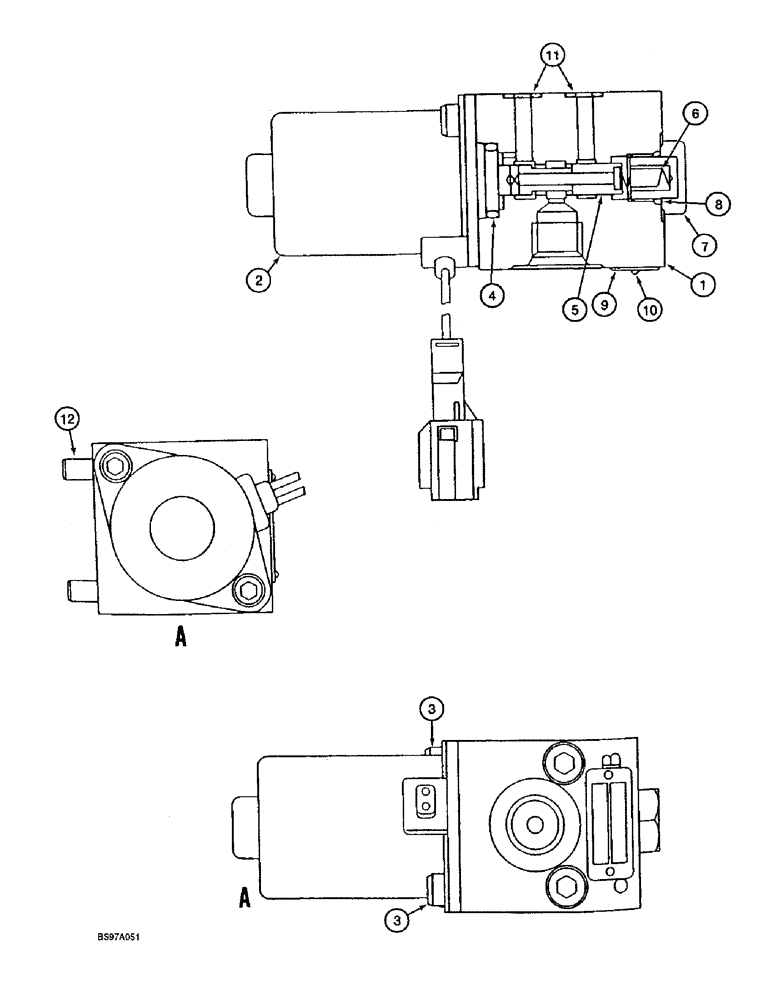

Запчасти Case 9060B (8-206) - SOLENOID VALVE, FOR COUNTERWEIGHT REMOVAL (08) - HYDRAULICS

163811A1

VALVE

ASSEMBLY - solenoid, counterweight removal, includes: Refs. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

160319A1

SOLENOID

- valve

1шт.

3

160298A1

BOLT,Hex Skt

BOLT - hex socket head, special

2шт.

4

154482A1

O-RING

- solenoid

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - compression

1шт.

7

NSS

NOT SOLD SEPARAT

PLUG - valve

1шт.

8

155203A1

O-RING

- plug

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE - name

1шт.

10

NSS

NOT SOLD SEPARAT

RIVET - nameplate

2шт.

11

163813A1

O-RING

- passage

2шт.

12

861-6045

HEX SOC SCREW,M6 x 45mm, Cl 12.9

BOLT - hex socket, 6 - 1.0 x 45 mm, class 12.9

2шт.
