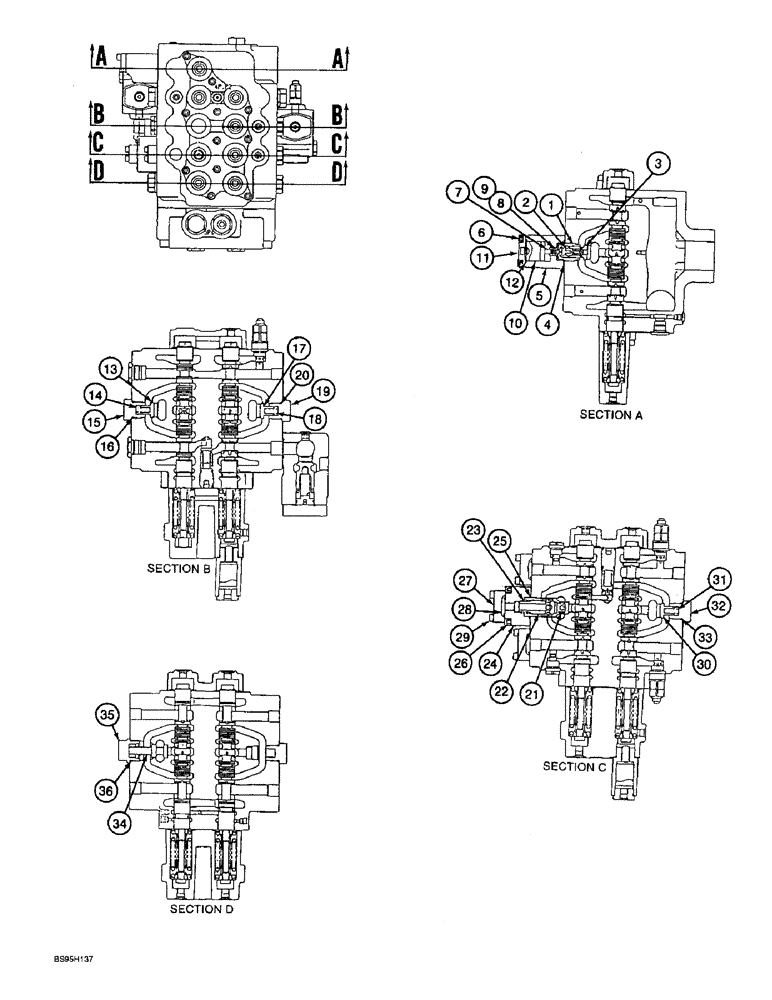

Запчасти Case 9060B (8-198) - 163643A1 AND 171225A1 CONTROL VALVES, MISCELLANEOUS VALVES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
163643A1
VALVE
ASSEMBLY - control, P.I.N. EAC0601026, parts list Figures 8-178 thru 8-198, includes: Refs. 1 - 36
1шт.
171225A1
VALVE
ASSEMBLY - control, parts list Figures 8-178 thru 8-198, includes: Refs. 1 - 36, Start Serial: EAC0601027
1шт.
NSS
NOT SOLD SEPARAT
VALVE ASSEMBLY - relief, includes: Refs. 1 - 12
1шт.
1
163990A1
SLEEVE
- valve
1шт.
2
164063A1
SPRING
- compression
1шт.
3
163971A1
VALVE POPPET
PLUNGER - valve
1шт.
4
154595A1
O-RING
- housing
1шт.
5
164087A1
BODY
HOUSING - relief valve
1шт.
6
164105A1
BOLT,Hex Skt
BOLT - special
4шт.
7
163991A1
PISTON
- valve
1шт.
8
154475A1
O-RING
- piston
1шт.
9
153961A1
BACK-UP RING
RING - backup
1шт.
10
163992A1
PISTON
- valve
1шт.
11
164089A1
FLANGE
COVER - relief valve
1шт.
12
154599A1
O-RING
- cover
1шт.
NSS
NOT SOLD SEPARAT
VALVE ASSEMBLY - relief, includes: Refs. 13 - 16
1шт.
13
157359A1
VALVE POPPET
PISTON - valve
1шт.
14
157360A1
SPRING
- compression
1шт.
15
157361A1
PLUG
- port
1шт.
16
154539A1
O-RING
- plug
1шт.
NSS
NOT SOLD SEPARAT
VALVE ASSEMBLY - relief, includes: Refs. 17 - 20
1шт.
17
157359A1
VALVE POPPET
PISTON - valve
1шт.
18
157360A1
SPRING
- compression
1шт.
19
157361A1
PLUG
- port
1шт.
20
154539A1
O-RING
- plug
1шт.
NSS
NOT SOLD SEPARAT
VALVE ASSEMBLY - relief, includes: Refs. 21 - 29
1шт.
21
163993A1
SLEEVE
- valve
1шт.
22
163994A1
VALVE POPPET
PLUNGER - valve
1шт.
23
164064A1
SPRING
- compression
1шт.
24
164091A1
FLANGE
COVER - valve
1шт.
25
154599A1
O-RING
- cover
1шт.
26
164075A1
BOLT,Hex Skt
BOLT - special
4шт.
27
156278A1
COVER
PLATE - auxiliary port cover
1шт.
28
164447A1
O-RING
- plate
1шт.
29
160288A1
BOLT,Hex Skt
BOLT - hex socket, special
4шт.
NSS
NOT SOLD SEPARAT
VALVE ASSEMBLY - relief, includes: Refs. 30 - 33
1шт.
30
157359A1
VALVE POPPET
PISTON - valve
1шт.
31
157360A1
SPRING
- compression
1шт.
32
157361A1
PLUG
- port
1шт.
33
154539A1
O-RING
- plug
1шт.
NSS
NOT SOLD SEPARAT
VALVE ASSEMBLY - relief, includes: Refs. 34 - 36
1шт.
34
157366A1
SLEEVE
- valve
1шт.
35
157352A1
PLUG
- special
1шт.
36
154583A1
O-RING
- plug
1шт.
Выбрано товаров: 44
