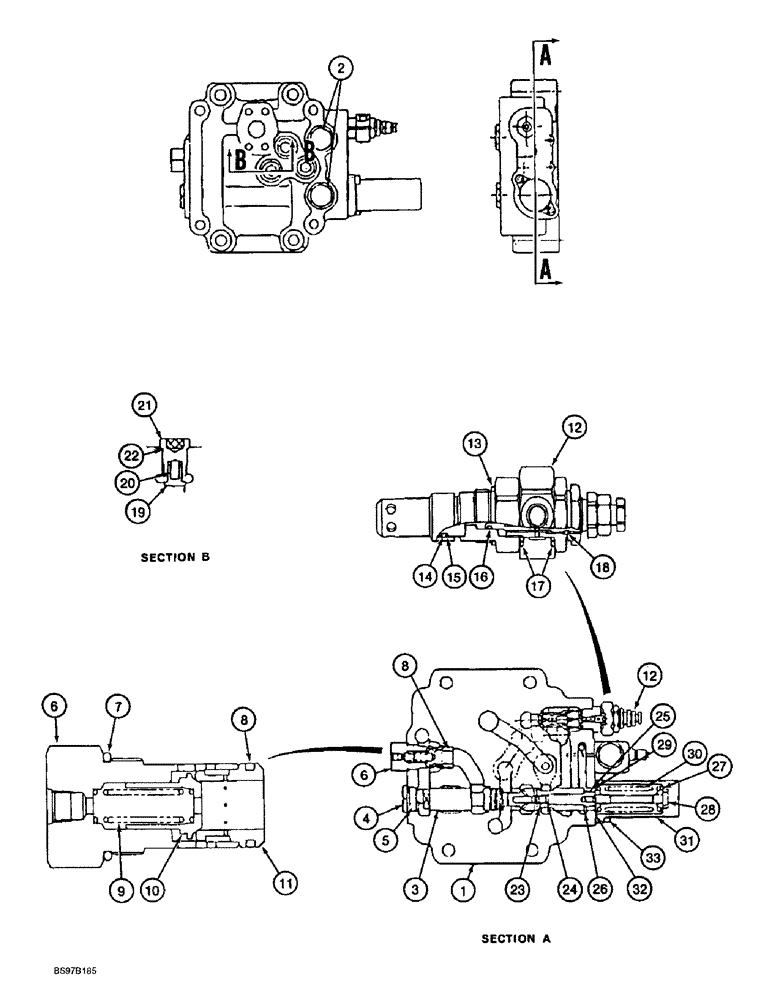

Запчасти Case 9060B (8-194) - 163643A1 AND 171225A1 CONTROL VALVES, 163969A1 AND 165727A1 BASE COVER VALVES (08) - HYDRAULICS

163969A1

LARGE PLATE

VALVE ASSEMBLY - base cover, P.I.N. EAC0601026, parts list Figures 8-178 thru 8-198, includes: Refs. 1 - 33

1шт.

165727A1

HYD VALVE SECTION

VALVE ASSEMBLY - base cover, parts list Figures 8-178 thru 8-198, includes: Refs. 1 - 33, Start Serial: EAC0601027

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

155453A1

PLUG

- port

2шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

4

157334A1

PLUG

- port

1шт.

5

168802A1

O-RING

- plug

1шт.

6

157335A1

VALVE

- relief, includes: Refs. 7 - 11

1шт.

7

168802A1

O-RING

- relief valve

1шт.

8

154528A1

O-RING

- relief valve

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

10

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

11

NSS

NOT SOLD SEPARAT

SLEEVE - relief valve

1шт.

12

164458A1

VALVE

ASSEMBLY - relief, P.I.N. EAC0601026, includes: Refs. 13 - 18

1шт.

12

165729A1

VALVE, PRESSURE RELI

VALVE ASSEMBLY - relief, includes: Refs. 13 - 18, Start Serial: EAC0601027

1шт.

13

155225A1

O-RING

- relief valve

1шт.

14

164574A1

O-RING

- relief valve

1шт.

15

153976A1

BACK-UP RING

RING - backup

1шт.

16

154463A1

O-RING

- relief valve

1шт.

17

154538A1

O-RING

- relief valve

2шт.

18

155222A1

O-RING

- relief valve

1шт.

19

160189A1

WELL

PLUNGER - valve

3шт.

20

160243A1

SPRING

- compression

3шт.

21

155462A1

PLUG

- special

3шт.

22

155224A1

O-RING

- plug

3шт.

23

155905A1

VALVE

PLUNGER - valve

1шт.

24

156016A1

SPRING

- compression

1шт.

25

157337A1

PLUG

PLUNGER - valve

1шт.

26

155221A1

O-RING

SEAL - plunger

1шт.

27

157339A1

SPRING SEAT

SEAT - spring

1шт.

28

157338A1

CAP

RETAINER - spring seat

1шт.

29

157339A1

SPRING SEAT

SEAT - spring

1шт.

30

157340A1

SPRING

- compression

1шт.

31

157341A1

CAP

- valve

1шт.

32

164451A1

O-RING

- cap

1шт.

33

164500A1

BOLT

BOLT - special

2шт.
