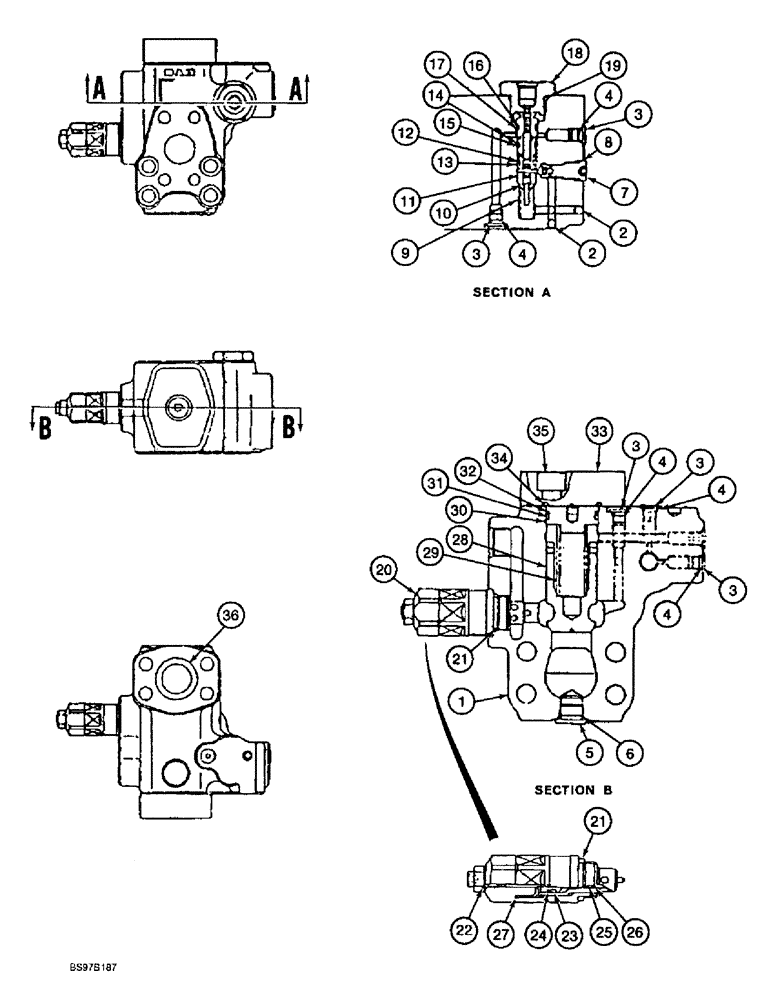

Запчасти Case 9060B (8-192) - 163643A1 AND 171225A1 CONTROL VALVES, 163974A1 AND 165728A1 ANTI-DRIFT VALVES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
163974A1
VALVE
ASSEMBLY - anti-drift, P.I.N. EAC0601026, parts list Figures 8-178 thru 8-198, includes: Refs. 1 - 36
2шт.
165728A1
VALVE
ASSEMBLY - anti-drift, parts list Figures 8-178 thru 8-198, includes: Refs. 1 - 36, Start Serial: EAC0601027
2шт.
1
NSS
NOT SOLD SEPARAT
HOUSING - valve
1шт.
2
NSS
NOT SOLD SEPARAT
BALL - steel
2шт.
3
163368A1
PLUG
- port, includes: Ref. 4
5шт.
5
163369A1
PLUG
- port, includes: Ref. 6
1шт.
6
154475A1
O-RING
- plug
1шт.
7
164470A1
PLUG
- special, includes: Ref. 8
1шт.
8
154467A1
O-RING,10.8mm ID x 2.4mm Width
- plug
1шт.
9
164498A1
SPRING
- compression
1шт.
10
164488A1
SPRING SEAT
SEAT - spring
1шт.
11
NSS
NOT SOLD SEPARAT
SPOOL - valve, includes: Refs. 12 - 17
1шт.
12
155086A1
O-RING
- spool
1шт.
13
154420A1
RING
- backup
1шт.
14
154466A1
O-RING
- spool
1шт.
15
153955A1
O-RING
RING - backup
1шт.
16
154470A1
O-RING
- spool
1шт.
17
153958A1
BACK-UP RING
RING - backup
1шт.
18
164469A1
PLUG
- port, includes: Ref. 19
1шт.
20
163379A1
VALVE
ASSEMBLY - relief, P.I.N. EAC0601026, includes: Refs. 21 - 27
1шт.
20
164457A1
VALVE
ASSEMBLY - relief, includes: Refs. 21 - 27, Start Serial: EAC0601027
1шт.
22
154463A1
O-RING
- relief valve
1шт.
23
164906A1
O-RING
- relief valve
1шт.
24
164905A1
BACK-UP RING
RING - backup
2шт.
25
163323A1
O-RING
- relief valve
1шт.
26
164575A1
BACK-UP RING
RING - backup
2шт.
28
164486A1
VALVE POPPET
PLUNGER - valve
1шт.
29
164497A1
SPRING
- compression
1шт.
30
164487A1
SPACER
SEAT - spring
1шт.
31
154542A1
O-RING
- spring seat
1шт.
32
154012A1
BACK-UP RING
RING - backup
1шт.
33
164503A1
FLANGE
COVER - valve assembly
1шт.
35
164501A1
BOLT
BOLT - special
4шт.
36
154558A1
O-RING
- flange port
1шт.
Выбрано товаров: 39
