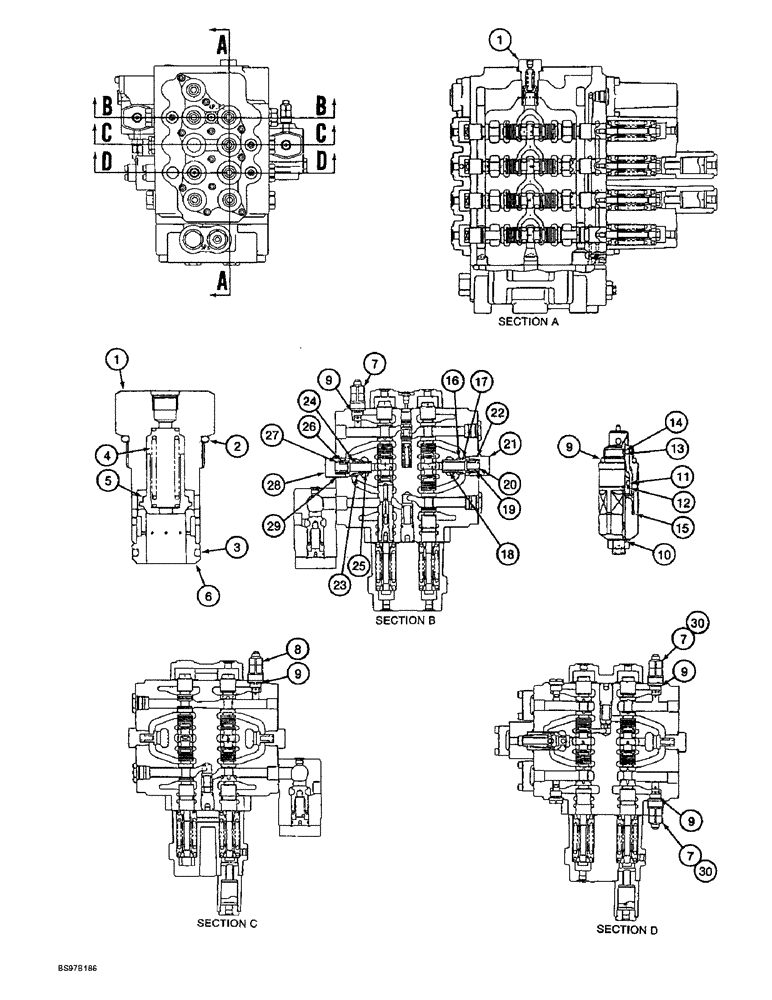

Запчасти Case 9060B (8-190) - 163643A1 AND 171225A1 CONTROL VALVES, WORKING CIRCUIT RELIEF VALVES (08) - HYDRAULICS

163643A1

VALVE

ASSEMBLY - control, P.I.N. EAC0601026, parts list Figures 8-178 thru 8-198, includes: Refs. 1 - 30

1шт.

171225A1

VALVE

ASSEMBLY - control, parts list Figures 8-178 thru 8-198, includes: Refs. 1 - 30, Start Serial: EAC0601027

1шт.

1

157335A1

VALVE

- relief, includes:Refs. 2 - 6

1шт.

2

168802A1

O-RING

- relief valve

1шт.

3

154528A1

O-RING

- relief valve

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

5

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

6

NSS

NOT SOLD SEPARAT

SLEEVE - relief valve

1шт.

7

164457A1

VALVE

ASSEMBLY - relief, includes: Refs. 9 - 15

3шт.

8

163380A1

VALVE

ASSEMBLY - relief, includes: Refs. 9 - 15

1шт.

9

155223A1

O-RING

- relief valve

1шт.

10

154463A1

O-RING

- relief valve

1шт.

11

164906A1

O-RING

- relief valve

1шт.

12

164905A1

BACK-UP RING

RING - backup, relief valve

2шт.

13

163323A1

O-RING

- relief valve

1шт.

14

164575A1

BACK-UP RING

RING - backup, relief valve

2шт.

15

155223A1

O-RING

- relief valve

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - relief, includes: Refs. 16 - 22

1шт.

16

157369A1

VALVE POPPET

POPPET - check

1шт.

17

157370A1

SPRING

- compression

1шт.

18

157354A1

SLEEVE

- valve

1шт.

19

157353A1

VALVE POPPET

PISTON - valve

1шт.

20

157351A1

SPRING

- compression

1шт.

21

157352A1

PLUG

- special

1шт.

22

154583A1

O-RING

- plug

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - relief, includes: Refs. 23 - 29

1шт.

23

163986A1

VALVE POPPET

PLUNGER - valve

1шт.

24

164062A1

SPRING

- compression

1шт.

25

157364A1

SLEEVE

- valve

1шт.

26

157353A1

VALVE POPPET

PISTON - valve

1шт.

27

157351A1

SPRING

- compression

1шт.

28

157352A1

PLUG

- special

1шт.

29

154583A1

O-RING

- plug

1шт.

30

157249A1

VALVE PRESSURE RELIE

VALVE - port relief, for models with auxiliary hydraulics, includes: Ref. 9 - 15

2шт.
