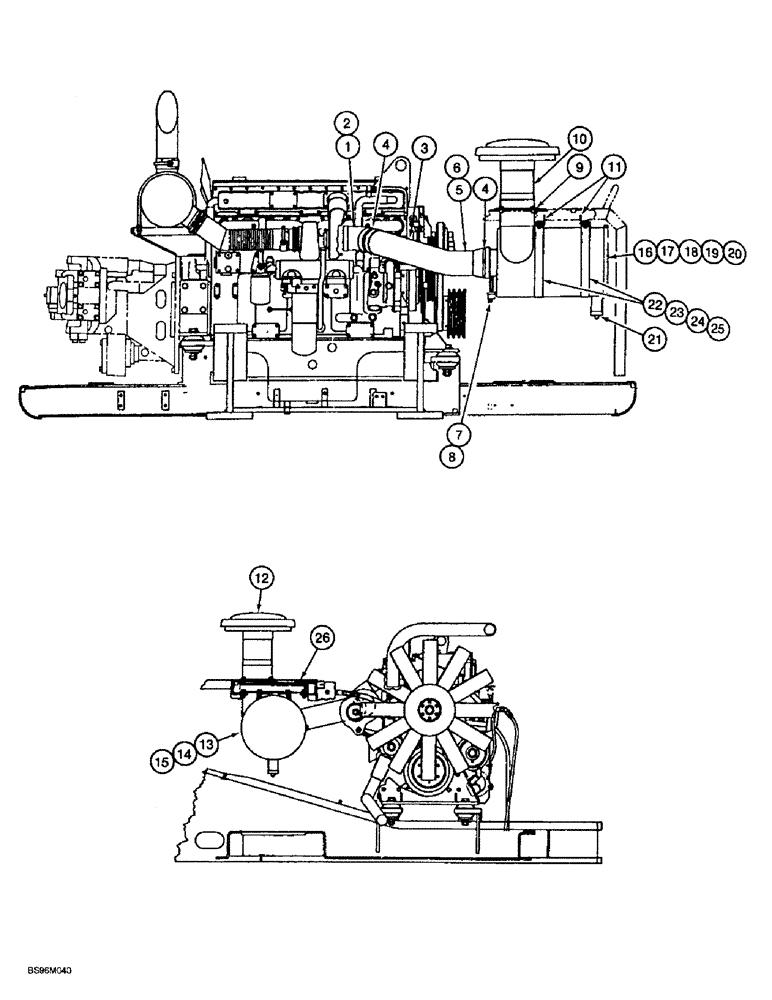

Запчасти Case 9060B (2-10) - AIR CLEANER SYSTEM, *P.I.N. EAC0601026 ONLY (02) - ENGINE

1

170866A1

ELBOW

- turbocharger intake

1шт.

2

170075A1

CLAMP

- hose

1шт.

3

170864A1

AIR INTAKE TUBE,127 mm OD

TUBE - air intake, air cleaner

1шт.

4

170871A1

CLAMP

- hose

2шт.

5

170862A1

ELBOW

- air intake, air cleaner

1шт.

6

170871A1

CLAMP

- hose

1шт.

7

150042A1

SENSOR

SWITCH - air restriction indicator

1шт.

8

150116A1

SOCKET

ADAPTER - switch

1шт.

9

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

8шт.

10

170632A1

AIR INTAKE TUBE

TUBE - air inlet

1шт.

11

170271A1

BRACKET

- mounting

1шт.

12

150786A1

CAP

COVER - air inlet, air cleaner

1шт.

NSS

NOT SOLD SEPARAT

CLEANER ASSEMBLY - air, includes: Refs. 13 - 21

1шт.

13

162965A1

CLEANER ASSY.

BODY ASSEMBLY - air cleaner, includes: Refs. 14 - 21

1шт.

14

151397A1

AIR FILTER

ELEMENT - inner, air cleaner

1шт.

15

150783A1

ELEMENT

- outer, air cleaner

1шт.

16

163725A1

CASE

BODY - air cleaner

1шт.

17

163726A1

COVER ASSY

COVER - air cleaner, includes: Ref. 17A

1шт.

17a

156676A1

NUT

- wing type, not shown

1шт.

18

156678A1

NUT

NUT - wing type, outer element, includes gasket

1шт.

19

156679A1

NUT

NUT - wing type, inner element, includes gasket

1шт.

20

157236A1

GASKET

- cover

1шт.

21

156680A1

VALVE

CUP - dust

1шт.

22

162964A1

MOUNTING CLIP

BRACKET - mounting, air cleaner

2шт.

23

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

25

892-11010

LOCK WASHER,M10

4шт.

26

170879A1

COVER

- access

1шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

4шт.
