(8-188) - 163643A1 AND 171225A1 CONTROL VALVES, MAIN VALVE COVERS AND RELATED COMPONENTS

Запчасти Case 9060B (8-188) - 163643A1 AND 171225A1 CONTROL VALVES, MAIN VALVE COVERS AND RELATED COMPONENTS (08) - HYDRAULICS

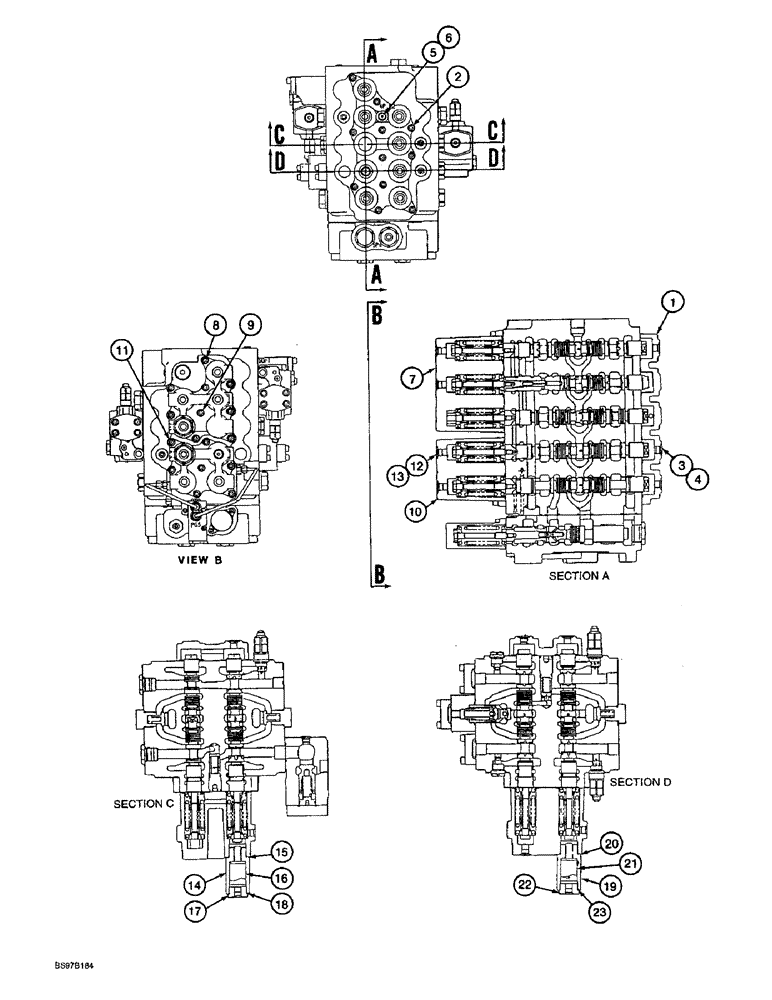

Схема запчастей Case 9060B - (8-188) - 163643A1 AND 171225A1 CONTROL VALVES, MAIN VALVE COVERS AND RELATED COMPONENTS (08) - HYDRAULICS
11
1
16
8
17
2
7
9
20
15
23
4
5
12
13
10
6
19
18
14
21
3
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

163643A1

VALVE

ASSEMBLY - control, P.I.N. EAC0601026, parts list Figures 8-178 thru 8-198, includes: Refs. 1 - 23

1шт.

171225A1

VALVE

ASSEMBLY - control, parts list Figures 8-178 thru 8-198, includes: Refs. 1 - 23, Start Serial: EAC0601027

1шт.

1

163987A1

CAP

COVER - valve, multiple

1шт.

2

164074A1

BOLT,Hex Skt

BOLT - special

10шт.

3

163369A1

PLUG

- port, includes: Ref. 4

1шт.

4

154475A1

O-RING

- plug (not shown)

1шт.

5

163972A1

PLUG

- port, includes: Ref. 6

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug (not shown)

1шт.

7

165730A1

CAP

COVER - valve, multiple

1шт.

8

164074A1

BOLT,Hex Skt

BOLT - special

8шт.

9

164075A1

BOLT,Hex Skt

BOLT - special

1шт.

10

163989A1

CAP

COVER - valve, multiple

1шт.

11

164074A1

BOLT,Hex Skt

BOLT - special

8шт.

12

163369A1

PLUG

- port, includes: Ref. 13

1шт.

13

154475A1

O-RING

- plug (not shown)

1шт.

14

163999A1

CAP

BODY - valve

1шт.

15

168802A1

O-RING

- valve body

1шт.

16

164000A1

PISTON

SPOOL - valve

1шт.

17

163998A1

PLUG

- port

1шт.

18

168802A1

O-RING

- plug

1шт.

19

163999A1

CAP

BODY - valve

1шт.

20

168802A1

O-RING

- valve body

1шт.

21

164000A1

PISTON

SPOOL - valve

1шт.

22

163998A1

PLUG

- port

1шт.

23

168802A1

O-RING

- plug

1шт.
