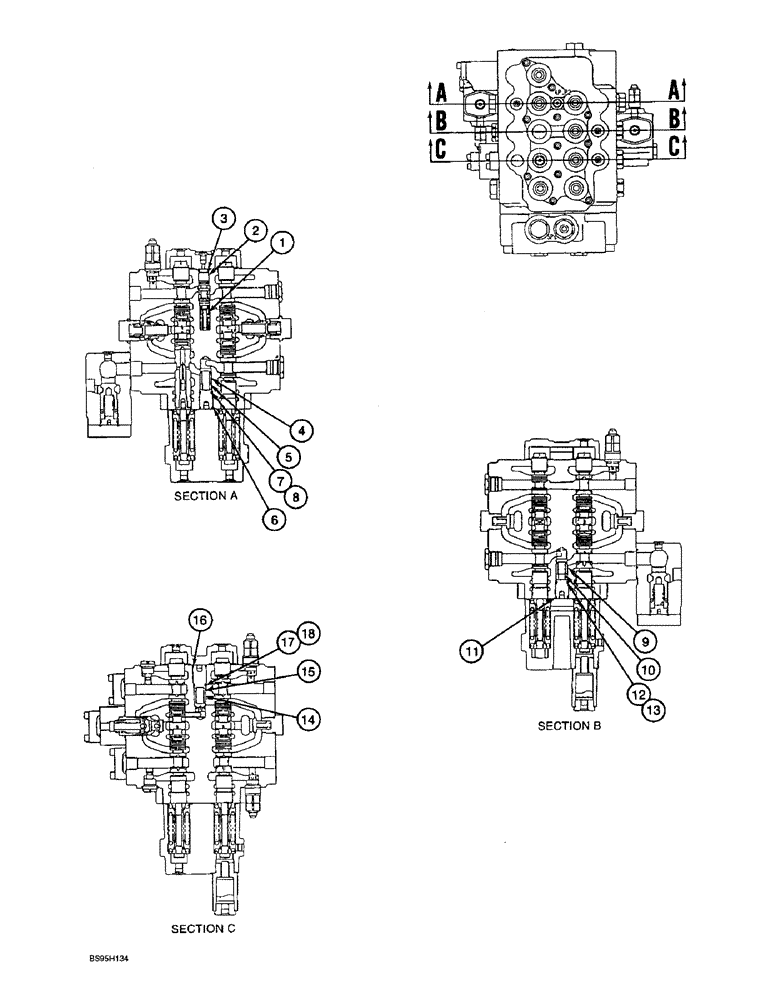

Запчасти Case 9060B (8-186) - 163643A1 AND 171225A1 CONTROL VALVES, MISCELLANEOUS INTERNAL RELIEF VALVES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
163643A1
VALVE
ASSEMBLY - control, P.I.N. EAC0601026, parts list Figures 8-178 thru 8-198, includes: Refs. 1 - 18
1шт.
171225A1
VALVE
ASSEMBLY - control, parts list Figures 8-178 thru 8-198, includes: Refs. 1 - 18, Start Serial: EAC0601027
1шт.
NSS
NOT SOLD SEPARAT
VALVE ASSEMBLY - relief, includes: Refs. 1 - 3
1шт.
1
164065A1
SPRING
- compression
1шт.
2
NSS
NOT SOLD SEPARAT
SPOOL - valve
1шт.
3
154507A1
O-RING
- spool
1шт.
NSS
NOT SOLD SEPARAT
VALVE ASSEMBLY - relief, includes: Refs. 4 - 8
1шт.
4
157355A1
WELL
PLUNGER - valve
1шт.
5
157351A1
SPRING
- compression
1шт.
6
157356A1
PLUG
- port
1шт.
7
155095A1
O-RING
- plug
1шт.
8
154426A1
BACK-UP RING
RING - backup
1шт.
NSS
NOT SOLD SEPARAT
VALVE ASSEMBLY - relief, includes: Refs. 9 - 13
1шт.
9
157355A1
WELL
PLUNGER - valve
1шт.
10
157351A1
SPRING
- compression
1шт.
11
157356A1
PLUG
- port
1шт.
12
155095A1
O-RING
- plug
1шт.
13
154426A1
BACK-UP RING
RING - backup
1шт.
NSS
NOT SOLD SEPARAT
VALVE ASSEMBLY - relief, includes: Refs. 14 - 18
1шт.
14
157358A1
VALVE POPPET
PLUNGER - valve
1шт.
15
157351A1
SPRING
- compression
1шт.
16
157357A1
PLUG
- port
1шт.
17
155095A1
O-RING
- plug
1шт.
18
154426A1
BACK-UP RING
RING - backup
1шт.
Выбрано товаров: 24
