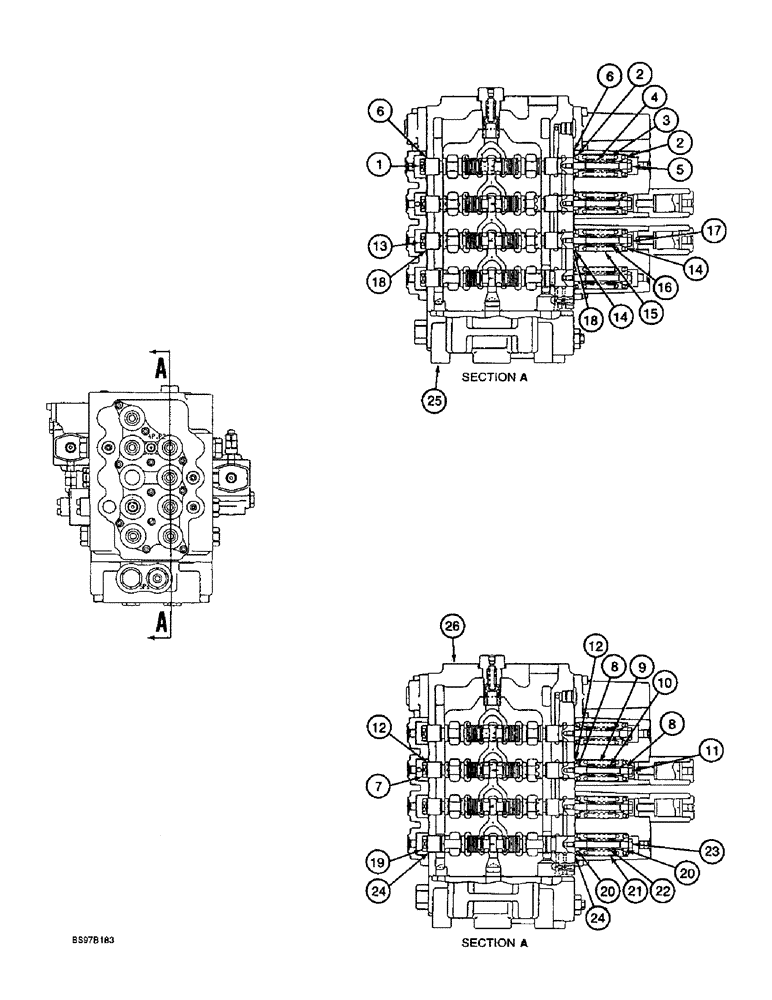

Запчасти Case 9060B (8-184) - 163643A1 AND 171225A1 CONTROL VALVES, MAIN PILOT VALVES, FOUR-SPOOL VALVE BANK (08) - HYDRAULICS

163643A1

VALVE

ASSEMBLY - control, P.I.N. EAC0601026, parts list Figures 8-178 thru 8-198, includes: Refs. 1 - 26

1шт.

171225A1

VALVE

ASSEMBLY - control, parts list Figures 8-178 thru 8-198, includes: Refs. 1 - 26, Start Serial: EAC6061027

1шт.

1

NSS

NOT SOLD SEPARAT

SPOOL - valve, arm 2

1шт.

2

157339A1

SPRING SEAT

SEAT - spring

2шт.

3

157344A1

SPRING

- compression

1шт.

4

157345A1

SPRING

- compression

1шт.

5

157338A1

CAP

RETAINER - spring seat

1шт.

6

154623A1

O-RING

- spool

2шт.

7

NSS

NOT SOLD SEPARAT

SPOOL - valve, boom 1

1шт.

8

157339A1

SPRING SEAT

SEAT - spring

2шт.

9

157344A1

SPRING

- compression

1шт.

10

157345A1

SPRING

- compression

1шт.

11

157338A1

CAP

RETAINER - spring seat

1шт.

12

154623A1

O-RING

- spool

2шт.

13

NSS

NOT SOLD SEPARAT

SPOOL - valve, bucket

1шт.

14

157339A1

SPRING SEAT

SEAT - spring

2шт.

15

157344A1

SPRING

- compression

1шт.

16

157345A1

SPRING

- compression

1шт.

17

157338A1

CAP

RETAINER - spring seat

1шт.

18

154623A1

O-RING

- spool

2шт.

19

NSS

NOT SOLD SEPARAT

SPOOL - valve, travel, forward

1шт.

20

157339A1

SPRING SEAT

SEAT - spring

2шт.

21

157344A1

SPRING

- compression

1шт.

22

157345A1

SPRING

- compression

1шт.

23

157338A1

CAP

RETAINER - spring seat

1шт.

24

154623A1

O-RING

- spool

2шт.

25

163969A1

LARGE PLATE

VALVE ASSEMBLY - base cover, 163643A1 valve, parts list Figure 8-194

1шт.

25

165727A1

HYD VALVE SECTION

VALVE ASSEMBLY - base cover, 171225A1 valve, parts list Figure 8-194

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.
