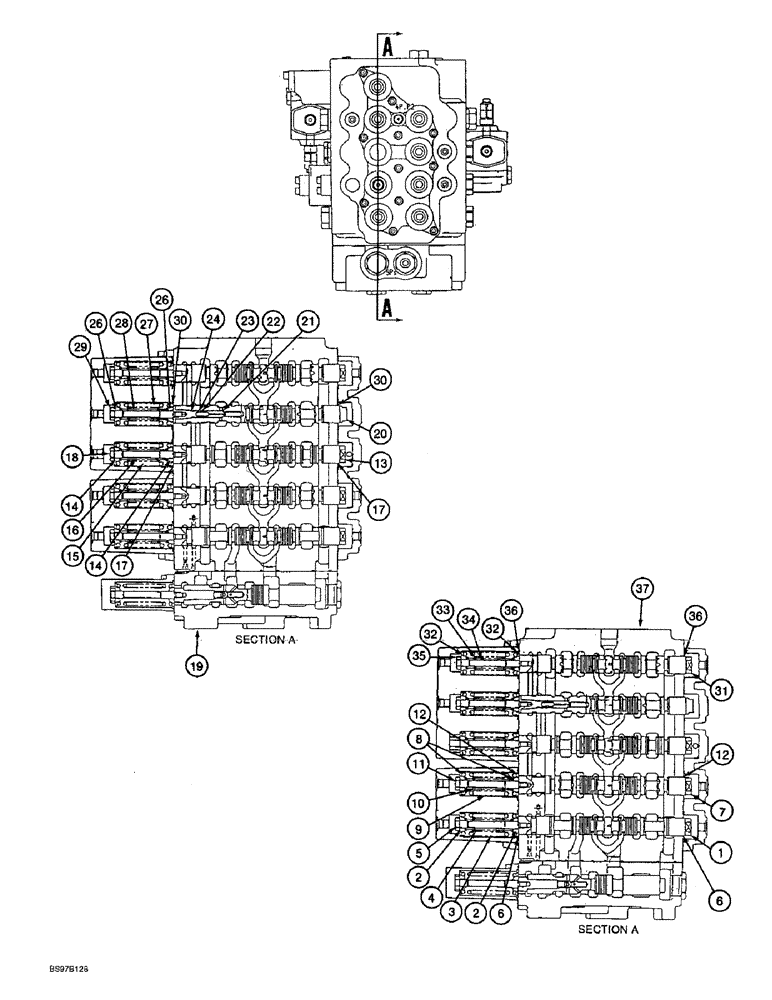

Запчасти Case 9060B (8-182) - 163643A1 AND 171225A1 CONTROL VALVES, MAIN PILOT VALVES, FIVE-SPOOL VALVE BANK (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
163643A1
VALVE
ASSEMBLY - control, P.I.N. EAC0601026, parts list Figures 8-178 thru 8-198, includes: Refs. 1 - 37
1шт.
171225A1
VALVE
ASSEMBLY - control, parts list Figures 8-178 thru 8-198, includes: Refs. 1 - 37, Start Serial: EAC0601027
1шт.
1
NSS
NOT SOLD SEPARAT
SPOOL - valve, travel, reverse
1шт.
2
157339A1
SPRING SEAT
SEAT - spring
2шт.
3
157344A1
SPRING
- compression
1шт.
4
157345A1
SPRING
- compression
1шт.
5
157338A1
CAP
RETAINER - spring seat
1шт.
6
154623A1
O-RING
- spool
2шт.
7
NSS
NOT SOLD SEPARAT
SPOOL - valve, service
1шт.
8
157339A1
SPRING SEAT
SEAT - spring
2шт.
9
157344A1
SPRING
- compression
1шт.
10
157345A1
SPRING
- compression
1шт.
11
157338A1
CAP
RETAINER - spring seat
1шт.
12
154623A1
O-RING
- spool
2шт.
13
NSS
NOT SOLD SEPARAT
SPOOL - valve, boom 2
1шт.
14
157339A1
SPRING SEAT
SEAT - spring
2шт.
15
157344A1
SPRING
- compression
1шт.
16
157345A1
SPRING
- compression
1шт.
17
154623A1
O-RING
- spool
2шт.
18
157338A1
CAP
RETAINER - spring seat
1шт.
19
163969A1
LARGE PLATE
VALVE ASSEMBLY - base cover, 163643A1 valve, parts list Figure 8-194
1шт.
19
165727A1
HYD VALVE SECTION
VALVE ASSEMBLY - base cover, 171225A1 valve, parts list Figure 8-194
1шт.
20
NSS
NOT SOLD SEPARAT
SPOOL - valve, arm 1
1шт.
21
160183A1
WELL
POPPET - valve spool
1шт.
22
160589A1
SPRING
- compression
1шт.
23
163997A1
PLUG
- special
1шт.
24
155087A1
O-RING
- plug
1шт.
25
154420A1
RING
- backup
1шт.
26
157339A1
SPRING SEAT
SEAT - spring
2шт.
27
157344A1
SPRING
- compression
1шт.
28
157345A1
SPRING
- compression
1шт.
29
157338A1
CAP
RETAINER - spring seat
1шт.
30
154623A1
O-RING
- spool
2шт.
31
NSS
NOT SOLD SEPARAT
SPOOL - valve, swing
1шт.
32
157339A1
SPRING SEAT
SEAT - spring
2шт.
33
157344A1
SPRING
- compression
1шт.
34
157345A1
SPRING
- compression
1шт.
35
157338A1
CAP
RETAINER - spring seat
1шт.
36
154623A1
O-RING
- spool
2шт.
37
NSS
NOT SOLD SEPARAT
BODY - control valve
1шт.
Выбрано товаров: 40
