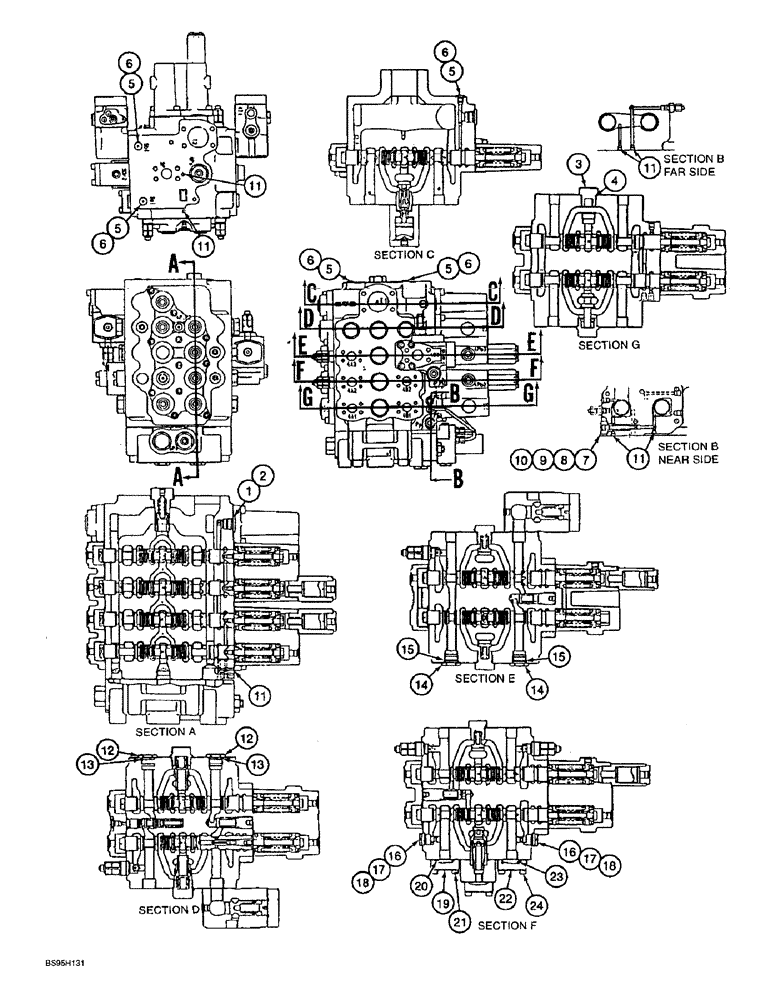

Запчасти Case 9060B (8-180) - 163643A1 AND 171225A1 CONTROL VALVES, PLUGS AND COVERS (08) - HYDRAULICS

163643A1

VALVE

ASSEMBLY - control, P.I.N. EAC0601026, parts list Figures 8-178 thru 8-198, includes: Refs. 1 - 24

1шт.

171225A1

VALVE

ASSEMBLY - control, parts list Figures 8-178 thru 8-198, includes: Refs. 1 - 24, Start Serial: EAC0601027

1шт.

1

163970A1

PLUG

- port, includes: Ref. 2

1шт.

2

154503A1

O-RING

- plug (not shown)

1шт.

3

157361A1

PLUG

- port, includes: Ref. 4

1шт.

4

154539A1

O-RING

- plug

1шт.

5

163972A1

PLUG

- port, includes: Ref. 6

3шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

- (not shown)

1шт.

7

163973A1

PLUG

- port, special, includes: Refs. 8 - 10

1шт.

8

154451A1

O-RING

- plug (not shown)

1шт.

9

154471A1

O-RING

- plug (not shown)

1шт.

10

154487A1

O-RING

- plug (not shown)

1шт.

11

151022A1

PLUG

- hex socket, special

7шт.

12

155453A1

PLUG

- port

2шт.

13

154523A1

O-RING

- plug

1шт.

14

155453A1

PLUG

- port

2шт.

15

154523A1

O-RING

- plug

1шт.

155438A1

PLUG

- port, special, with rings, includes: Refs. 16 - 18

2шт.

16

160369A1

PLUG

- port, special, without rings

1шт.

17

155223A1

O-RING

- plug

1шт.

17a

160368A1

BACK-UP RING

RING - backup, not shown

1шт.

18

160370A1

O-RING

- plug

1шт.

19

156278A1

COVER

PLATE - auxiliary port cover

1шт.

20

164447A1

O-RING

- plate

1шт.

21

160288A1

BOLT,Hex Skt

BOLT - hex socket, special

4шт.

22

156278A1

COVER

PLATE - auxiliary port cover

1шт.

23

164447A1

O-RING

- plate

1шт.

24

160288A1

BOLT,Hex Skt

BOLT - hex socket, special

4шт.
